Laminated Sheet

Leading Manufacturer & Exporters of different types electrical laminated sheets, such as 3025 phenolic cotton cloth laminate sheet, FR4/G10 epoxycloth laminate sheet, 3240 epoxy glass cloth laminate sheet, etc. They are most used for making insulators, electrical winding insulation, winding wire coating insulation, electrical base, shell, motor, switch baseplate, etc. All the electrical insulation materials can be customized according to your need.

We entertain enquiries from international markets.
Product Price :Get Latest Price

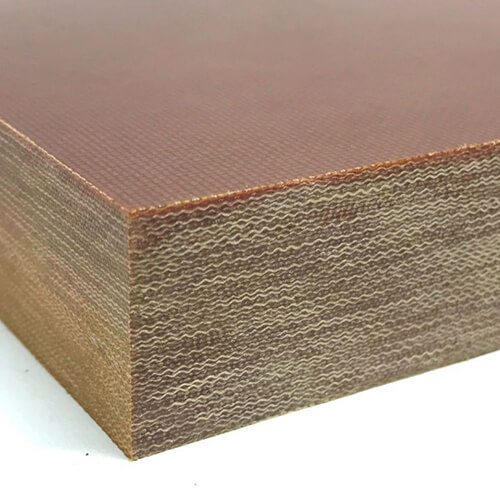

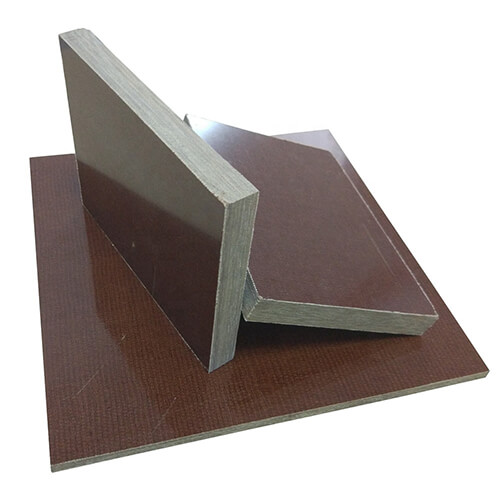

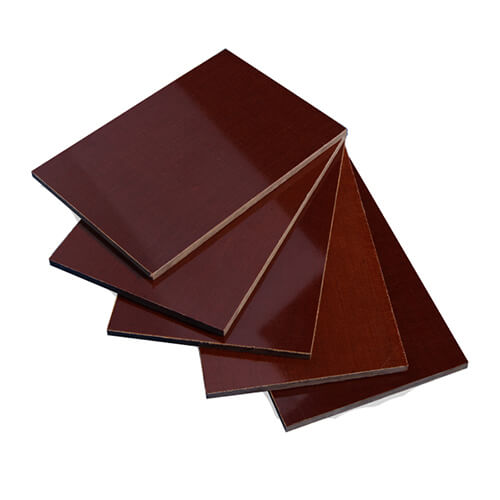

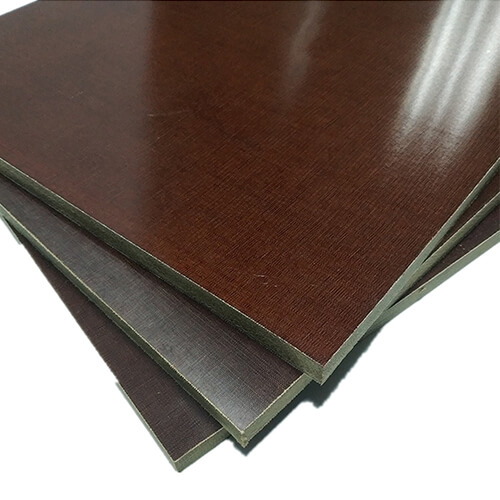

3025 Phenolic Cotton Cloth Laminate Sheet Product Details:

The phenolic cotton cloth laminated sheet is also called phenolic paper laminated sheet or phenolic laminated sheet cover, which is a laminated material made by hot pressing of cotton cloths impregnated with a thermosetting phenol-formaldehyde-based binder. The heat resistance rating is E. It has high mechanical properties, oil resistance, and certain dielectric properties.


Additional Information:

Type: Insulation sheet

Material: Cotton cloth and phenolic resin

Thickness: 0.5-120mm

Sheet dimension: 980×1980mm, 1000mm×2000mm;1020X2040mm

Insulation class: class B (120℃)

Application With certain mechanical performance and electric performance for machine, motors and electrical apparatus ,as well as transformer oil.

Product Price :Get Latest Price

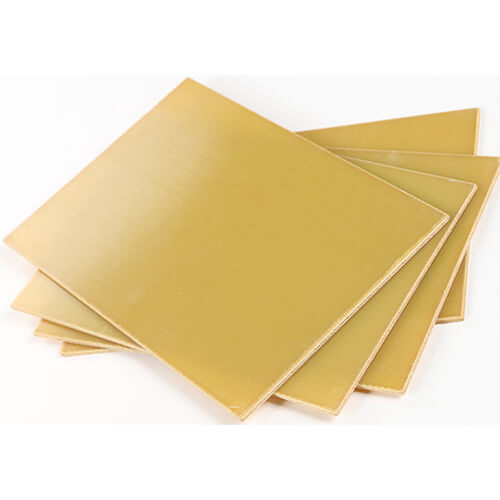

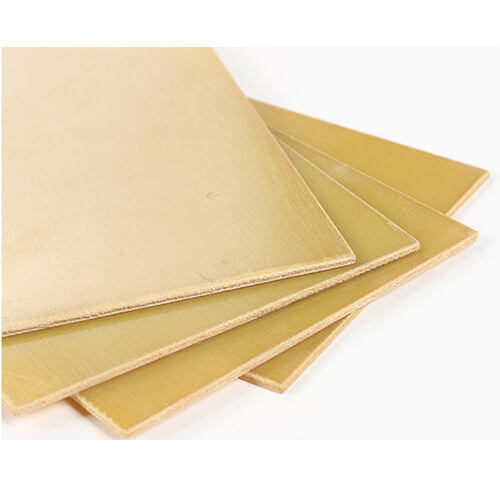

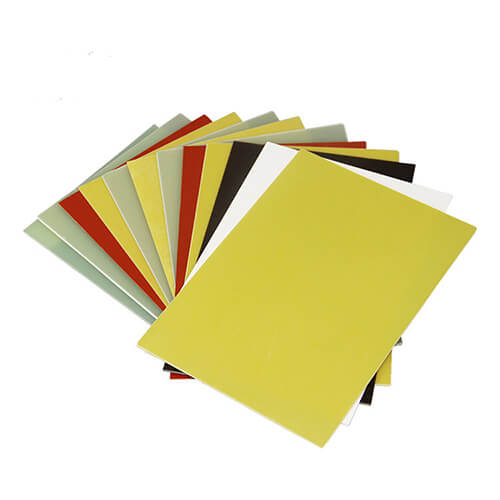

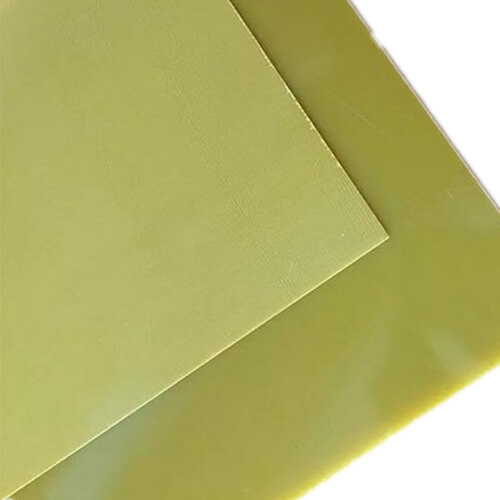

3240 Epoxyglass Cloth Laminate Sheet Product Details:

3240 Epoxy glass cloth laminated sheet is made of alkali-free E-glass cloth impregnated with epoxy resin by processing under heat and pressure. It has high mechanical performance under medium temperature, stable electrical properties under high temperature. It is one of the most popular insulation laminate sheets.

Additional Information:

        Type:  Insulation Tape

        Thickness: 0.5-120mm

        Sheet dimension: 980mm×1980mm, 1000mm×2000mm

        Heat resistance: B class ( 130℃)

        Material: alkali-free fiberglass cloth

        Application: Insulators, Electrical Winding Insulation, Motor, Switch Baseplate

Product Price :Get Latest Price

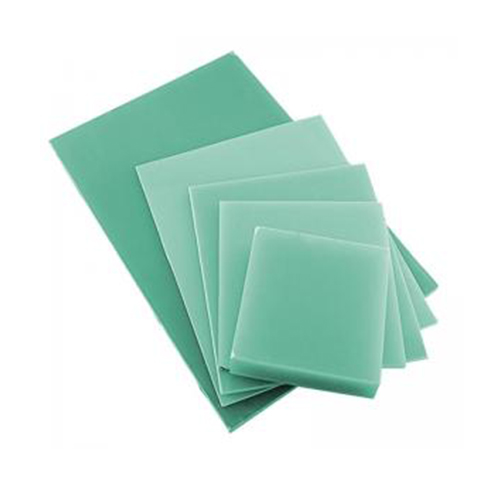

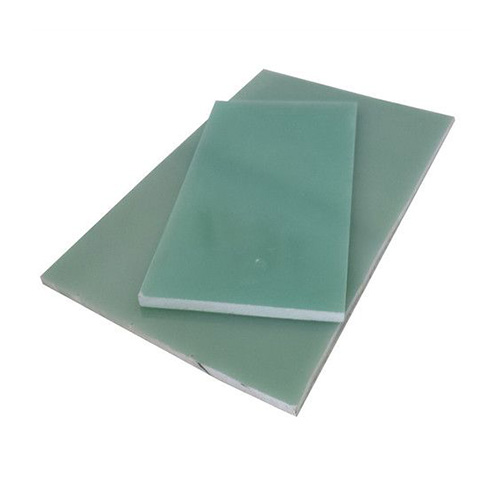

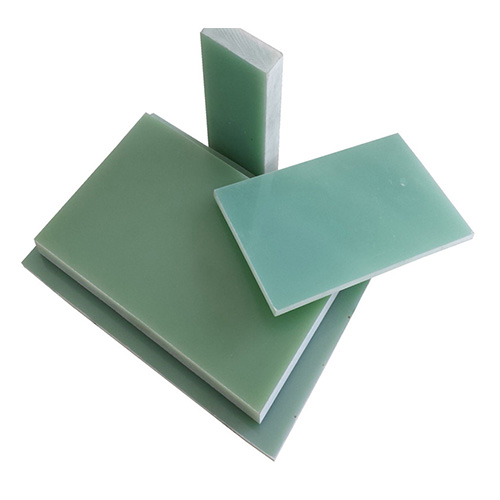

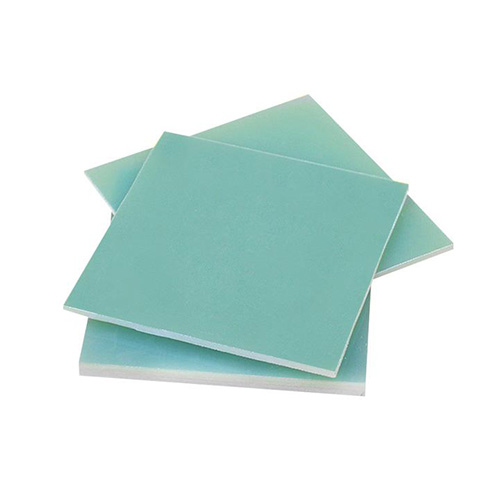

FR4/G10 Epoxy Cloth Laminate Sheet Product Details:

FR-4/G10 epoxy cloth laminate sheet or epoxy fiberglass cloth laminate sheet is a plate-like laminated product formed by electronic grade fiberglass cloth impregnated with epoxy resin and fire retardant under hot pressing of high temperature and pressure. It has high mechanical property and dielectric property, good heat, and moisture resistance, as well as strong mechanical processing property. It is a widely used insulation laminate sheet.

Additional Information

Type: Insulation Tape

Insulation class:B glass(130°C)

Color: green

Thickness: 0.1-50mm

Sheet dimension: 1020mm×1220mm, 1000×2000mm

Application: used In motor, electrical equipment for insulation structure parts, soft plate reinforcement and various kinds of machine parts, etc

Product Price :Get Latest Price

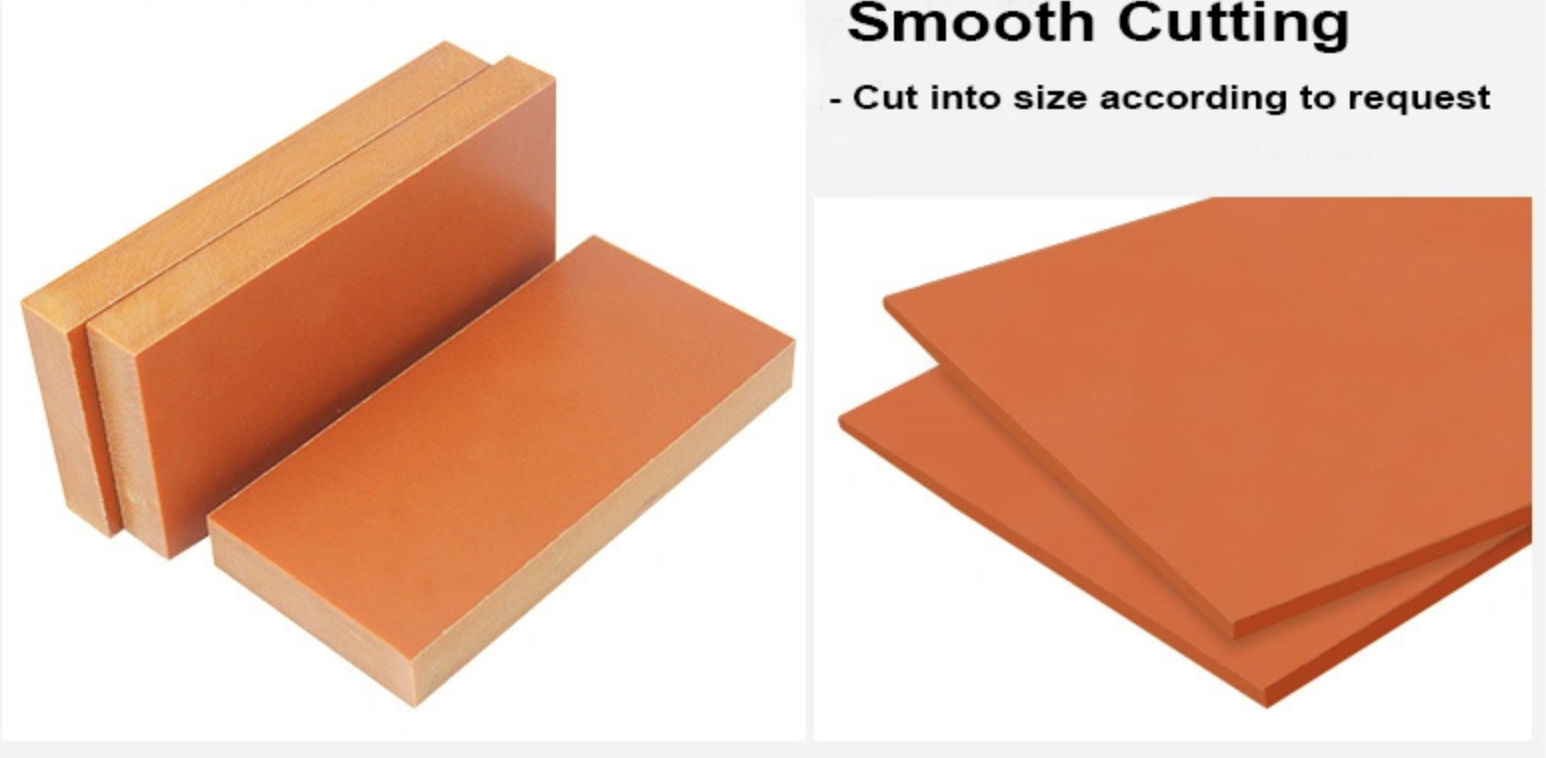

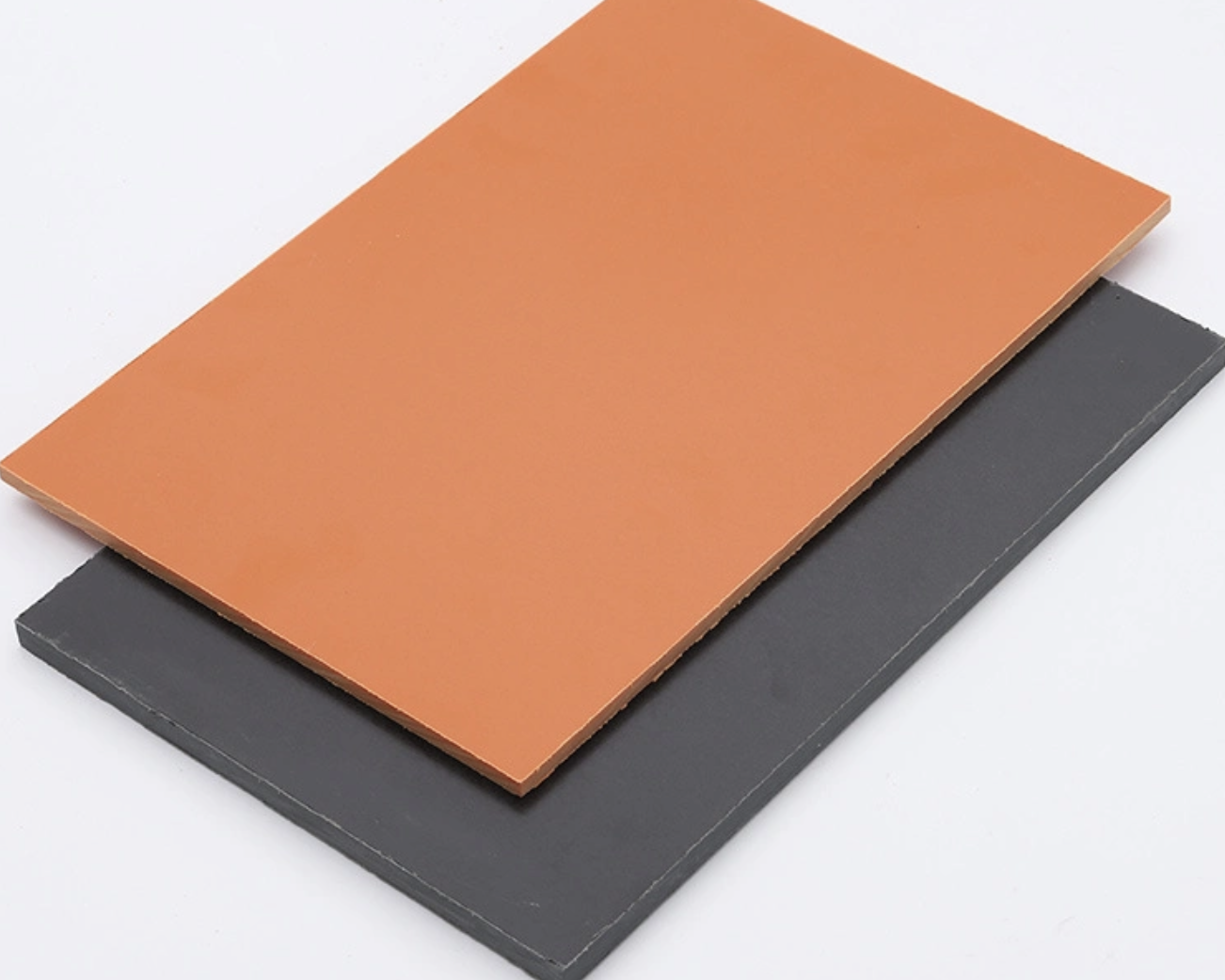

3021 phenolic paper sheet Product Details:

Type: insulation sheet

Material: paper and phenolic resin

Thickness(mm): 0.5-100mm

Sheet Size: 1030mmX2040mm, 1220mmx2440mm

1220mmx2200mm, also can be customized

Heat-resitance: E class 120degree

Color: orange, black

Package: Pallet
