Transformer Laminated Wood Components

Custom machined laminated wood components are widely used in oil immersed transformers as structural insulating parts. They offer good mechanical strength, electrical insulation performance, and reliable dimensional stability. We manufacture various laminated wood components according to drawings, samples, or technical requirements for transformer support, clamping, spacing, positioning, and insulation applications.

Product Description

Custom machined laminated wood components are important structural insulation parts used in oil immersed transformers. They are designed to provide reliable mechanical support and electrical insulation in transformer internal assemblies.

Our laminated wood components are manufactured from high quality densified laminated wood and can be customized according to customer drawings, samples, or technical requirements. These parts are commonly used in transformer coil support structures, lead support systems, core support areas, clamping assemblies, and other positions where both insulation performance and mechanical strength are required.

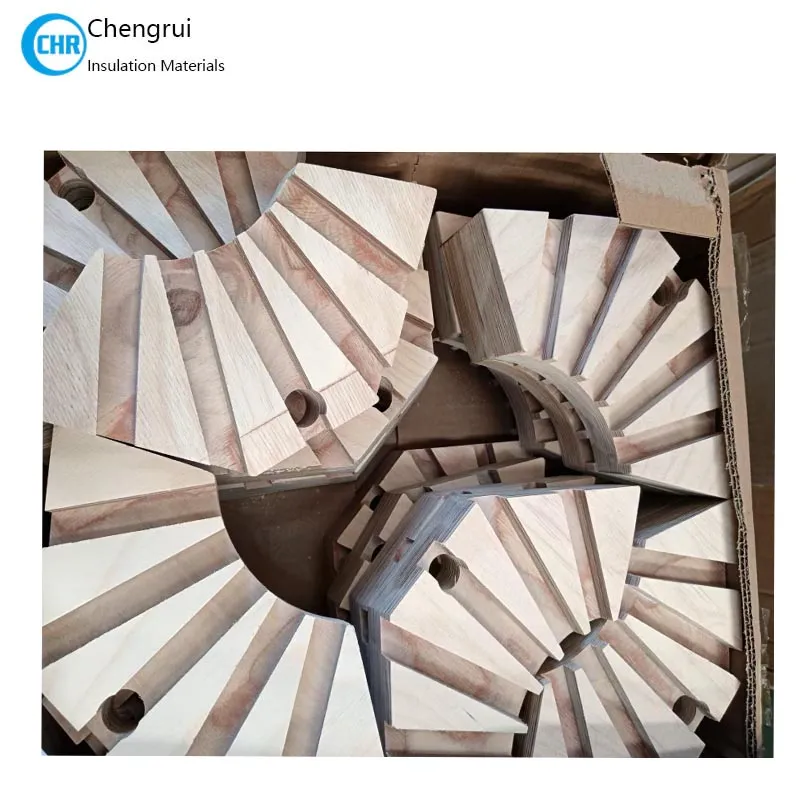

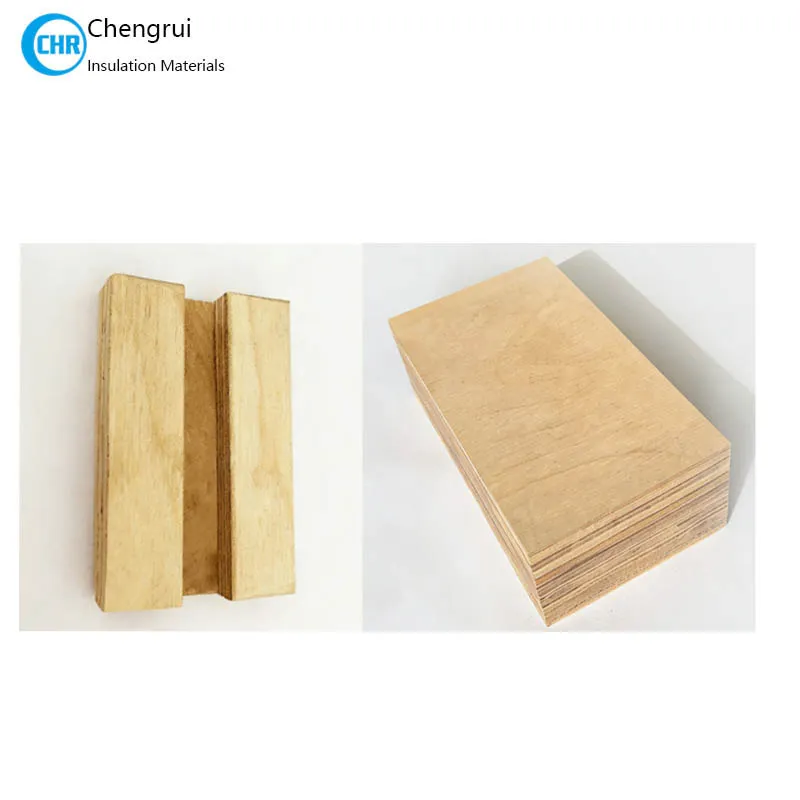

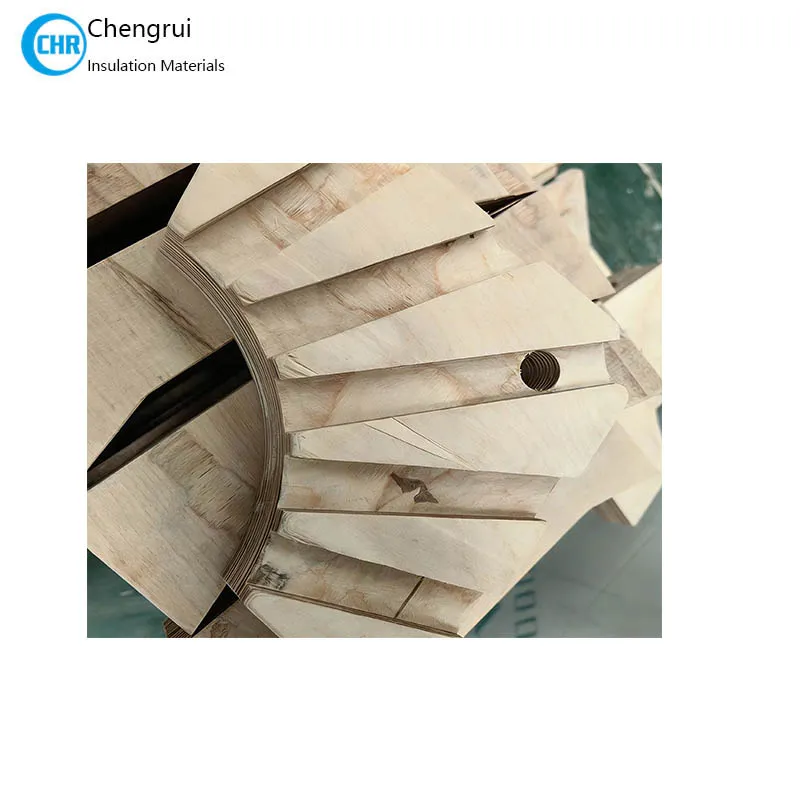

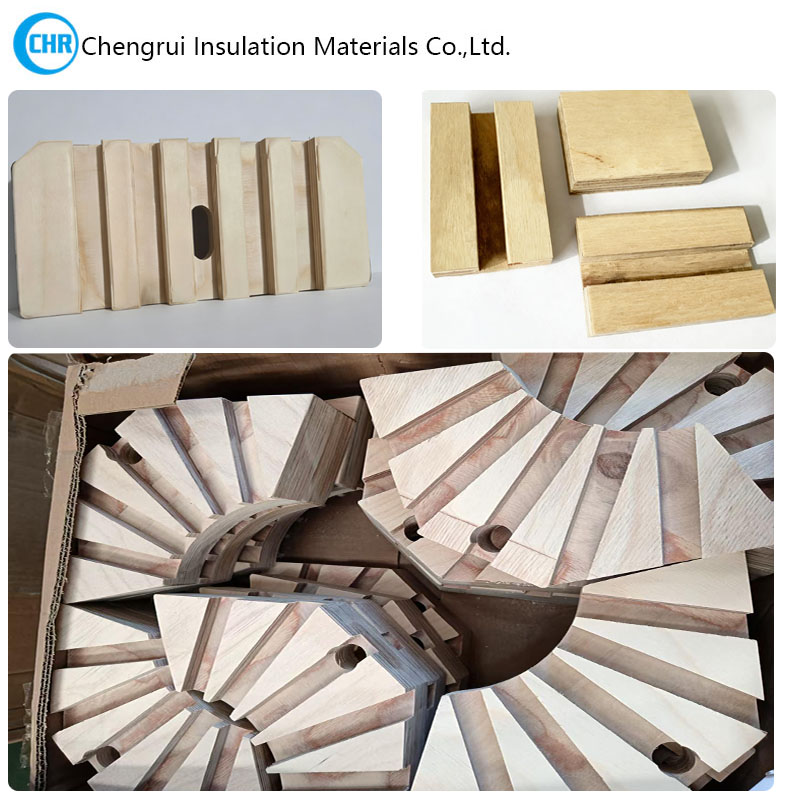

We can produce a wide range of custom laminated wood components, including laminated wood clamping blocks, pressure plates, lead support blocks, core backing plates, spacer blocks, support parts, segmented parts, and other special machined structural components. Different processing requirements such as cutting, drilling, slotting, grooving, chamfering, and CNC machining can be handled based on the product design.

Our custom laminated wood components are suitable for transformer applications that require stable performance, precise dimensions, and dependable quality. With experience in transformer insulation materials and fabricated insulation parts, we can support both standard products and customized solutions for different transformer designs.

OEM service and drawing-based production are available. Customers are welcome to send drawings, samples, or specifications for quotation.

Main Features:

• Good mechanical strength

• Reliable electrical insulation performance

• Suitable for oil immersed transformer applications

• Good dimensional stability

• Custom machining according to drawings or samples

• Available in different shapes, sizes, thicknesses, and structures

• Suitable for clamping, supporting, spacing, and positioning purposes

• OEM and customized production available

Product Name: Custom Machined Laminated Wood Components

Material: Densified Laminated Wood

Color: Natural wood color

Processing Type: Cutting, drilling, grooving, chamfering, slotting, CNC machining

Shape: Customized according to drawings or samples

Thickness: Customized

Size: Customized

Application: Transformer structural insulation and support parts

Custom machined laminated wood components are widely used in:

Oil immersed transformers

Power transformers

Distribution transformers

Transformer coil support structures

Transformer insulation support systems

Transformer structural insulation assemblies

Why Choose Us

We have experience in transformer insulation materials and fabricated insulation parts. In addition to supplying laminated wood sheets, we also provide custom machined laminated wood components for different transformer applications. We can support customer projects with stable quality, flexible customization, and professional export service.

FAQ

Q1: What are laminated wood components mainly used for?

A: Laminated wood components are mainly used in oil immersed transformers as structural insulation parts. They are commonly used for clamping, supporting, spacing, positioning, and insulating applications inside transformer assemblies.

Q2: Can you manufacture laminated wood components according to drawings?

A: Yes. We can produce custom machined laminated wood components according to customer drawings, samples, or detailed specifications.

Q3: What kinds of laminated wood components can you supply?

A: We can supply laminated wood clamping blocks, pressure plates, lead support blocks, core backing plates, spacer blocks, support parts, segmented parts, and other custom machined laminated wood components.
