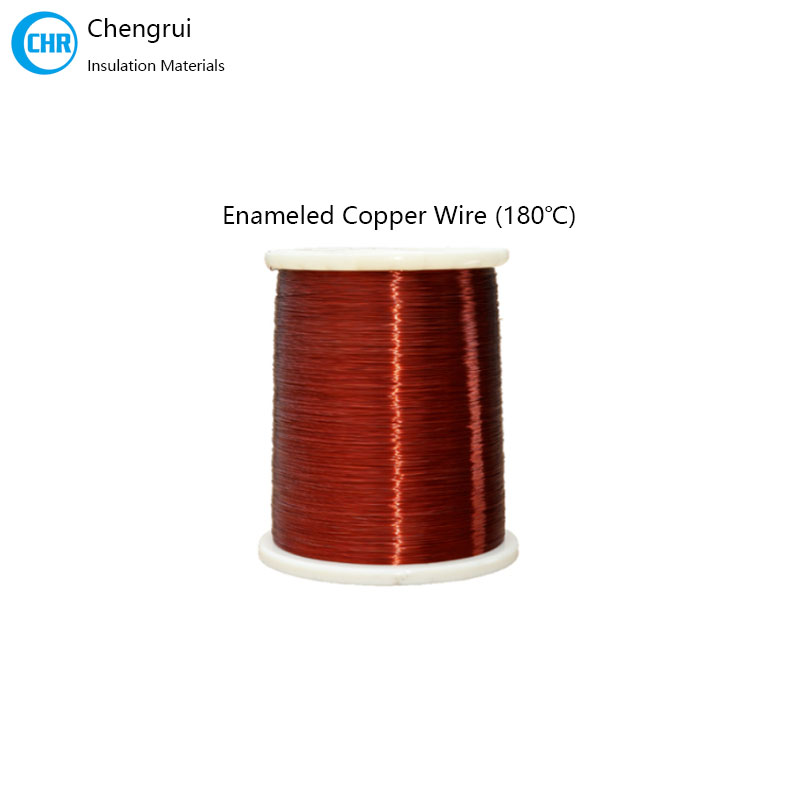

H Class 180℃ Enameled Copper Wire
This enameled copper winding wire can operate continuously at 180℃, exhibiting excellent adhesion, solvent resistance, surface strength, flexibility, and suitability for both manual and mechanical winding.
Specification Range: Φ0.310-5.000mm
Standards: GB/T6109.5-2008; IEC60317
Description
This enameled copper winding wire can operate continuously at 180℃, exhibiting excellent adhesion, solvent resistance, surface strength, flexibility, and suitability for both manual and mechanical winding.
【Specification Range】Φ0.310-5.000mm
【Standards】GB/T6109.5-2008; IEC60317
【Process】180 polyesterimide composite polyester coating, felt coating process.
【Main Raw Materials】Oxygen-free copper rod, Danyang Sida dried insulating varnish.
【Application Areas】Mainly used in H-class medium and small general-purpose motors and electrical instrument coils.
Parameter
| Type | Enameled copper wire | |||||
| Heat-resistance | H Class 180℃ | |||||
| Specification | Φ0.310-5.000mm | |||||
| Standard | GB/T6109.5-2008; IEC60317 | |||||
| For more information, please contact us: [email protected] | ||||||
Online Message
Quick Answers for You
Quick answers to your pressing questions.
Q: How do you ensure consistent quality from batch to batch?
A: We control key parameters such as thickness, dimensions, dielectric performance, mechanical strength and moisture according to the product specification. Batch inspection and traceable test records help maintain consistent performance for repeat orders.
Q: Can you provide samples for testing?
A: Yes. Samples can be provided for material evaluation, testing or production trials. For customized materials, sample availability and lead time depend on the required specification.
Q: What technical documents can you provide?
A: Depending on the material, we can provide ISO, TDS, RoHS, REACH, SGS reports and relevant IEC or UL information for technical evaluation and supplier approval.
Q: What are your MOQ, lead time and shipping options?
A: MOQ and lead time vary by material, specification and processing requirement. Low MOQ and trial order can be accept accordingly. We support international shipments by sea, air and express courier.
Q: Are you a trader or manufacturer?
A: Chengrui combines our own manufacturing capabilities (flexible laminates, insulation sleeving etc) with a qualified partner production network. This allows us to supply a broader range of electrical insulation materials while maintaining specification control, quality inspection and technical support.
