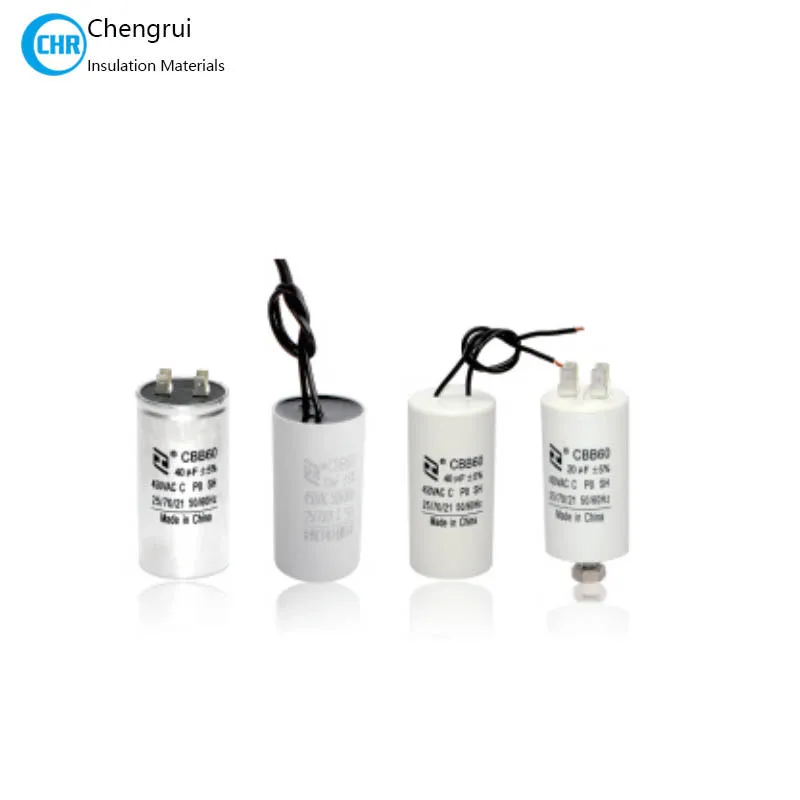

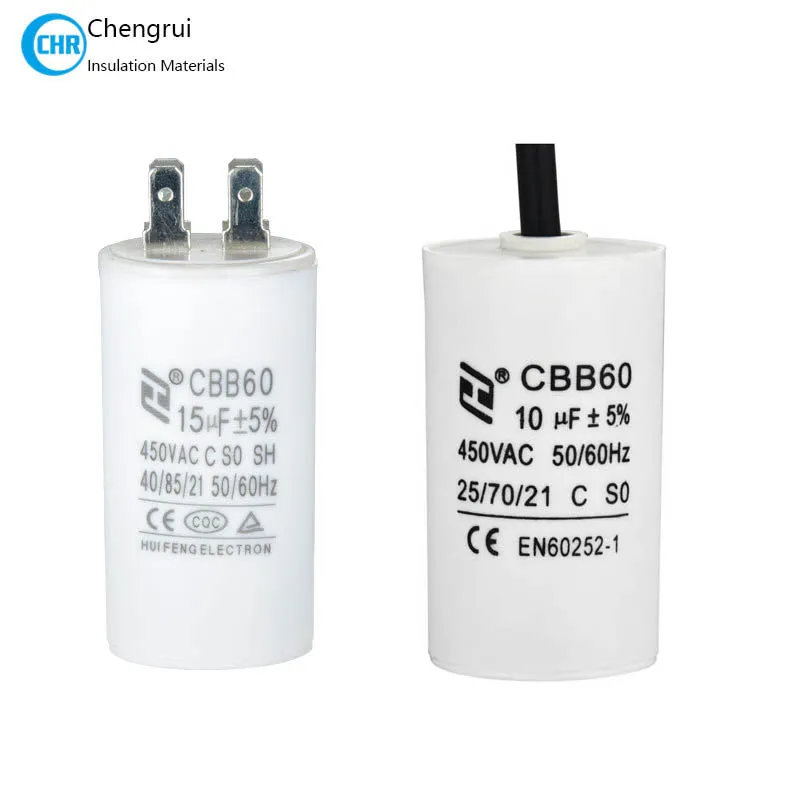

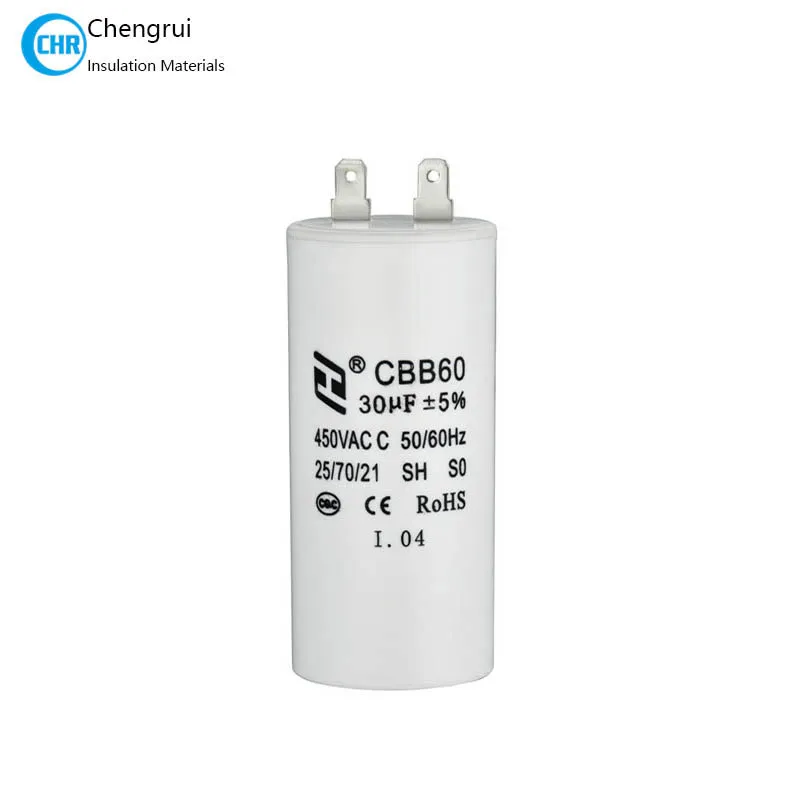

CBB60 Metallic Ployporplene Capactior (Run Capacitor)

Using Al-Zn metallized polypropylene film as the dielectric medium, this capacitor offers a compact structure, low loss, high insulation resistance and stable electrical performance. It is designed for applications that require reliable running performance in single-phase motors and household equipment.

Because of its good self-healing ability, strong over-current endurance and steady operation, CBB60 capacitor is one of the most practical choices for motor run applications.

Key Features

1. Low Dissipation

CBB60 capacitor features low dielectric loss, which helps improve efficiency and maintain stable operation.

2. High Insulation Resistance

The capacitor provides strong insulation performance for reliable long-term use.

3. Good Self-Healing Property

With metallized polypropylene film construction, the capacitor has good self-healing characteristics, which helps improve service reliability.

4. Strong Anti-Striking Current Performance

It can withstand impact current effectively in practical motor operation.

5. Strong Over-Carrier Capacity

The capacitor is designed to handle load fluctuations and maintain stable electrical performance.

6. Stable Electrical Performance

Suitable for continuous running conditions in motor and appliance applications.

Typical Applications

CBB60 metallized polypropylene film capacitor is widely used in:

• water pumps

• cleaning machines

• washing machines

• single-phase household electrical appliances

• single-phase motor running systems

It is especially suitable for equipment that requires stable running performance and reliable capacitor operation during long working cycles.

Product Advantages

Compared with ordinary capacitor designs, CBB60 motor run capacitor offers the following advantages:

• compact and practical structure

• lower power dissipation

• better insulation resistance

• self-healing function

• better resistance to striking current

• stronger overload endurance

• reliable running performance for single-phase motors

These advantages make it a widely used capacitor type for household appliances and light industrial motor applications.

Product Name: CBB60 Metallized Polypropylene Film Capacitor

Capacitor Type: Motor Run Capacitor

Dielectric Medium: Al-Zn Metallized Polypropylene Film

Main Features: Small size, low dissipation, high insulation resistance, self-healing, stable performance

How to Choose the Right CBB60 Capacitor

Before ordering, buyers should confirm the following points:

1. Application Type

Is the capacitor used for a water pump, washing machine, cleaning machine or another single-phase appliance?

2. Motor Requirement

The capacitance and voltage should match the motor design.

3. Installation Space

Since different equipment has different space limits, capacitor dimensions should be checked carefully.

4. Terminal and Mounting Type

Terminal configuration and fixing method should match the equipment structure.

5. Operating Condition

Working temperature, load condition and running stability should all be considered during selection.

FAQ

Q1:What is CBB60 capacitor used for?

A: CBB60 capacitor is mainly used as a motor run capacitor in water pumps, cleaning machines, washing machines and other single-phase household electrical appliances.

Q2: What material is used in CBB60 capacitor?

A: It uses Al-Zn metallized polypropylene film as the dielectric medium.

Q3:What are the advantages of CBB60 capacitor?

A: Its main advantages include small size, low dissipation, high insulation resistance, good self-healing property, strong anti-striking current performance and stable electrical behavior.

Q4:Is CBB60 a start capacitor or run capacitor?

A: CBB60 is generally used as a motor run capacitor.

CBB60 metallized polypropylene film capacitor is a practical and reliable motor run capacitor for water pumps, washing machines, cleaning machines and single-phase household electrical appliances.

With small size, low loss, high insulation resistance, good self-healing property and stable electrical performance, it is widely used in applications that require reliable running performance and long-term stability.
