Composite Insulation Paper

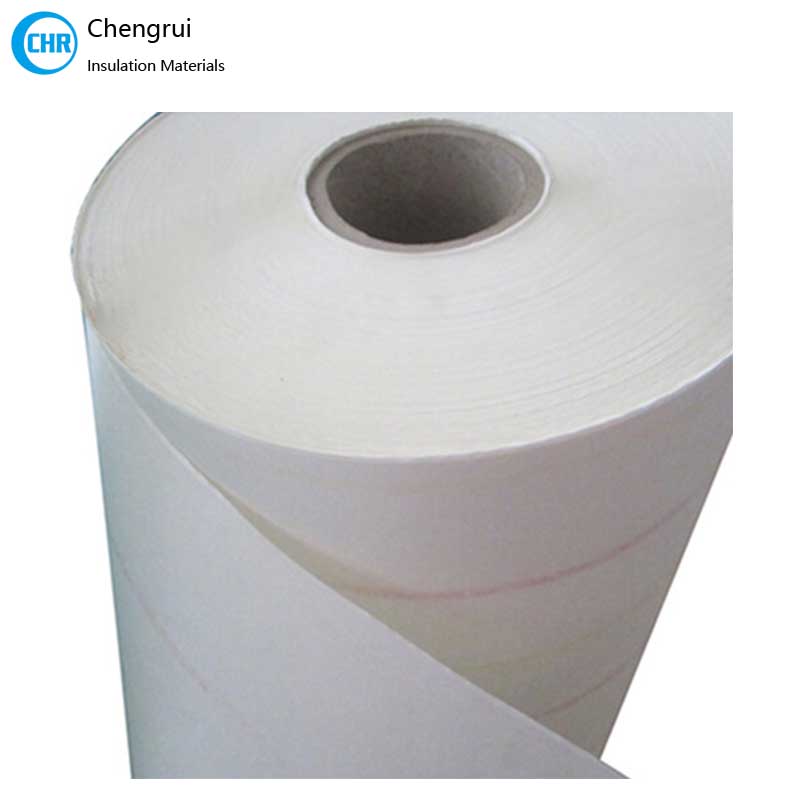

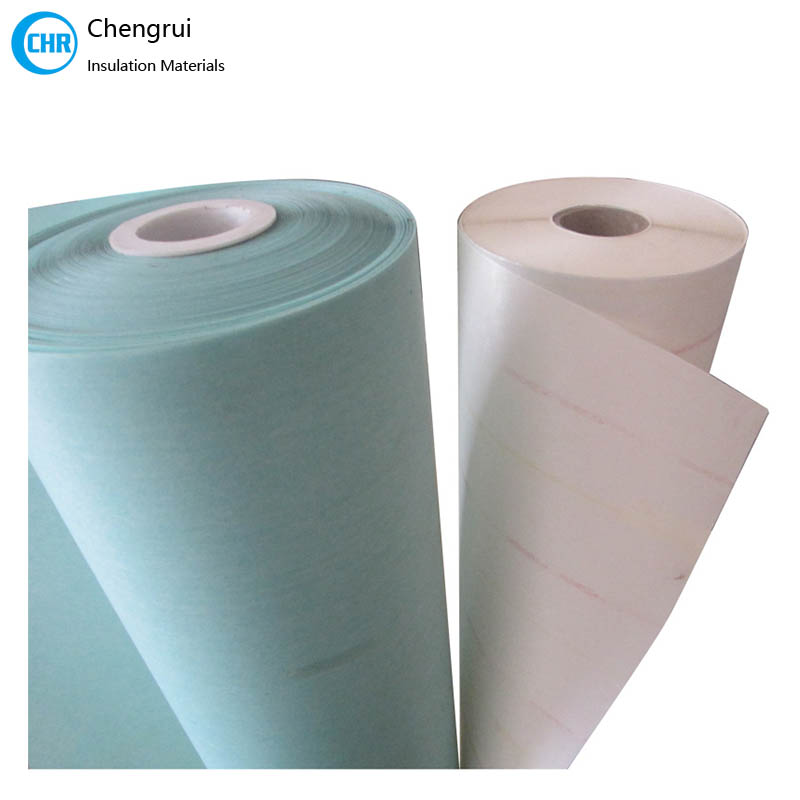

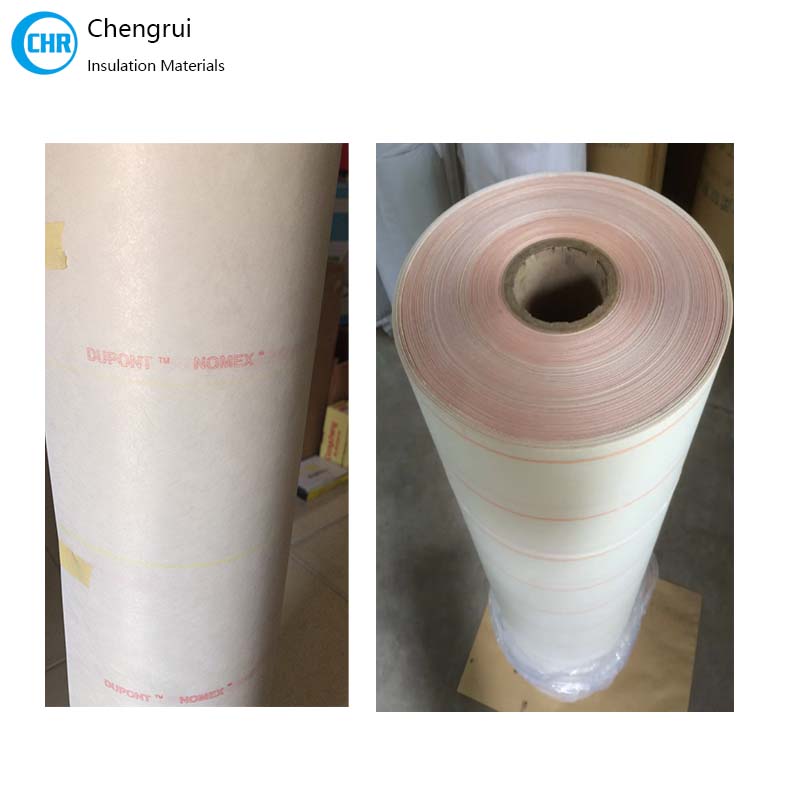

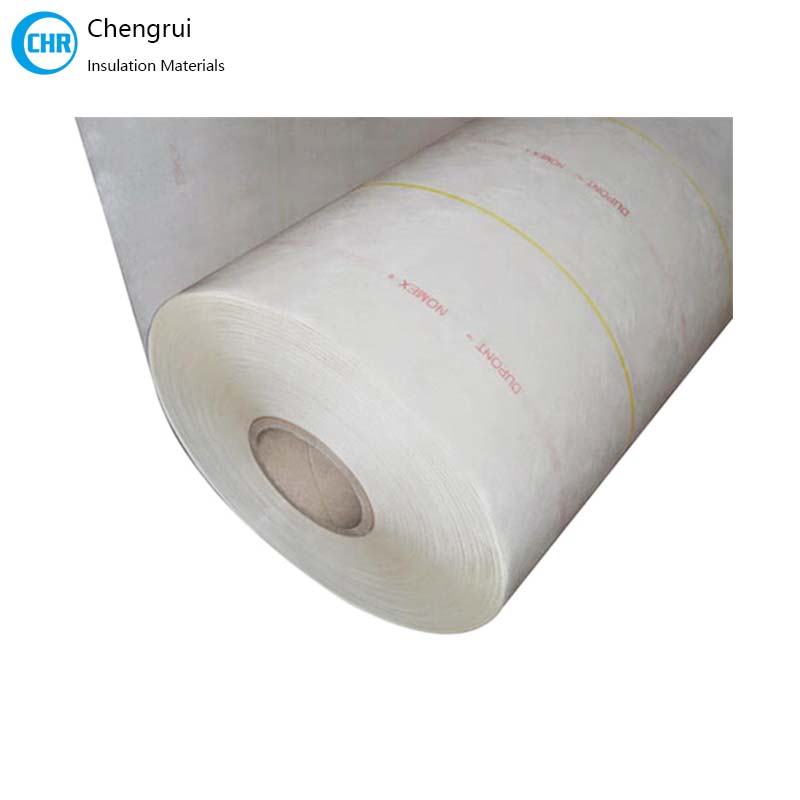

6640 NMN Insulation Paper Nomex Sheet

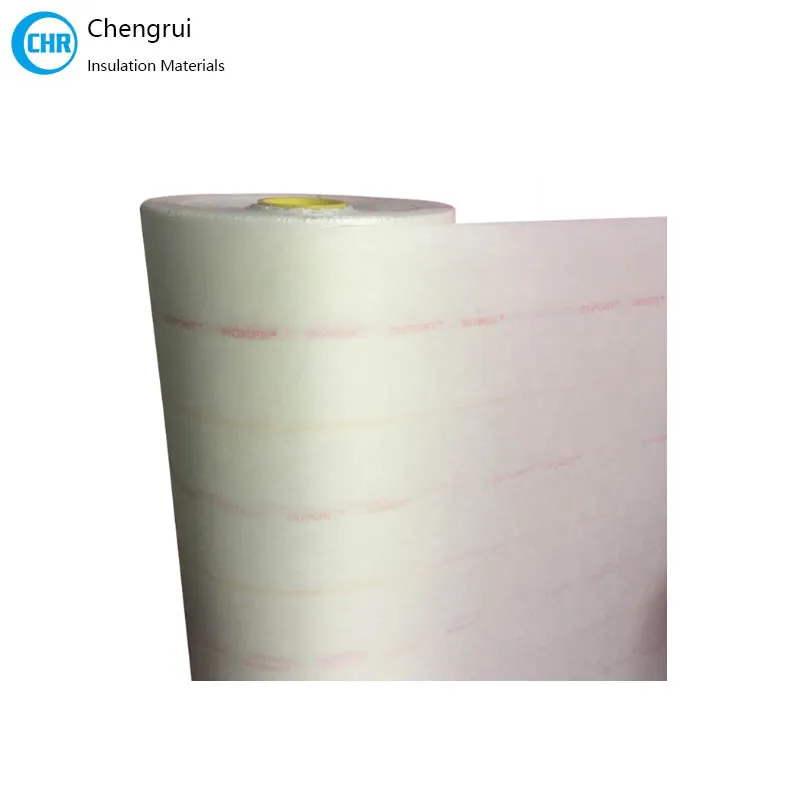

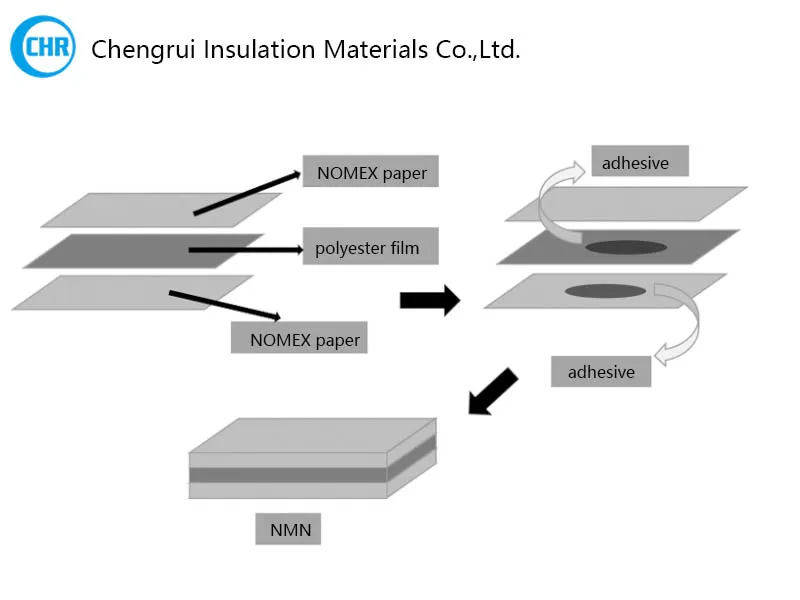

6640 NMN insulation paper or flexible insulation paper is a soft composite insulation material composed of two layers of Nomex paper and one layer of polyester film. This insulation paper shows high thermal resistance, excellent mechanical properties like high tensile strength, and high edge tear resistance and electrical properties, it was designed for automatic insertion machine.
Additional Information
Thickness:0.15mm-0.4mm
Width:914 mm or customized
Color: White with orange line or yellow line
Insulation Class: class F (155℃)
MOQ: 1000kg
Description
6640 NMN Insulation Paper Introduction
6640 NMN insulation paper or flexible insulation paper is a soft composite insulation material composed of two layers of Nomex paper and one layer of polyester film. This insulation paper shows high thermal resistance, excellent mechanical properties like high tensile strength, and high edge tear resistance and electrical properties, it was designed for automatic insertion machine.
Thickness:0.15mm-0.4mm
Width:914 mm or customized
Color: White with orange line or yellow line
Insulation Class: class F (155℃)
6640 NMN Insulation Paper Features
1. Superior thermal properties and mechanical properties.
2. Tearing resistance as well as the excellent dielectric strength from polyester film.
6640 NMN Insulation Paper Applications

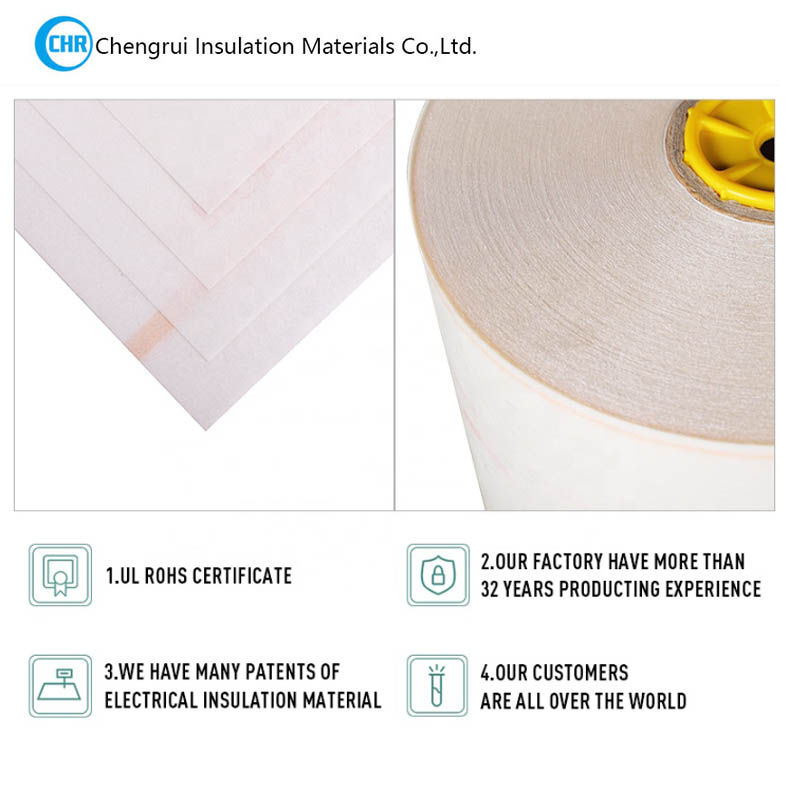

NMN insulation paper is mainly used as a slot liner, slot closure, phase-to-phase, and turn-to-turn insulation in low or medium voltage electrical motors of Class F (155℃) or Class H (180℃) insulation system, also, it's also used as interlayer insulation in transformers and other electrical machines and appliances.
6640 NMN Insulation Paper Specifications
THICKNESS mm | NMN 0.16 | NMN 0.18 | NMN 0.2 | NMN 0.24 | NMN 0.3 | NMN 0.35 | NMN 0.4 | NMN 0.47 | |
Tensile Strength N/10 | MD | 170 | 202 | 234 | 273 | 335 | 403 | 454 | 476 |
TD | 143 | 170 | 210 | 214 | 332 | 407 | 403 | 493 | |
Elogation % | MD | 28 | 31 | 25 | 34 | 50 | 49 | 54 | 51 |
TD | 4 | 52.6 | 40.31 | 46.12 | 81 | 64 | 73 | 87 | |
Breakdown | 12 | 13 | 15 | 16 | 17 | 18 | 22 | 24 |
Parameter
| Type | Insulation Paper | |||||
| Thickness | 0.15mm-0.4mm | |||||
| Width | 914 mm or customized | |||||
| Color | White with orange line or yellow line | |||||
| Insulation Class | class F (155℃) | |||||
| MOQ | 1000kg | |||||
| For more information, please contact us: [email protected] | ||||||
Online Message
Quick Answers for You
Quick answers to your pressing questions.
Q: What international certifications does your insulating paper have?
A: Our products comply with IEC standards and can also provide RoHS environmental certification reports upon customer request. All certification certificates are available upon request.
Q: If I cannot provide complete specifications, can you assist with the selection process?
A: That's exactly what we excel at. Our technical sales team has extensive experience. Please provide your application scenario, operating temperature, voltage level, and other requirements, and we will recommend the most cost-effective and efficient insulation material solution for you.
Q: How about MOQ?
A: The standard minimum order quantity(MOQ) is usually 1000kg. For customized products, the specific quantity can be negotiated.
Q: Can you provide samples for testing?
A: Yes. We are happy to provide free samples to potential customers with specific project needs. Please tell us your specific application and testing requirements so that we can recommend the most suitable model and arrange for sample delivery.
Q: Are you a trader or manufacturer?
A: We are a manufacturer of composite insulating papers (such as DMD and NMN) and insulating sleeves, with our own factory and production lines. At the same time, we have established strong strategic partnerships with other material manufacturers, enabling us to act as your one-stop sourcing consultant, efficiently meeting your diverse product needs.
