Insulation Composite Paper

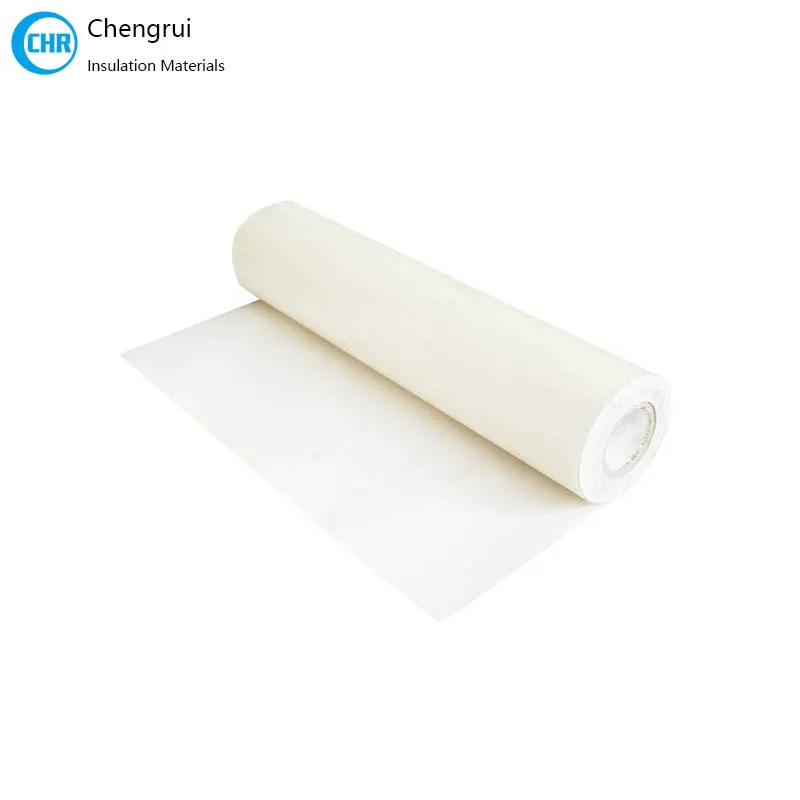

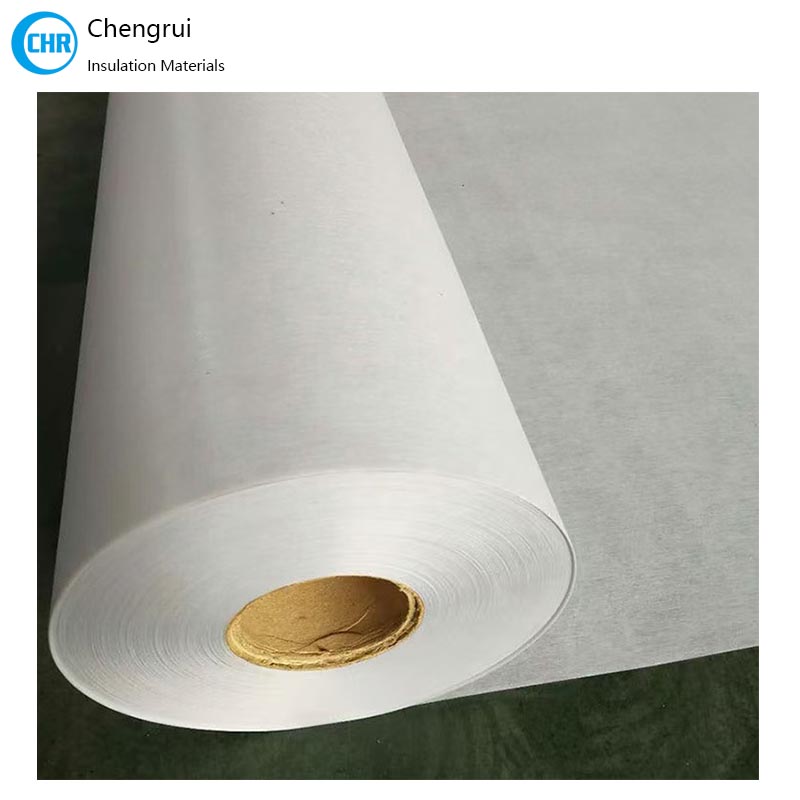

6630-B DMD Electrical Insulation Paper
DMD insulating composite paper is a three-layer flexible insulating material made of polyester film (PET) and polyester fiber nonwoven fabric. It is widely used for insulation protection of electrical equipment such as motors and appliances.
Type: Composite insulation paper
Heat-resistance: B class 130℃
Thickness: 0.17mm, 0.20mm, 0.23mm, 0.25mm, 0.30mm, 0.35mm
Standard Width: 1000mm(Custom widths available)

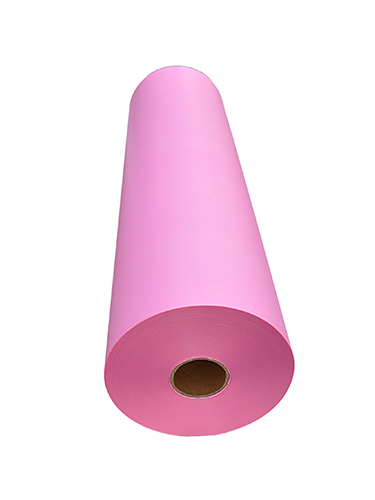

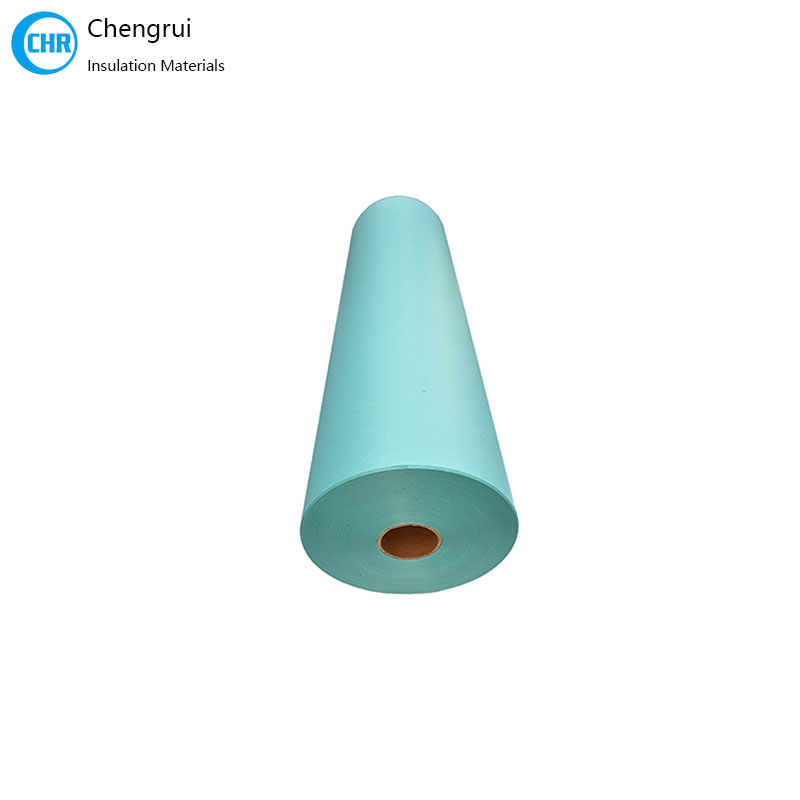

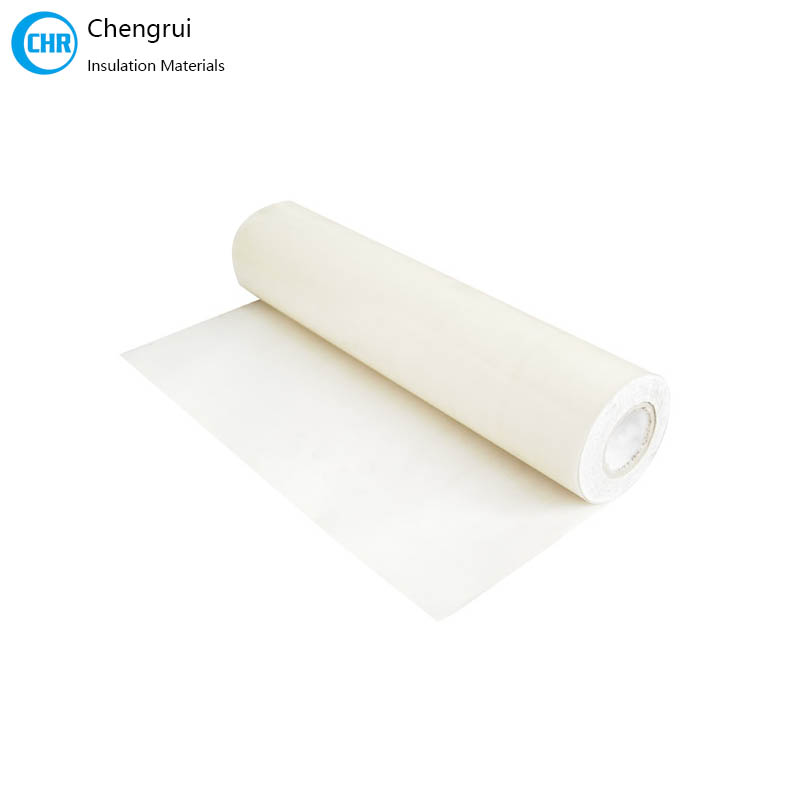

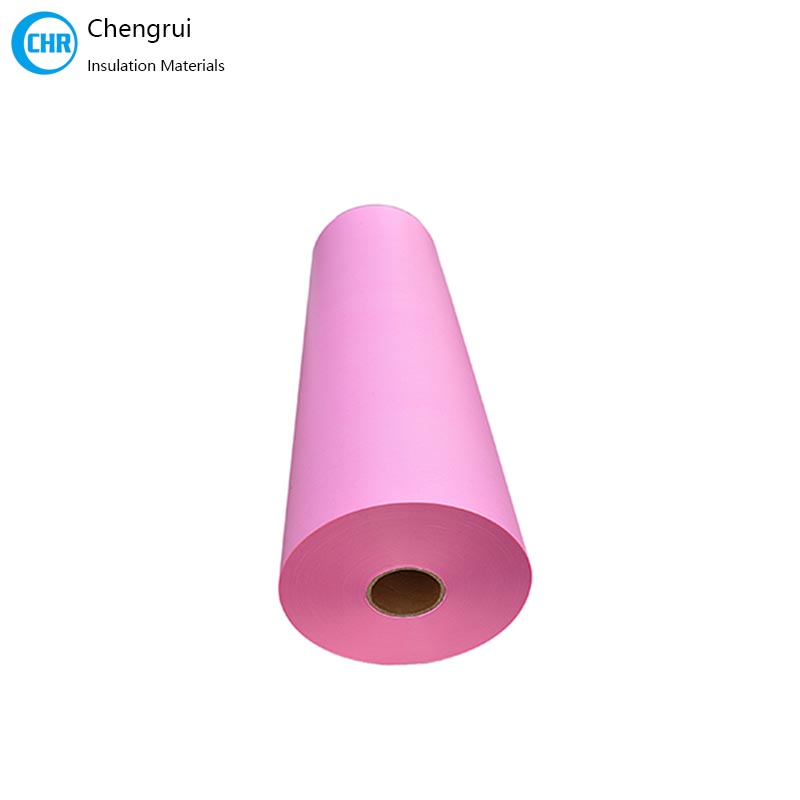

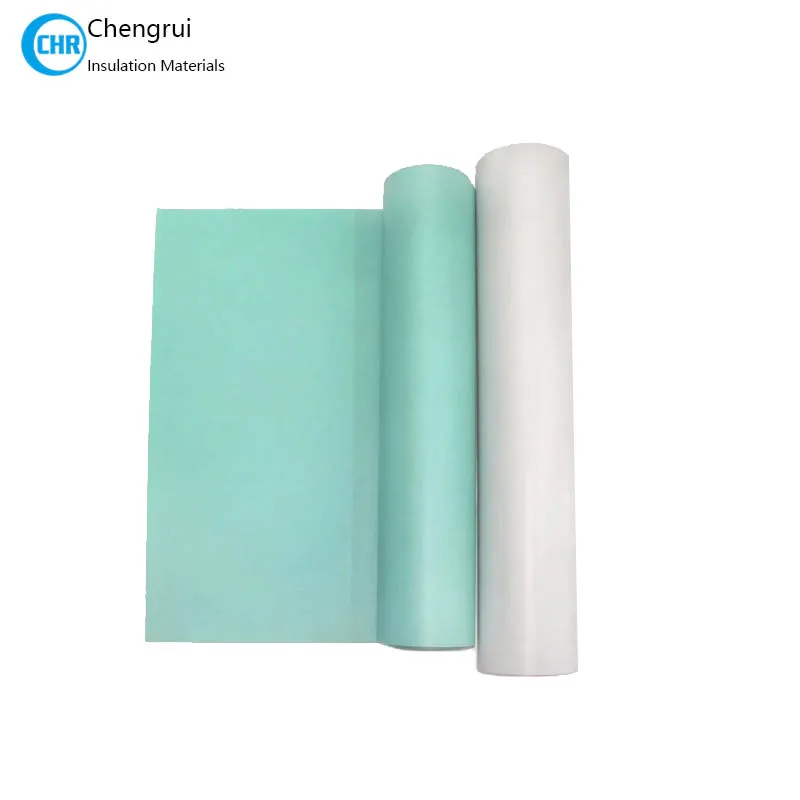

Color: Blue, green, white, pink
Description
6630-B DMD Insulation Paper is a high-performance composite material engineered for demanding electrical insulation applications. It is widely recognized for its balanced dielectric, mechanical, and thermal properties, making it a preferred choice for motor and transformer insulation.
We also supply F Class DMD insulation paper: 6641-F DMD insulation paper
Composition & Manufacturing Process

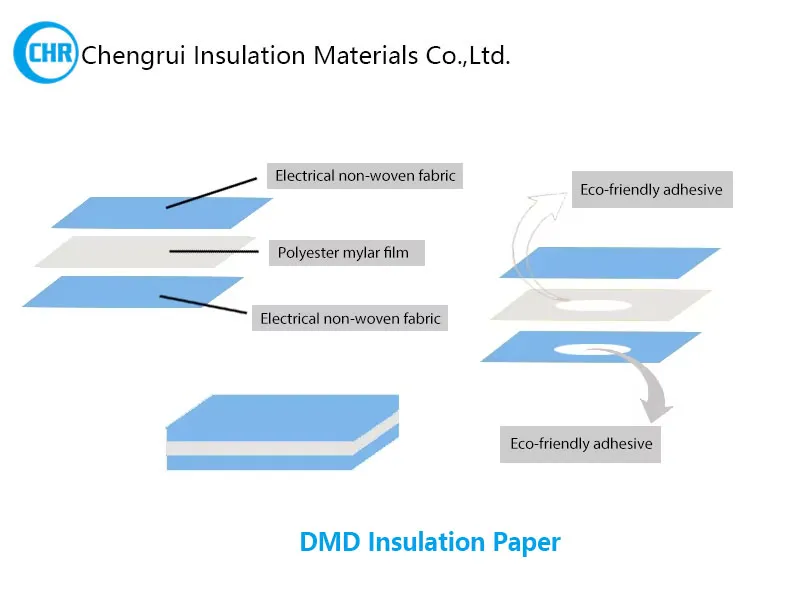

6630-B DMD is manufactured using a precise lamination process that combines three distinct layers:
D-Layer: Polyester non-woven fabric
M-Layer: Polyester film (Mylar/PET film)
D-Layer: Polyester non-woven fabric
The middle layer is a polyester film, and the outer layer is a polyester fiber nonwoven fabric, forming a three-layer structure of "film-adhesive-nonwoven fabric".
Performance Advantages:
The unique three-layer structure provides 6630-B DMD with outstanding comprehensive properties:
1.Excellent Electrical Properties: The central polyester film layer ensures high dielectric strength and reliable insulation resistance, effectively preventing electrical breakdown 2.Good Mechanical Strength: The dual non-woven fabric layers provide exceptional tear resistance, tensile strength, and durability, withstanding rigorous manufacturing processes
3.Thermal Stability: Rated for Class B (130°C) temperature applications, maintaining performance under continuous thermal stress
4.Superior Impregnation Capability: The porous non-woven layers allow excellent penetration of varnishes and resins during vacuum pressure impregnation processes
Application:
6630-B DMD Insulation Paper finds extensive use in various electrical applications:
★Motor Insulation: Widely used as slot liners, phase insulation, and turn-to-turn insulation in electric motors
★Transformer Applications: Serves as inter-layer insulation in dry-type transformers and other electrical transformers
★General Electrical Equipment: Used in generators, alternators, and various electrical appliances requiring reliable insulation
Parameter
| Type | Insulation Paper | |||||
| Thickness | 0.15mm-0.4mm | |||||
| Width | 1000mm or customized | |||||
| Color | White, green, blue, and pink | |||||
| Insulation Class | B class (130°C) | |||||
| MOQ | 1000kg | |||||
| For more information, please contact us: [email protected] | ||||||
