Leading Manufacturer & Exporters of different types electrical insulation rods, such as mica tape, mica sheet, mica glass tape, mica insulation tape, mica insulation sheet, mica glass sheets, mica plate sheets, etc. They are most used for making insulators, electrical winding insulation, winding wire coating insulation, electrical base, shell, motor, switch baseplate, etc. All the electrical insulation materials can be custom according to your need.

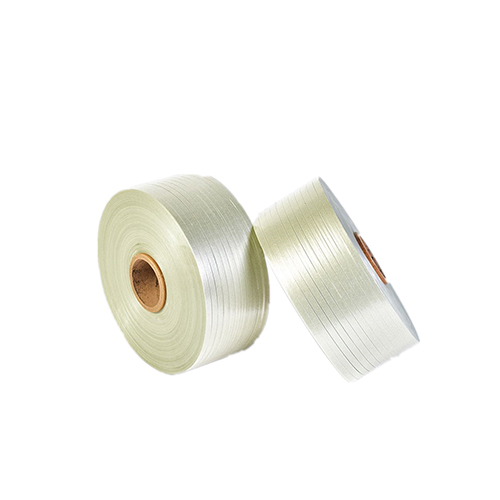

Mica Insulation Tape Product Details:
Mica tape is a kind of tape insulating material, which is made of mica paper or powder-mica paper, electronic alkali-free glass fiber cloth, impregnated with high-temperature silicone resin or TUNG-MA epoxy adhesive, and laminated, baked, and sliced.
Additional Information
Type: Mica tape
Material: Mica
Thickness: 0.08mm-0.18mm
Width: 4.5mm-1000mm
Length: 500m 1000m 2000m. Traverse wound spools optional
Standard cores: 52mm 54mm 76mm 120mm
Application: Insulators, Electrical Winding Insulation, Electrical Base, Shell, Motor, Insulating Varnish, Switch Baseplate, Household Electric Appliances and Metallurgy
Mica Insulation Sheet Product Details:
Mica insulation sheet or mica sheet electrical insulation is a type of mica lamination designed for providing outstanding electrical insulation at high temperature, which consists of approximately 90% Muscovite(or Phlogopite)and 10% temperature resistant silicone resin.
Additional Information
Type: Mica sheet
Thickness:0.1mm 0.15mm 0.2mm-20mm
Size:1000*600mm
Thickness: below 2.0mm can be punched, while above 2.0mm can be machined by agreement.
Application: Insulators, Winding Wire Coating Insulation, Electrical Base, Shell, Insulating Varnish
