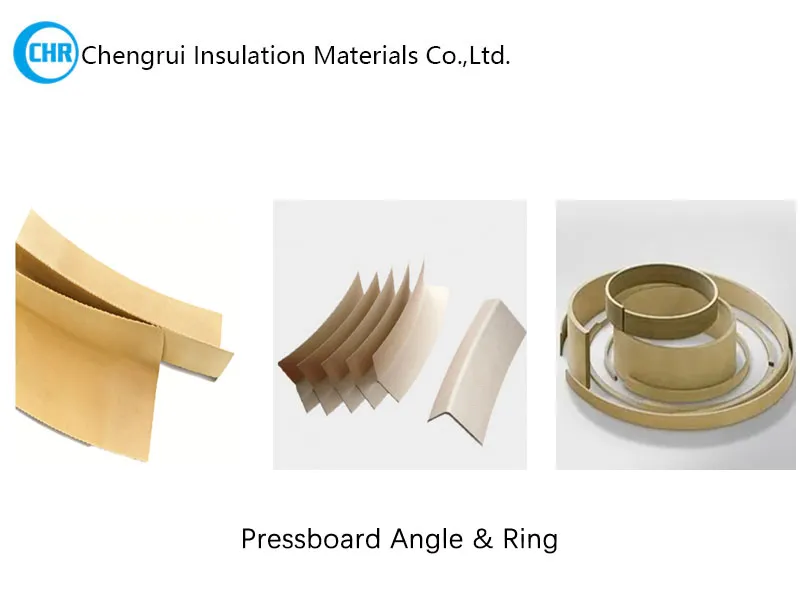

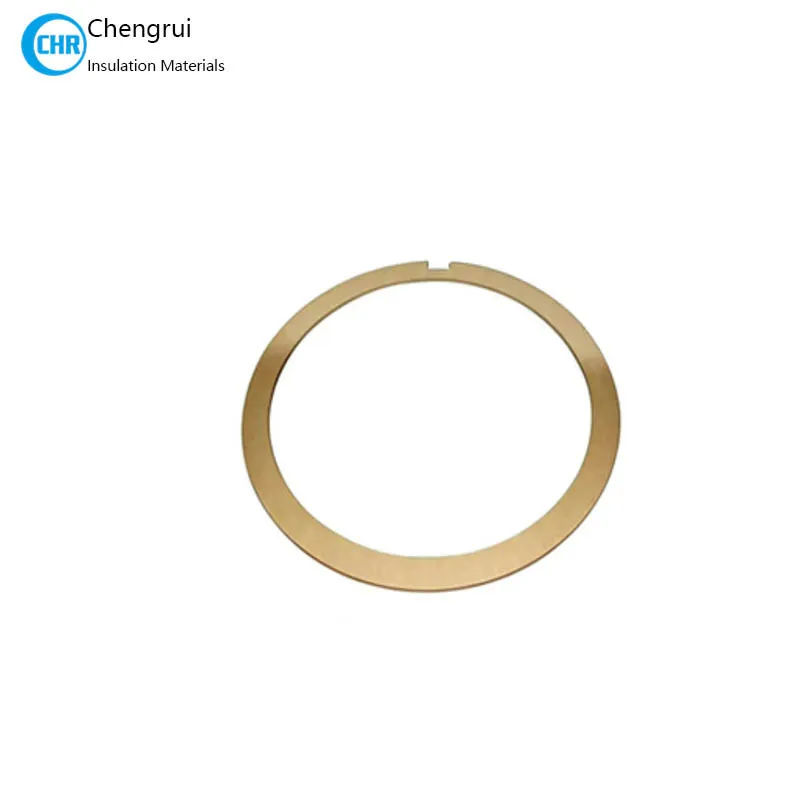

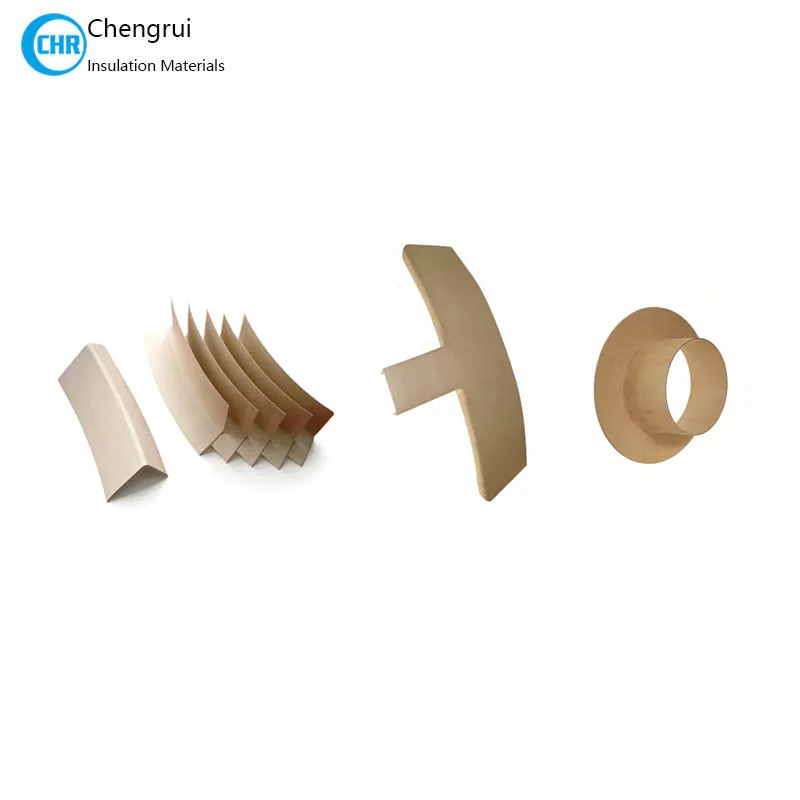

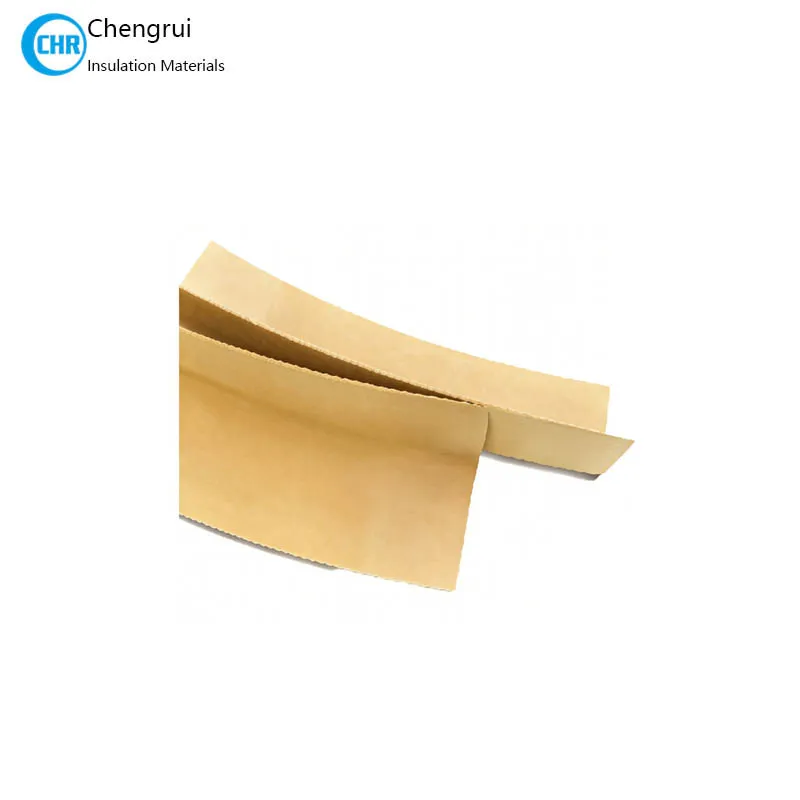

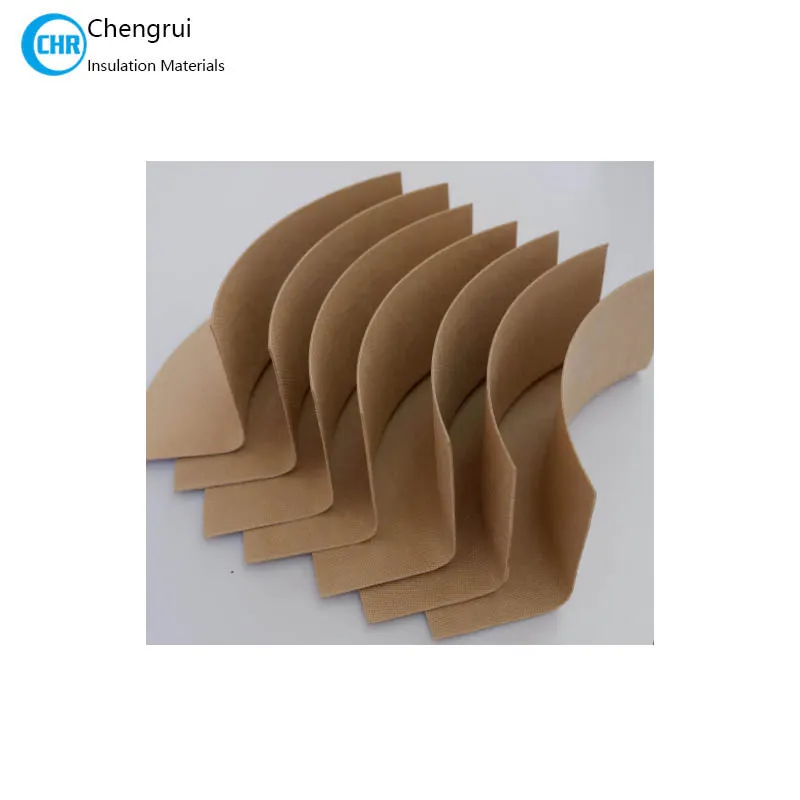

Transformer Insulation Pressboard Angle Rings

Transformer pressboard angle rings are rigid insulation components used in winding end insulation structures to maintain electrical clearance, support coil geometry and improve the overall insulation layout inside oil-filled transformers, distribution transformers and power transformers. They are usually produced according to drawings or confirmed dimensions and are selected where dimensional accuracy, oil compatibility and mechanical stability are important.

We supply insulation rings and angle rings made from high-grade electrical insulating materials according to customer drawings, technical requirements, or sample parts. With extensive export experience in transformer insulation materials, we understand the quality expectations of transformer factories, repair companies, and industrial importers.

Main Features

• Excellent electrical insulation performance

• Good mechanical strength and dimensional stability

• Suitable for oil-immersed transformer applications

• Precision machining and clean finishing

• Custom sizes, shapes, and thicknesses available

• OEM and drawing-based production supported

• Reliable quality for transformer manufacturing and assembly

Material Options

According to transformer design and customer requirements, pressboard angle rings can be produced from suitable structural insulation materials such as:

• electrical insulation pressboard

• transformer insulation board

• laminated structural insulation materials

• customized insulating composite materials

Material selection can be adjusted based on voltage class, insulation design, oil compatibility, and mechanical performance requirements.

Applications

Our transformer insulation rings and angle rings are widely used in:

• Power transformers

• Distribution transformers

• Oil-immersed transformers

• Transformer winding insulation systems

• Coil end insulation support structures

• Electrical insulation assembly parts

Custom Manufacturing Service

We provide custom transformer insulation angle rings and insulation rings based on your drawings or specifications. Our production team can support:

1. Custom inner diameter and outer diameter

2. Different angles, heights, and thicknesses

3. Machined or fabricated insulation parts

4. Small trial orders and bulk production

5. Export packing for international shipment

Whether you need standard transformer insulation parts or custom-designed electrical fabricated components, we can help deliver stable quality and consistent supply.

Request a Quote

Looking for a dependable transformer insulation angle ring manufacturer or insulation ring supplier? Contact us with your drawing, dimensions, material requirement, or application details. We will provide a suitable solution and quotation for your transformer insulation project.
