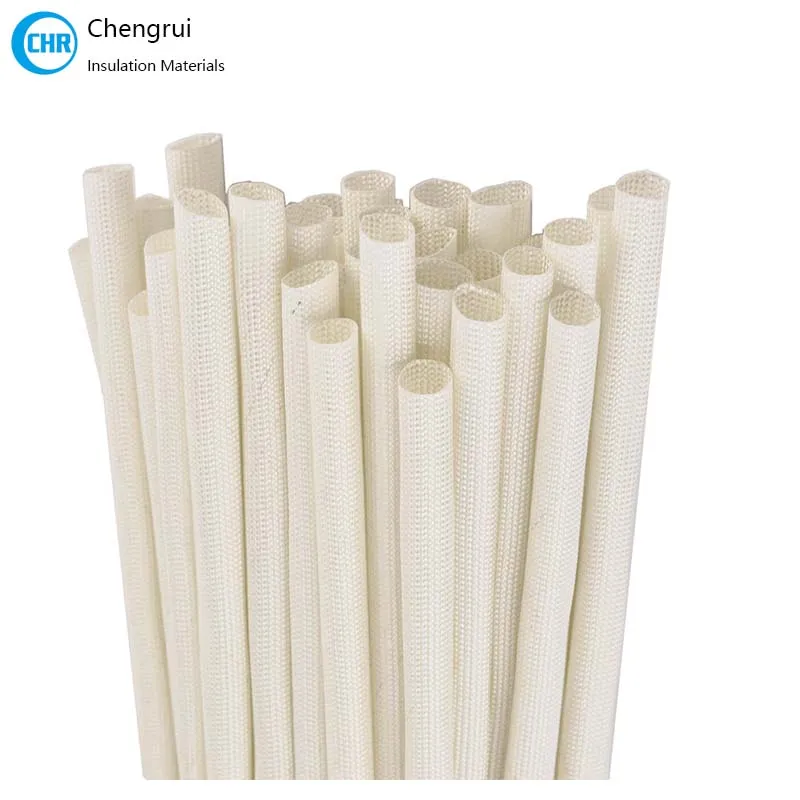

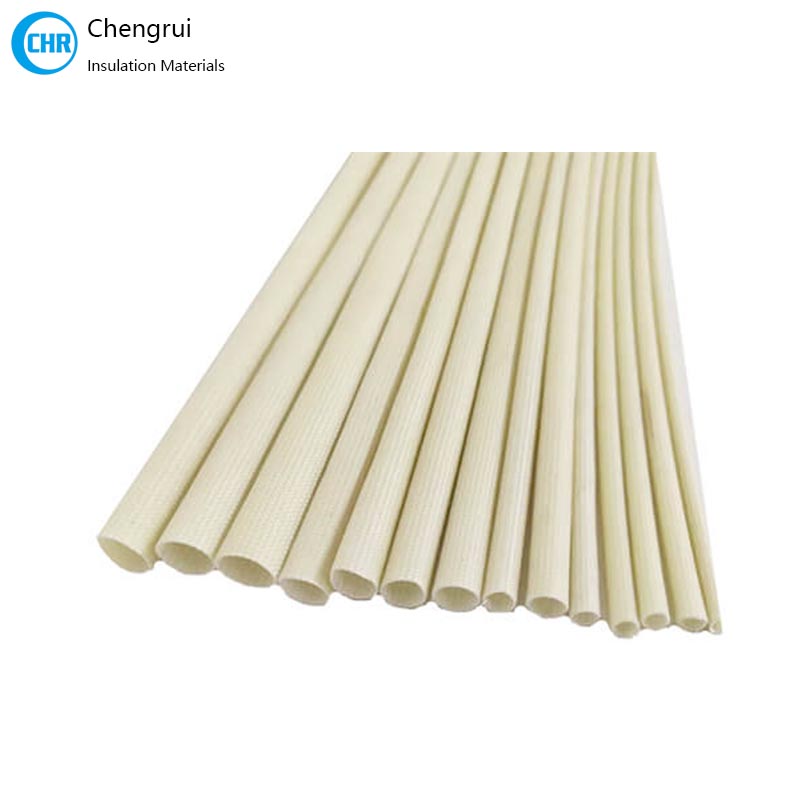

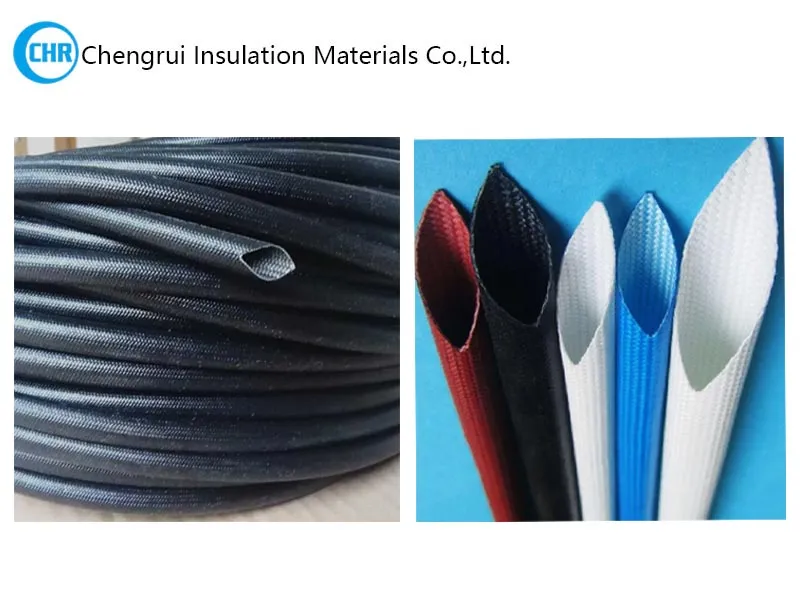

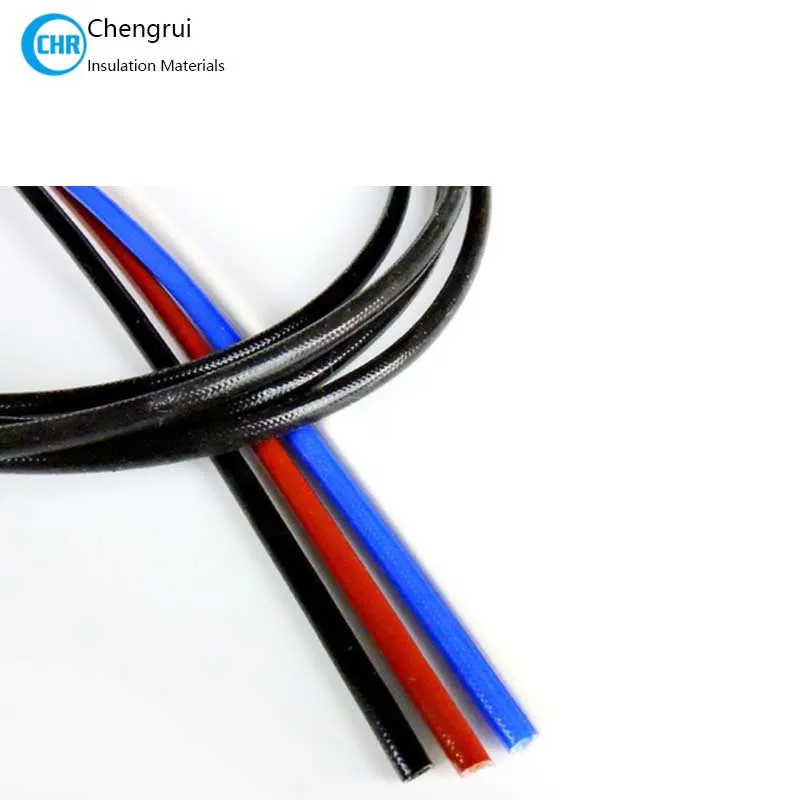

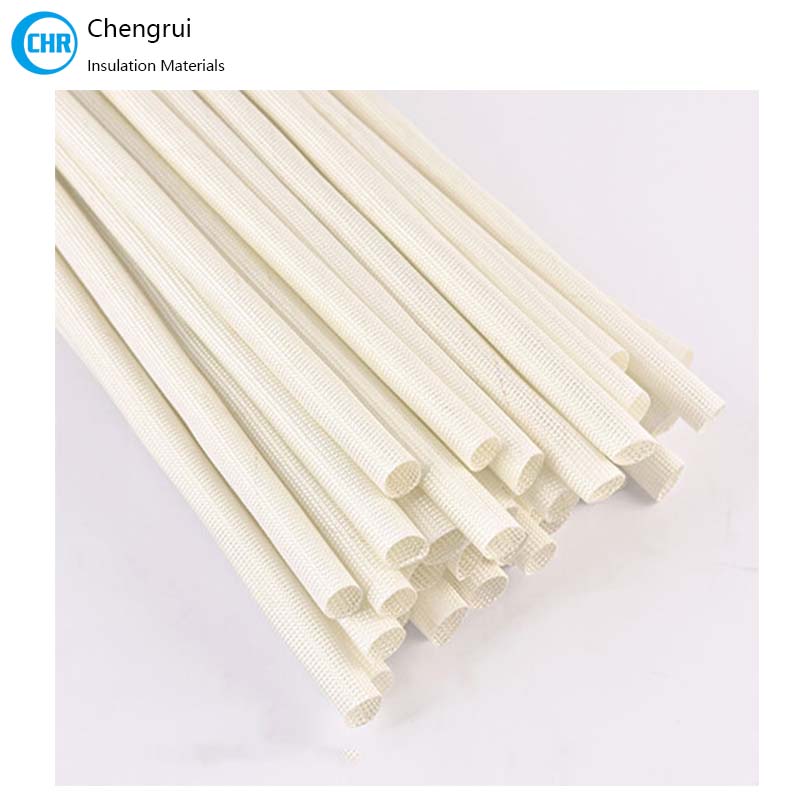

2753 Silicone Coated Fiberglass Sleeving

2753 Silicone Coated Fiberglass Sleeve is Self-extinguishing sleeve which is designed for superior insulation and mechanical protection. Constructed from non-alkali fiberglass braid and coated with a resilient silicone resin, it offers high dielectric strength, with breakdown voltage options of 2.5kV, 4kV, and 7kV. It features excellent stiffness, cold resistance, and a self-extinguishing time of less than 10 seconds.

Chengrui Insulation supplies silicone coated fiberglass sleeves in various diameters 1 - 30mm, lengths, and thicknesses, supporting custom orders, bulk supply, and sample testing for global customers.

• Base Material: Fiberglass braided sleeving

• Coating: Self-extinguishing silicone resin varnish

Features and Advantages:

★High Temperature Resistance: Continuous operating temperature up to 180℃ (H-class), capable of withstanding even higher temperatures for short periods.

★Self-Extinguishing Flame Retardant: Meets flame retardant standards, with a self-extinguishing time of less than 10 seconds, forming insulating ash after combustion, and is non-conductive.

★Excellent Electrical Insulation: Provides high breakdown voltage (selectable 2.5kV, 4kV, and 7kV classes), with reliable insulation performance.

★Combining Mechanical Strength and Flexibility: Possesses good wear and tear resistance, maintaining a certain degree of rigidity and cold bending toughness, facilitating wiring and bundling in confined spaces.

It is specifically designed for the insulation and mechanical protection of wires, cables, and hoses under high-temperature and high-electrical-stress environments. It can operate stably within a temperature range of -70℃ to 200℃ (up to higher temperatures) and belongs to Class H insulation materials.

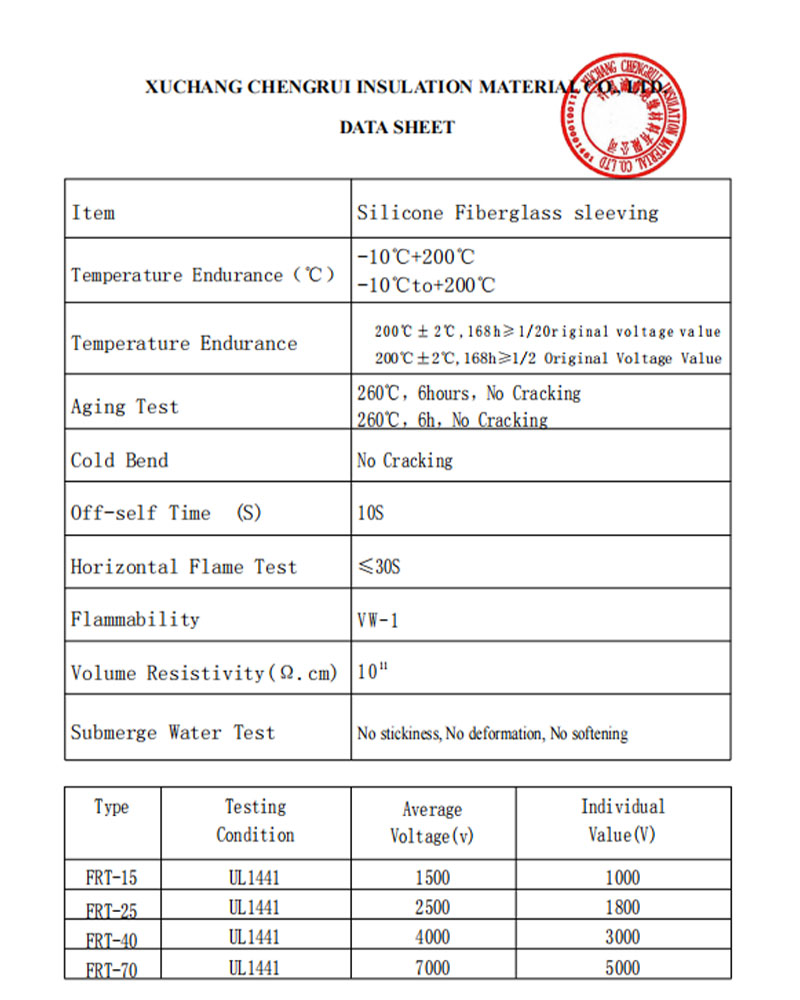

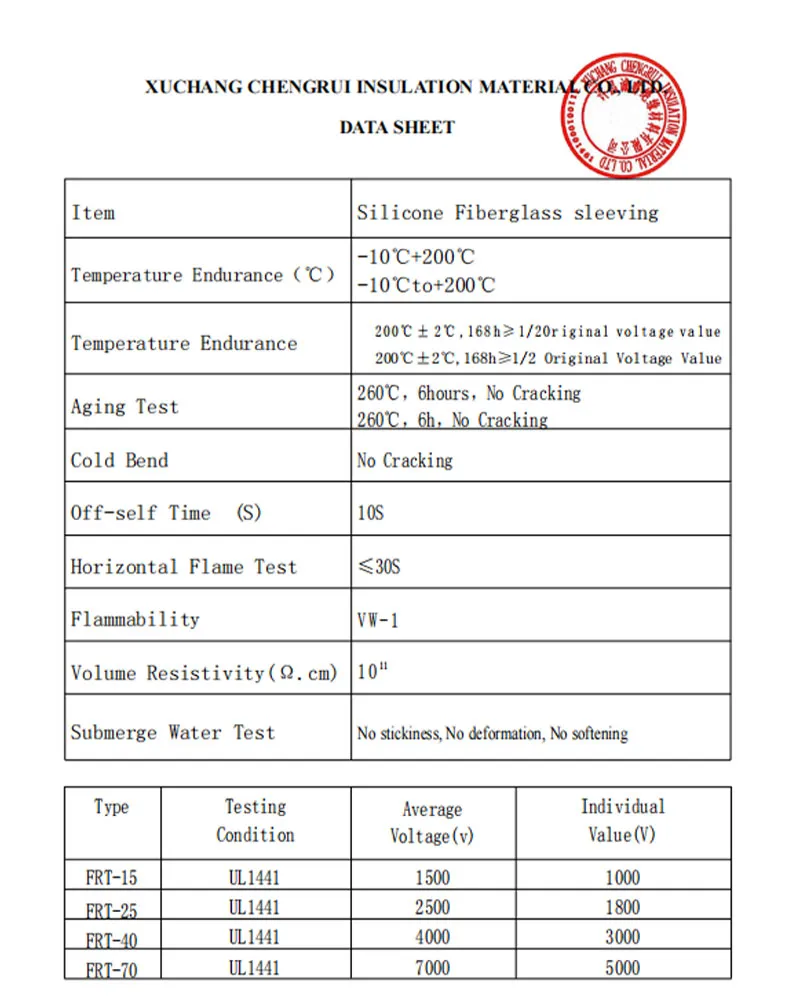

Technical Specifications:

• Temperature Class: H (180℃)

• Self-extinguishing Time: <10 seconds

• Dielectric Properties: Excellent

• Mechanical Characteristics: Good stiffness and cold resistance

Standard Specifications of Fiberglass Braided Sleeving With Silicone Resin:

• Length: 1000mm (±10mm) or customized

• Colors: White, red, yellow, brown, black or special colors upon request

Standards and Certifications

Complies with flame retardant standards (such as NEMA TF-2, UL 1441 VW-1, etc.)

Can provide corresponding electrical performance and safety certification support according to customer requirements.

Application: Insulators, Electrical Winding Insulation, Winding Wire Coating Insulation, Electrical Base, Shell, Motor, Switch Baseplate

Why Choose Our Silicone Fiberglass Sleeves?

Our silicone fiberglass sleeves not only boast industry-leading temperature resistance and insulation properties, but also offer customization options for various inner diameters, colors, lengths, and electrical ratings, adapting to diverse and complex applications. Chengrui Insulation can offer both 2753 silicone fiberglass sleeving and 2751 silicone rubber fiberglass sleeving. Whether for bulk purchases or special specifications, we provide professional solutions and reliable product quality assurance.

• Global supplier of silicone coated fiberglass sleeves for electrical equipment


• Custom sizes to match your motor, transformer, or wiring project

• High-quality insulation material with stable thermal, mechanical, and dielectric properties

• Sample support and batch approval before production

• Export-ready packaging for bulk orders



FAQ

Q1: What is silicone fiberglass sleeving?

A: Silicone fiberglass sleeving is a braided fiberglass sleeve coated with silicone resin for electrical insulation, heat resistance and wire protection.

Q2: What is 2753 silicone fiberglass sleeving?

A: 2753 silicone fiberglass sleeving refers to silicone coated fiberglass sleeving used for Class H electrical insulation applications.

Q3: What is the temperature class of silicone fiberglass sleeving?

A: It is commonly used as Class H insulation material, around 180℃.
