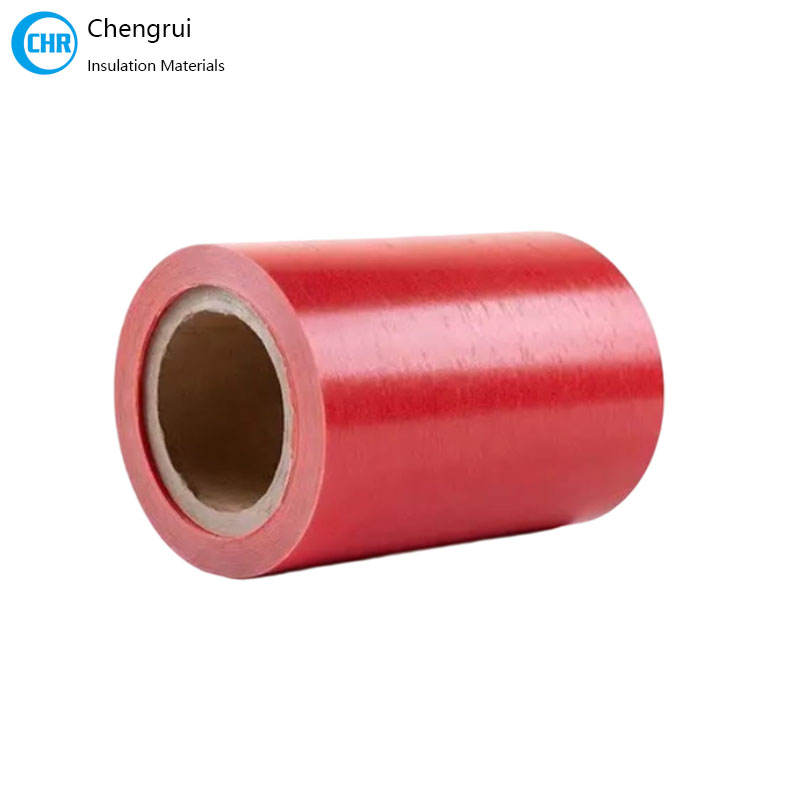

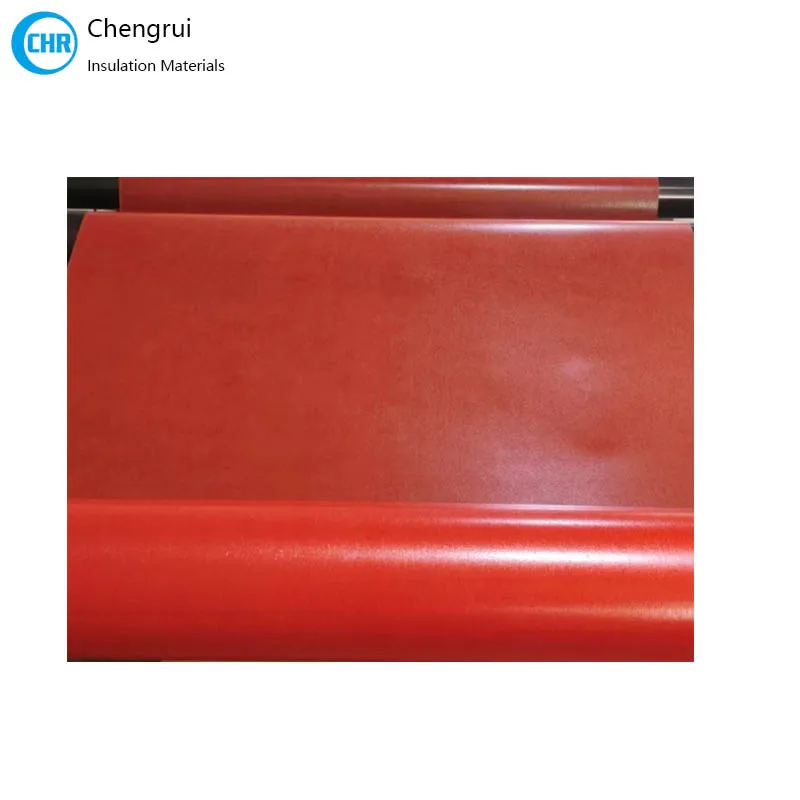

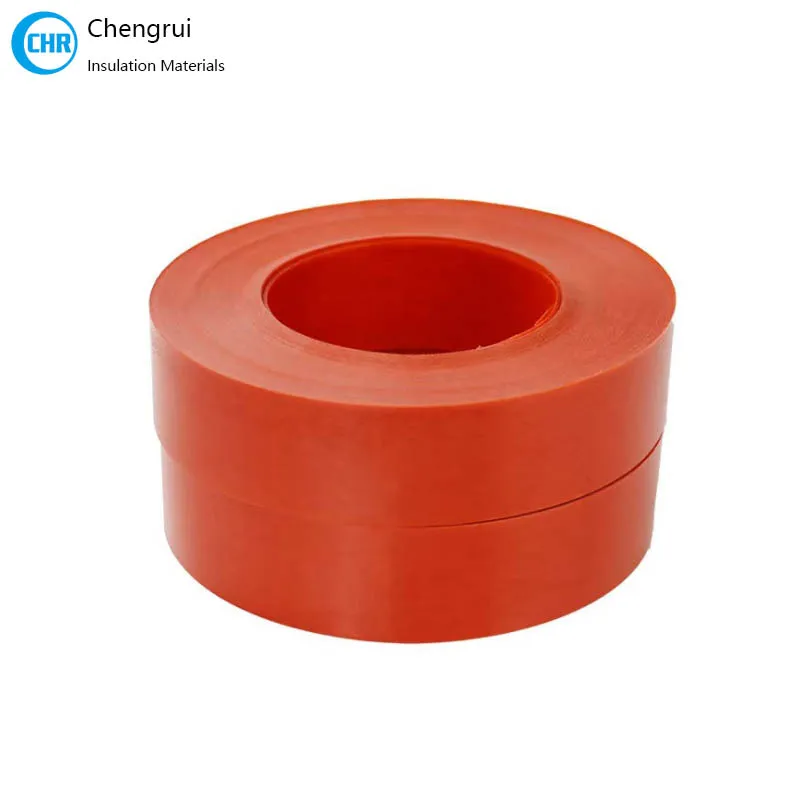

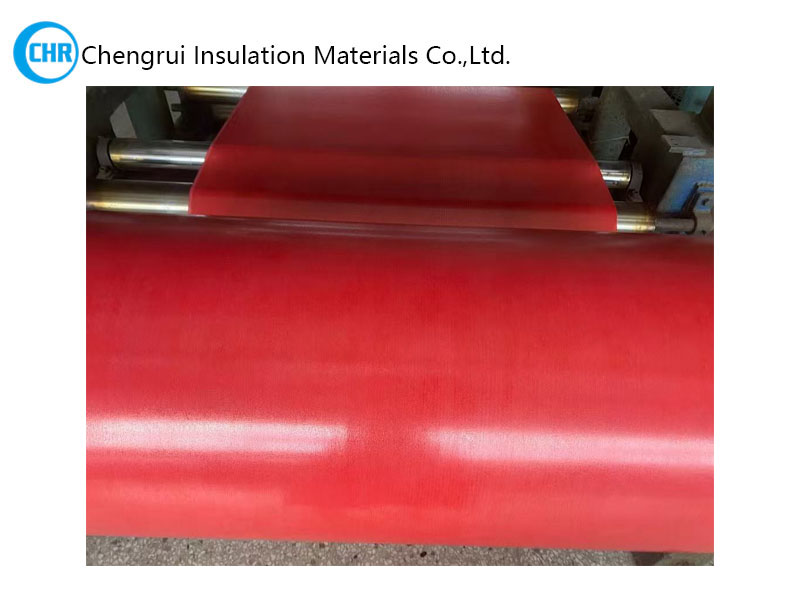

Prepreg DMD Composite Insulation Paper

Prepreg DMD composite insulation paper is an advanced composite material designed for demanding electrical applications. This prepreg material combines a robust polyester film (D), nonwoven polyester felt (M), and epoxy or polyester resin.

The prepreg DMD uses a DMD (Dacron-Mylar-Dacron) base, which provides mechanical strength and flexibility from the fibers and high dielectric strength from the film.

Primary Applications

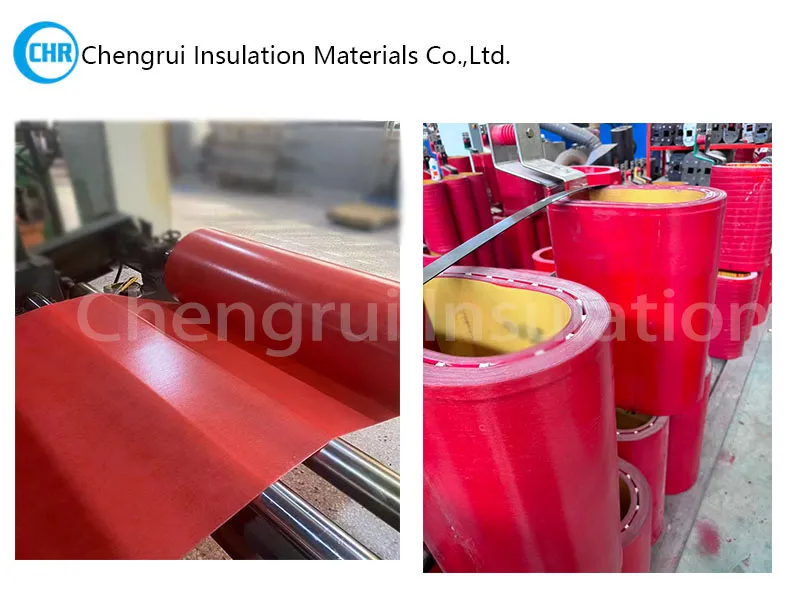

• Dry-Type Transformers: Used as interlayer insulation for low-voltage foil-wound coils. It effectively reduces no-load losses and ensures stable operation in high-voltage environments.

• Electric Motors: Prepreg DMD composite insulation paper is an advanced composite material designed for demanding electrical applications. This prepreg material combines a robust polyester film (D), nonwoven polyester felt (M), and epoxy or polyester resin.

Heat-resistance: F Class 155℃ / H Class 180℃

Thickness: 0.10mm - 0.50mm

Electrical strength ≥ 40 kV/mm

Why Choose Our Prepreg DMD?

1.Customizable Performance: The resin formulation can be adjusted to meet your specific requirements for heat resistance, flame retardancy (UL 94 V-0), thermal conductivity, or mechanical properties.

2.Wide Processing: With an optimized curing profile, it perfectly matches processes like automated molding and Vacuum Pressure Impregnation (VPI), enhancing production efficiency.

3.Consistent Quality: Precision control throughout the entire manufacturing process ensures highly stable thickness, resin content, and performance indicators for every roll of product.

4.Technical Support: We provide comprehensive technical support, from material selection and process parameters to application solutions.t insulation, phase-to-phase insulation, and turn-to-turn insulation in B and F class motors.

5.Electrical Appliances: Suitable for general lining and gasket insulation in high-temperature or high-voltage equipment.
