Motor Insulation Materials

Motors require insulation with strong dielectric strength, heat resistance and flexibility. Chengrui supplies DMD, NMN, NHN, films, tapes and sleeving for reliable motor insulation systems.

Reliable Material Solutions
Trusted by Global Manufacturers
Supporting a More Efficient Tomorrow

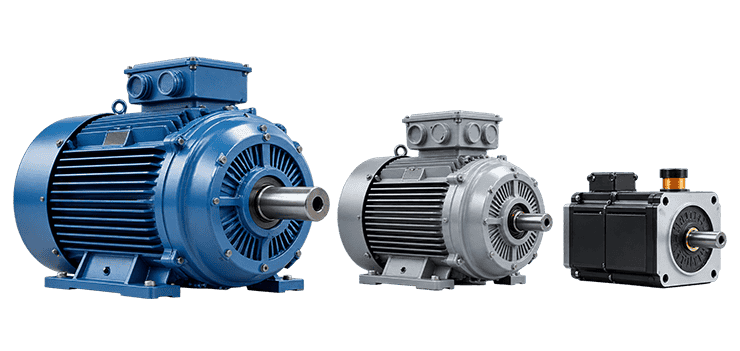

Applications Across Motor Types

APPLICATION SOLUTION

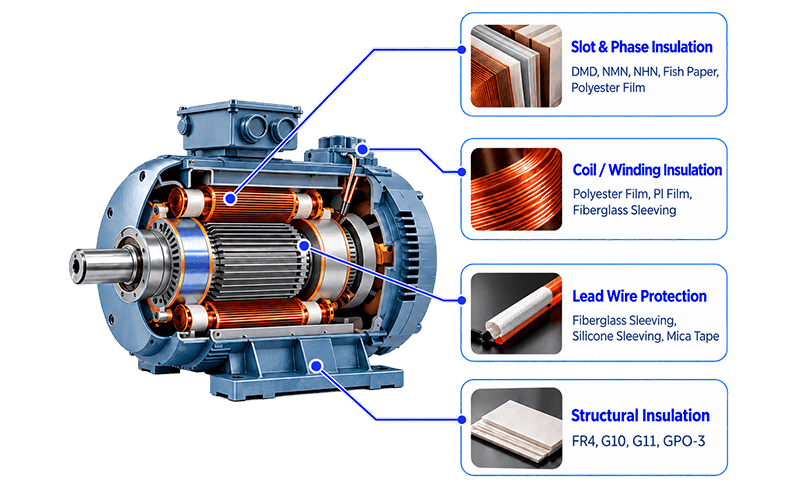

Where Insulation Materials Are Used in
Motors

Chengrui provides reliable insulation materials for key motor components, helping to ensure high performance and long serice life

OUR PRODUCT SOLUTIONS

Explore Our Insulation Material

High-quality insulation materials for dry-type transformers and a wide range of electrical equipment.

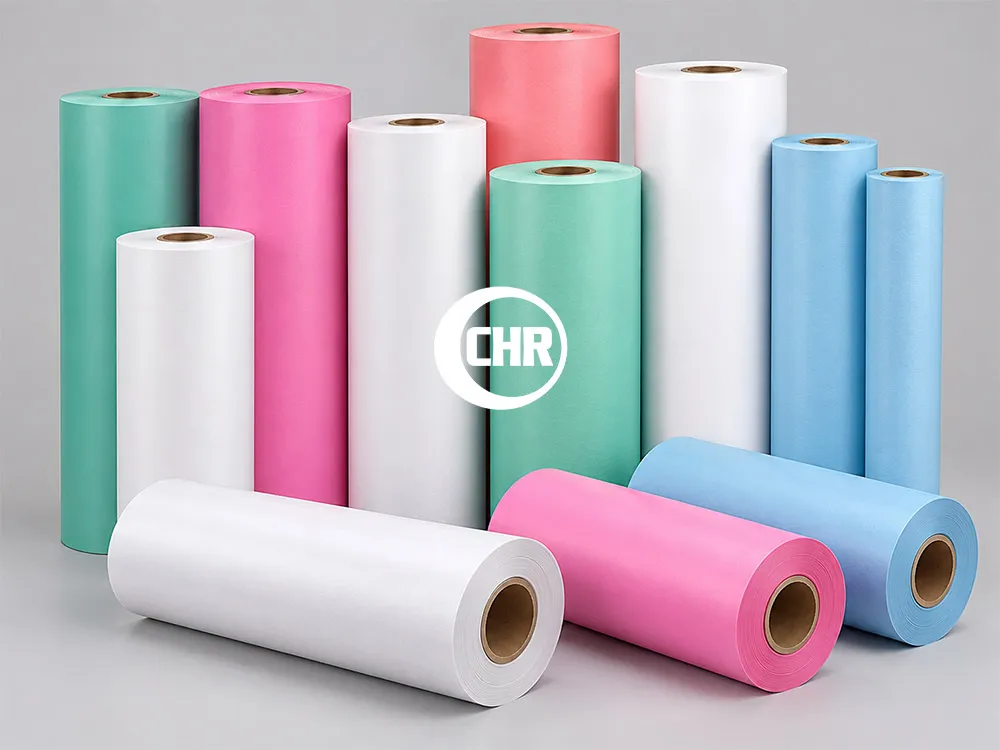

Flexible Laminates & Insulation Paper

Premium flexible electrical insulation laminates (DMD, NMN, NHN, AMA) for motor and transformer winding. Class B, F, and H heat resistance compliant with IEC standards. Factory direct bulk wholesale. Get a quote!

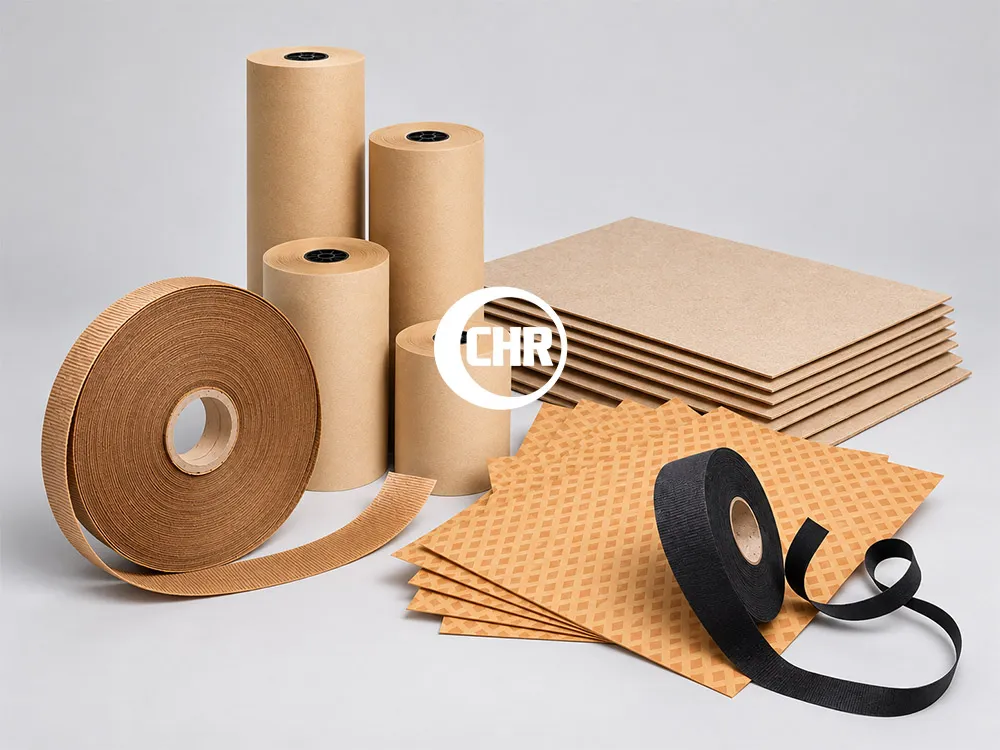

Transformer Insulation Paper & Pressboard

Premium electrical insulation materials supplier in China. Supplying diamond dotted paper (DDP), crepe paper, kraft paper, thermally upgraded insulation paper compliant with IEC standards. Standard industrial MOQ applies. Request a technical quote now!

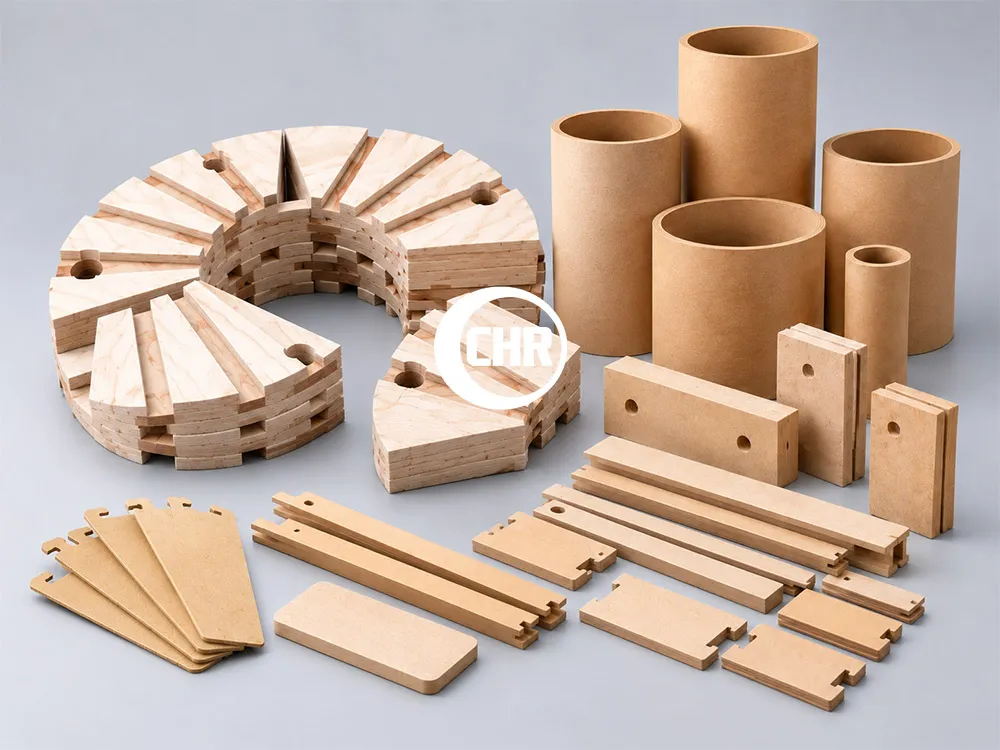

Transformer Insulation Components

Chengrui Insulation supply a complete range of transformer insulation components like Insulation pressboard angle rings, spacer blocks, transformer insulation cylinders, support strips, transformer insulation kits, densified laminated wood sheet and parts

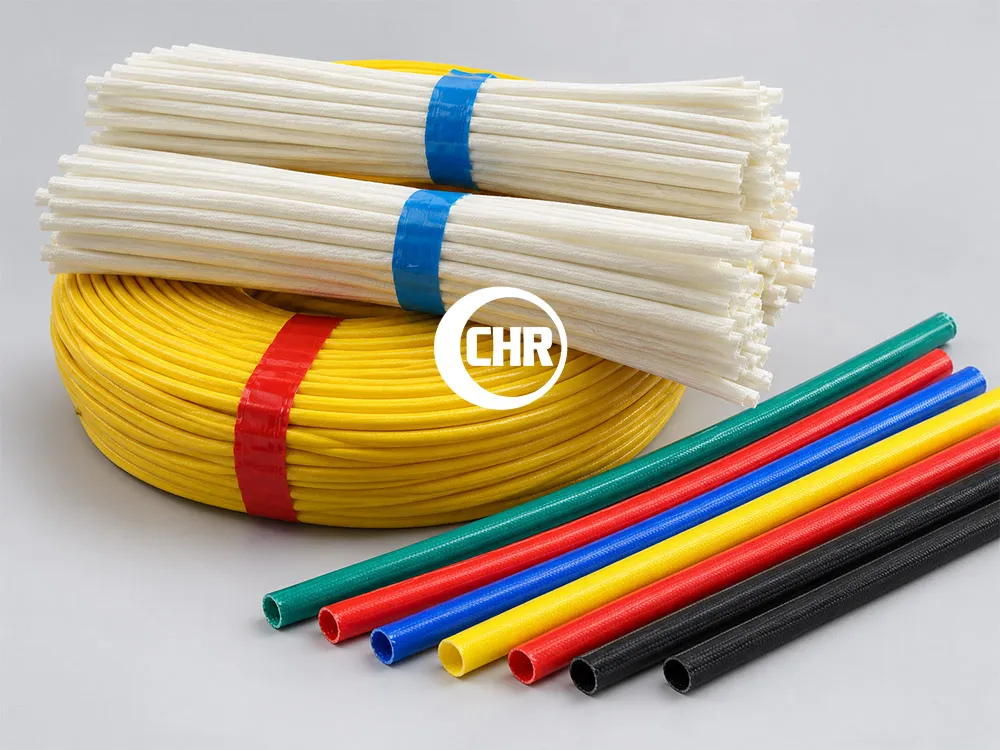

Insulation Sleeving & Tubes

Leading Manufacturer & Exporters of different types fiberglass sleeving, such as silicone coated sleeving, acrylic sleeving, PVC sleeving ,etc

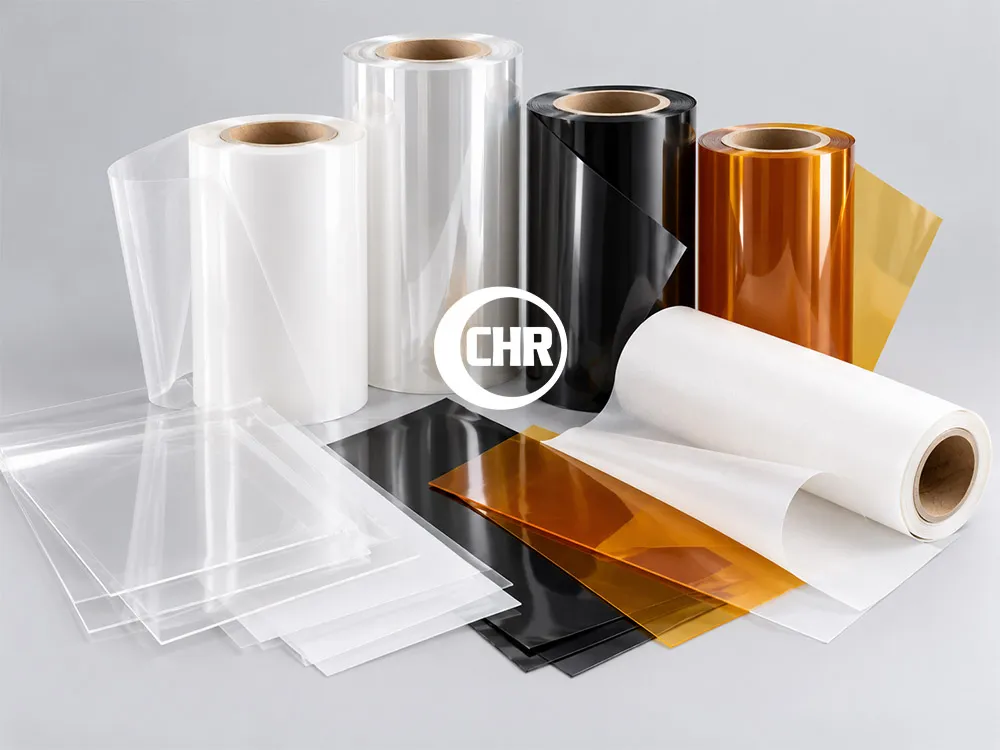

Insulation Films

Chengrui offers various types insulation film, such as polyester film(clear, milky white, black color etc), mylar film, polyimide film, PTFE coated film

Common Questions About
Motor Insulation Materials

How do I choose the right slot insulation material for my motor?

The choice depends on the motor voltage, thermal class, slot geometry, winding process and impregnation system. DMD and NMN are widely used for general slot insulation, while NHN, PI film and mica-based materials are preferred where higher thermal or electrical performance is required. Thickness and flexibility should also match the slot design and insertion process.

What materials are suitable for Class F and Class H motor insulation systems?

Class F motor insulation commonly uses materials such as DMD, NMN, polyester film, fiberglass sleeving and mica products. For higher-temperature Class H systems, NHN, polyimide film, silicone fiberglass sleeving and mica materials are more commonly considered. Final material selection should be based on the complete insulation system rather than the temperature rating of one material alone.

Can insulation materials be supplied pre-cut for our stator or winding process?

Yes. Depending on the material, we can provide slitting, sheeting, die-cutting, punching and CNC machining. Slot liners, phase insulation, wedges and other insulation parts can be produced according to drawings or dimensional requirements, helping reduce in-house cutting and assembly work.
