Insulation Tape
Electrical PVC Insulation Tape Supplier
For reliable insulation and protection in every electrical project, trust our PVC Electrical Tape. Engineered with safety and performance as the top priority, the PVC insulation tape combines superior insulating materials with a powerful adhesive to create a secure, long-lasting seal.
Type: Insulation tape
Material: PVC
Thickness: 0.15mm 0.18mm etc
Temperature: -15℃~85℃
Description
PVC Electrical Tape manufacturer and supplier in China - Chengrui Insulation Material. Engineered with safety and performance as the top priority, the PVC insulation tape combines superior insulating materials with a powerful adhesive to create a secure, long-lasting seal.
Advantages of PVC Insulation Tape:
Safe & Lead-Free: Manufactured with eco-friendly materials, compliant with RoHS/REACH standards.
Excellent Insulation: High dielectric strength and reliable voltage resistance for critical safety.
Strong & Durable: Features significant tensile strength and a strong adhesive that holds securely over time.
Easy to Apply: Tears evenly by hand, conforms smoothly to wires and irregular surfaces.
Flame Retardant: Self-extinguishing properties enhance safety in electrical environments.
Product Features & Technical Highlights:
Material: Soft, flexible PVC film (matte or gloss finish).
Adhesive: High-performance, pressure-sensitive rubber adhesive.
Temperature Range: Standard: -20°C to +80°C | High-Temp Version: Up to +105°C.
Resistance: Effective against moisture, aging, and most chemicals.

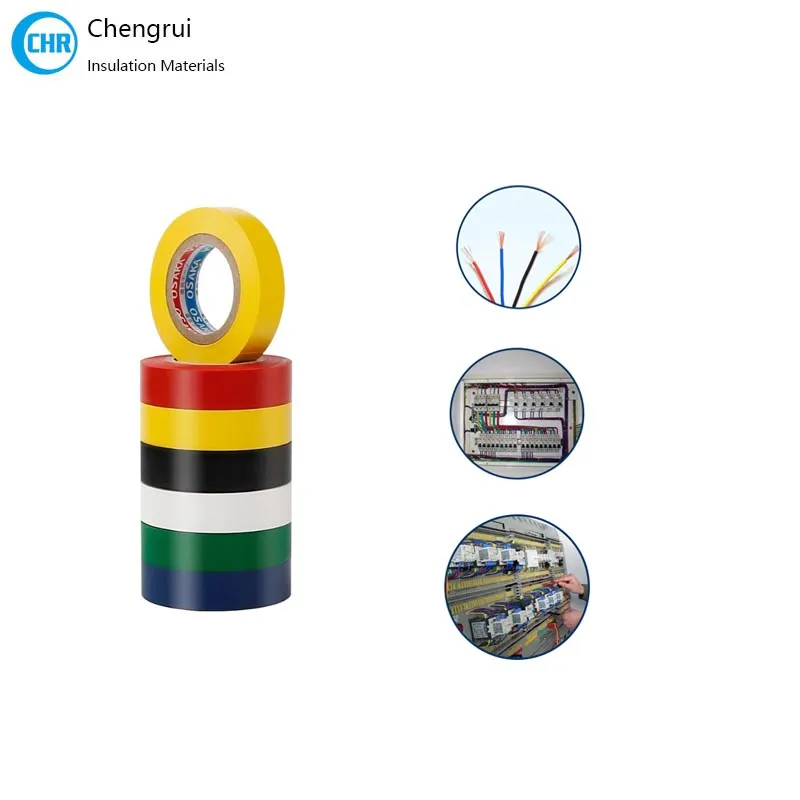

Application: Perfect for wire harnessing, cable bundling, insulation, and general electrical maintenance.

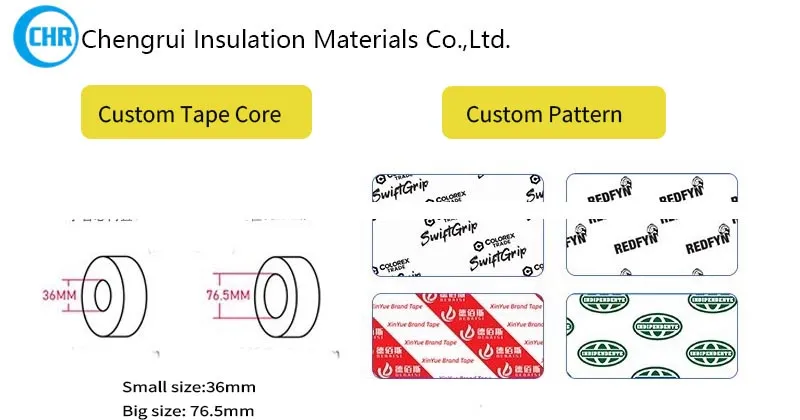

We operate with fully automated precision production lines and a dedicated R&D team focused on product innovation and strict quality control. Every roll embodies our commitment to safety, reliability, and environmental responsibility, delivering excellent project solutions for you. We can also customize the tape core and pattern/logo.

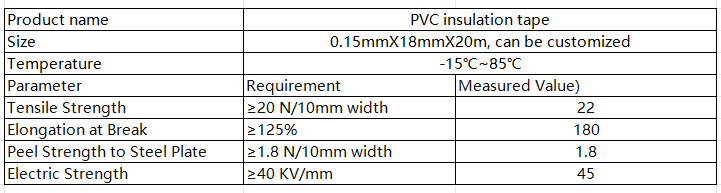

Parameter
| Type | Insulation tape | |||||
| Material | PVC | |||||
| Thickness | 0.12mm 0.15mm 0.18mm etc | |||||
| For more information, please contact us: [email protected] | ||||||
Online Message
Quick Answers for You
Quick answers to your pressing questions.
Q: How do you ensure consistent quality from batch to batch?
A: We control key parameters such as thickness, dimensions, dielectric performance, mechanical strength and moisture according to the product specification. Batch inspection and traceable test records help maintain consistent performance for repeat orders.
Q: Can you provide samples for testing?
A: Yes. Samples can be provided for material evaluation, testing or production trials. For customized materials, sample availability and lead time depend on the required specification.
Q: What technical documents can you provide?
A: Depending on the material, we can provide ISO, TDS, RoHS, REACH, SGS reports and relevant IEC or UL information for technical evaluation and supplier approval.
Q: What are your MOQ, lead time and shipping options?
A: MOQ and lead time vary by material, specification and processing requirement. Low MOQ and trial order can be accept accordingly. We support international shipments by sea, air and express courier.
Q: Are you a trader or manufacturer?
A: Chengrui combines our own manufacturing capabilities (flexible laminates, insulation sleeving etc) with a qualified partner production network. This allows us to supply a broader range of electrical insulation materials while maintaining specification control, quality inspection and technical support.
