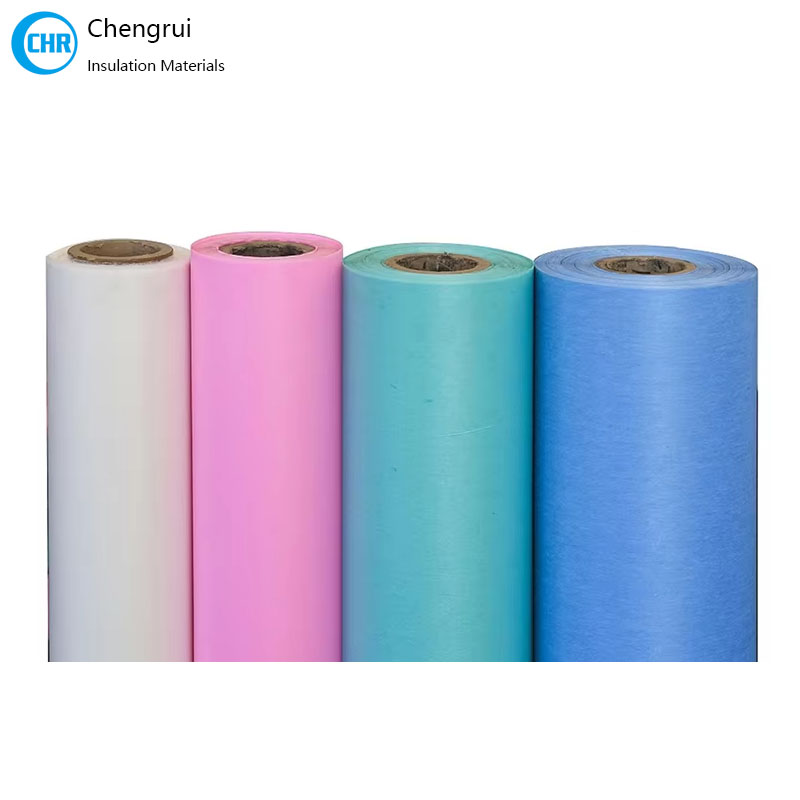

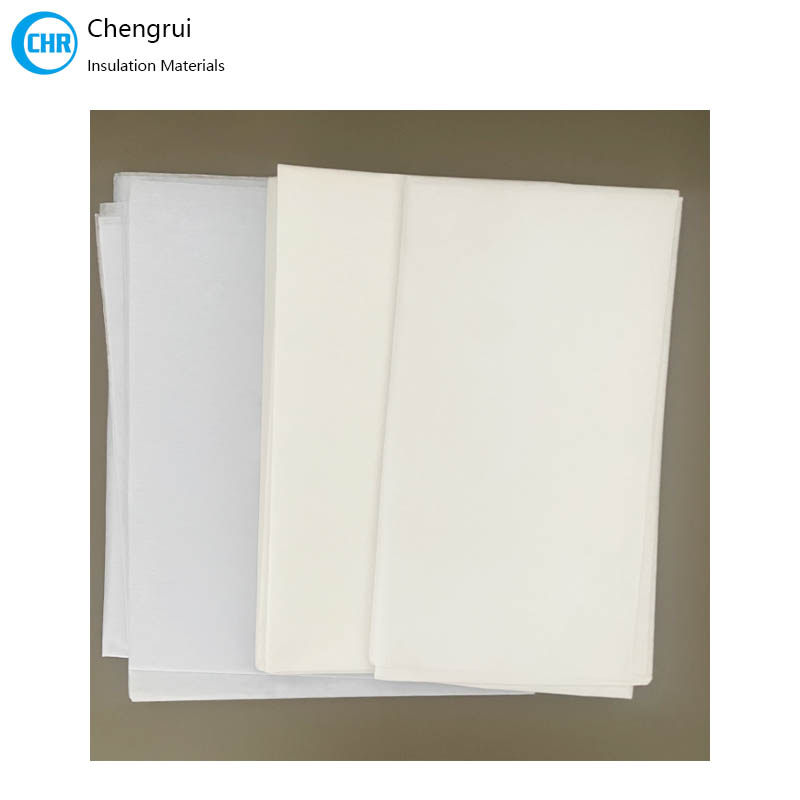

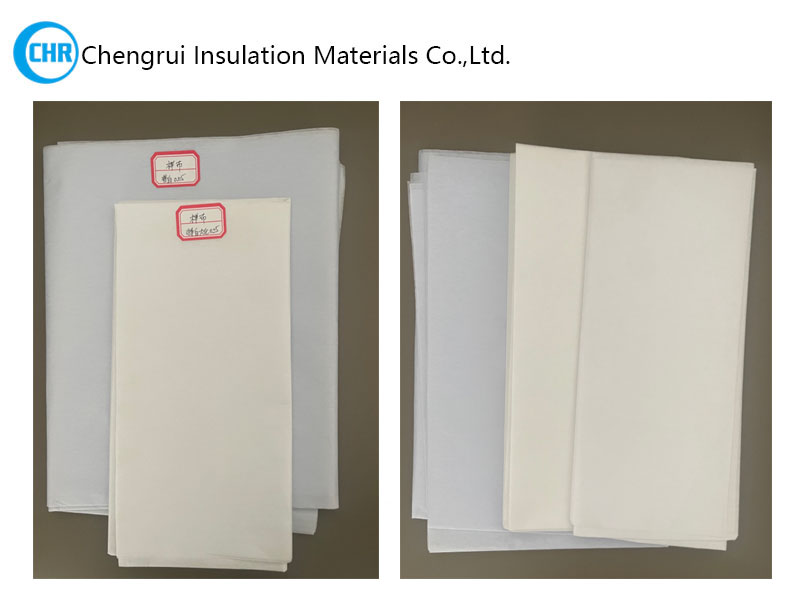

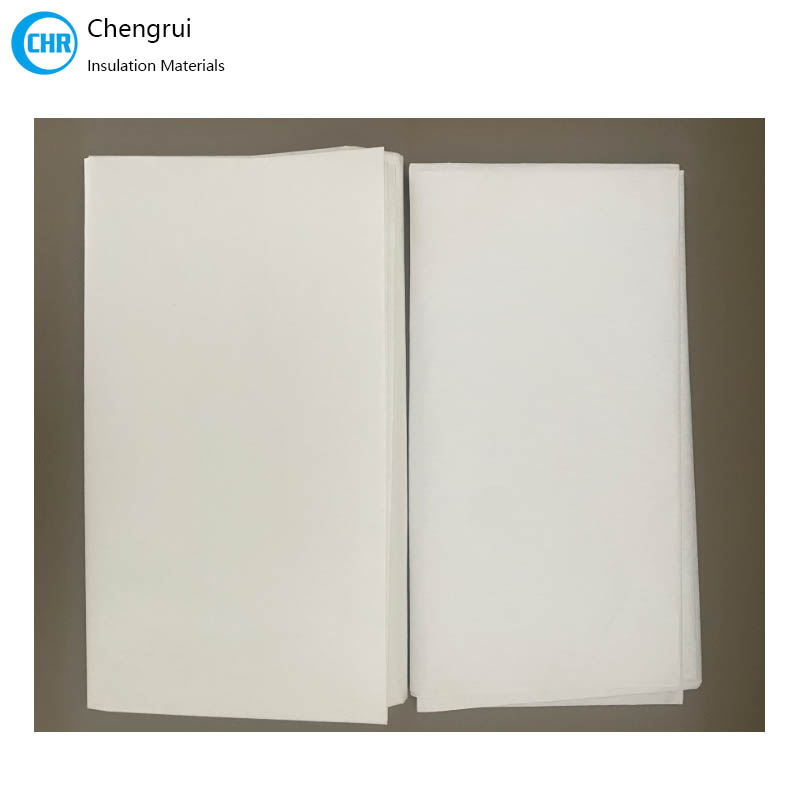

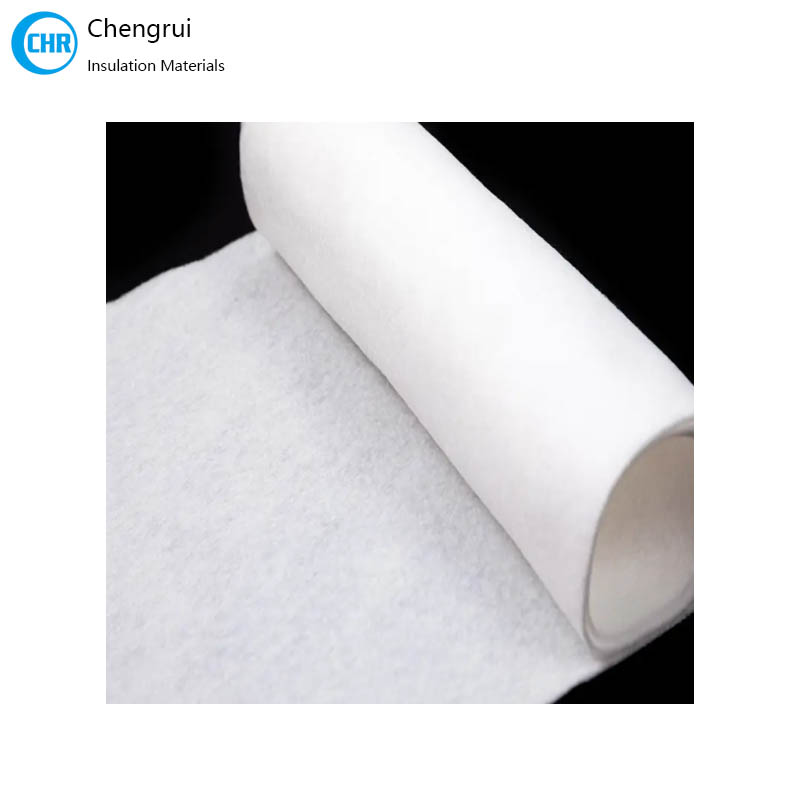

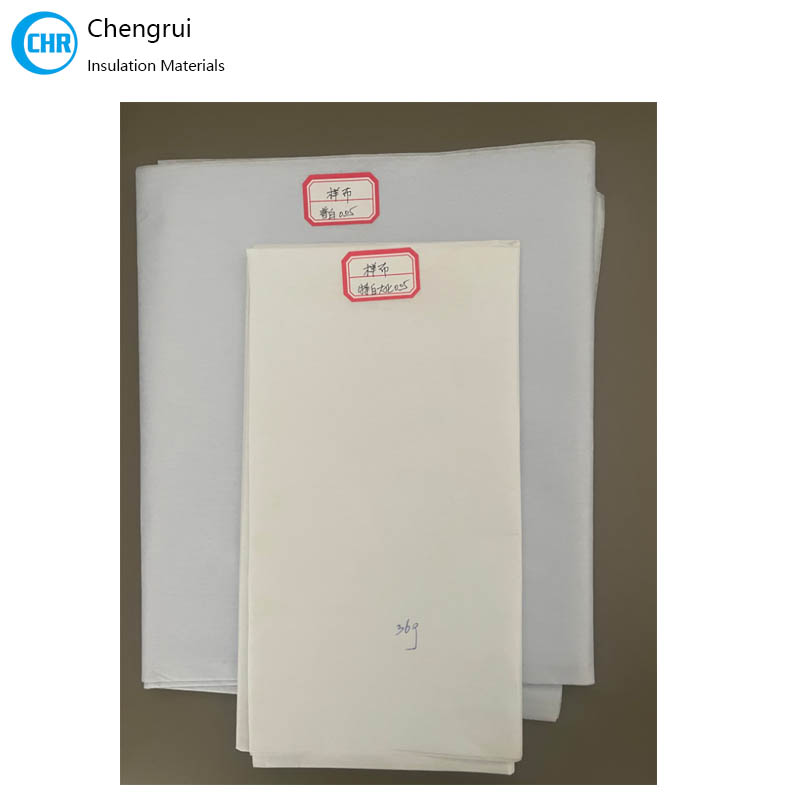

7031 Electrical Polyester Non-woven Fabric

7031 Polyester Electrical Non-Woven Fabric (also known as Plain Non-Woven Fabric) is a high-performance insulating material engineered for the demanding requirements of the electrical industry. This non-woven fabric is manufactured from premium polyester fibers that undergo a rigorous full-combing process to ensure maximum uniformity and structural integrity.

The production involves a specialized filament impregnated adhesive drying process, which results in a smooth, consistent surface and exceptional longitudinal strength. Its unique construction balances a lightweight, thin profile with high tensile durability, making it an ideal choice for compact electrical components.

Key Features and Advantages

• Superior Insulation: Provides reliable dielectric properties to prevent electrical leakage and short circuits.

• High Tensile Strength: Optimized longitudinal strength ensures the tape can withstand mechanical stress during winding and application.

• Low Elasticity: Offers excellent dimensional stability, ensuring it remains taut and secure without stretching over time.

• Chemical Resistance: Non-corrosive properties ensure compatibility with various resins, varnishes, and metallic components.

• Precision Profile: The ultra-thin and lightweight design allows for high-density layering in tight spaces.



Material: 100% Polyester Fiber

Processing: Filament Impregnated & Combed

Surface: Smooth / Plain
Thickness: 0.05mm-0.07mm

Corrosiveness: Non-corrosive

Main Application: Motor wrapping, transformer insulation, coil binding

Electrical polyester nonwoven fabrics are widely used in the production of insulating flexible composite paper (such as DM, DMD, DMDM), mica tape reinforcing materials, insulating varnished cloth substrates, electrical laminates, motor coil terminal coverings, miniature flexible cables and communication cables.
