Insulation Fiberglass Tape for Electrical
Non-alkali insulation fiberglass tape is a woven glass fiber tape designed for electrical and thermal insulation in motors, transformers, cables, and industrial equipment, which is widely used where high temperature stability and electrical safety are required.
Additional Information
Type: Insulation Tape
Thickness: 0.1mm, 0.12mm, 0.15mm, 0.17mm
Width: 20mm, 25mm, 30mm, 50mm

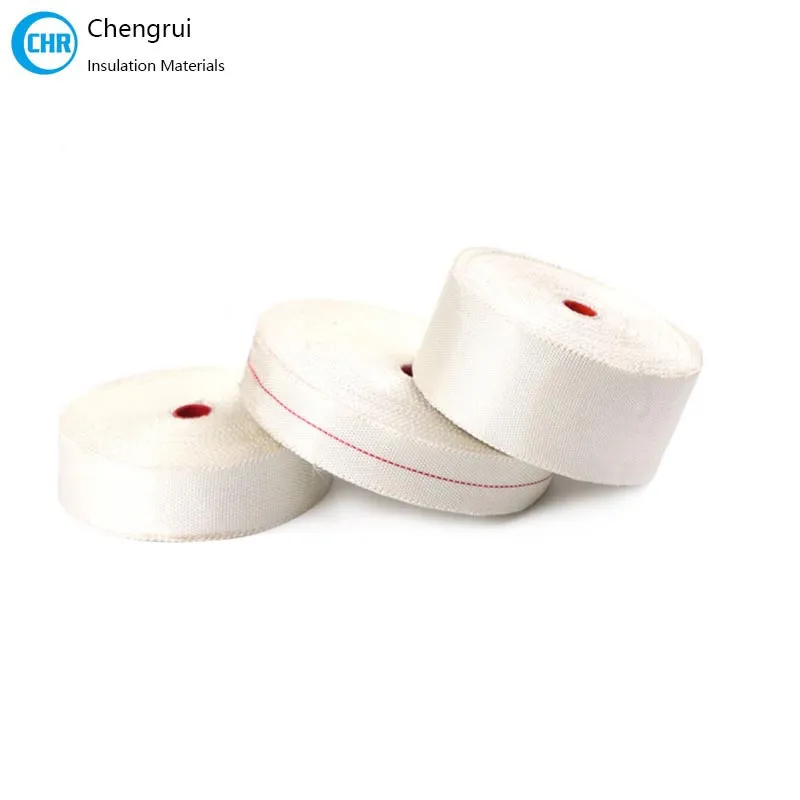

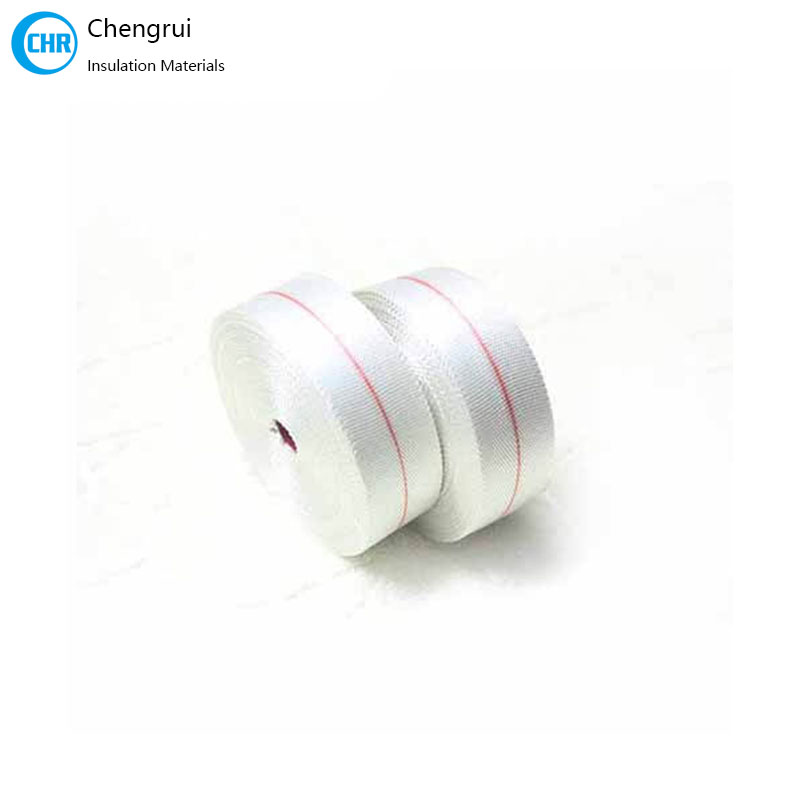

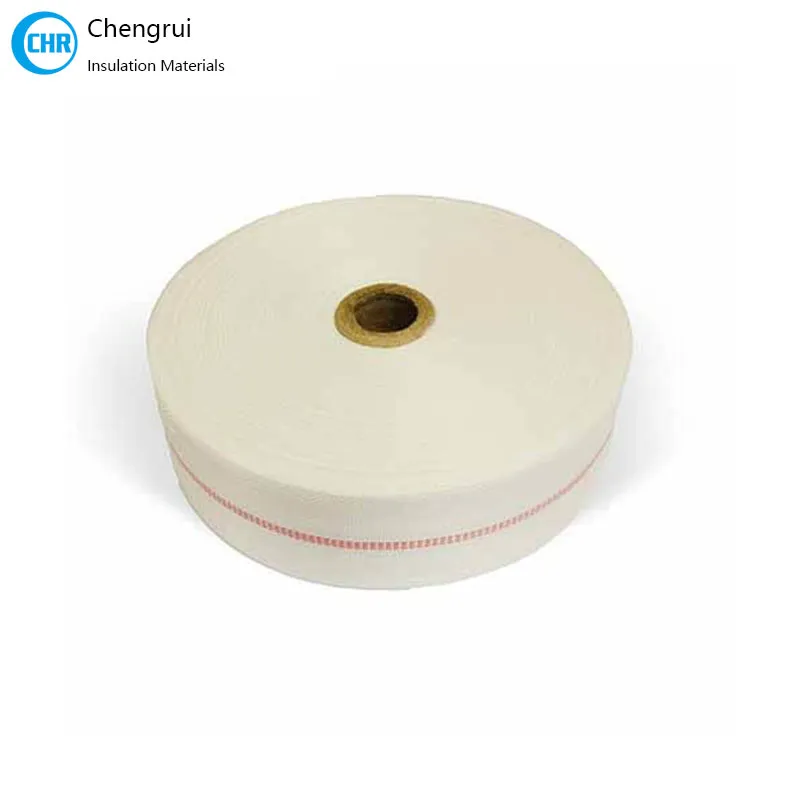

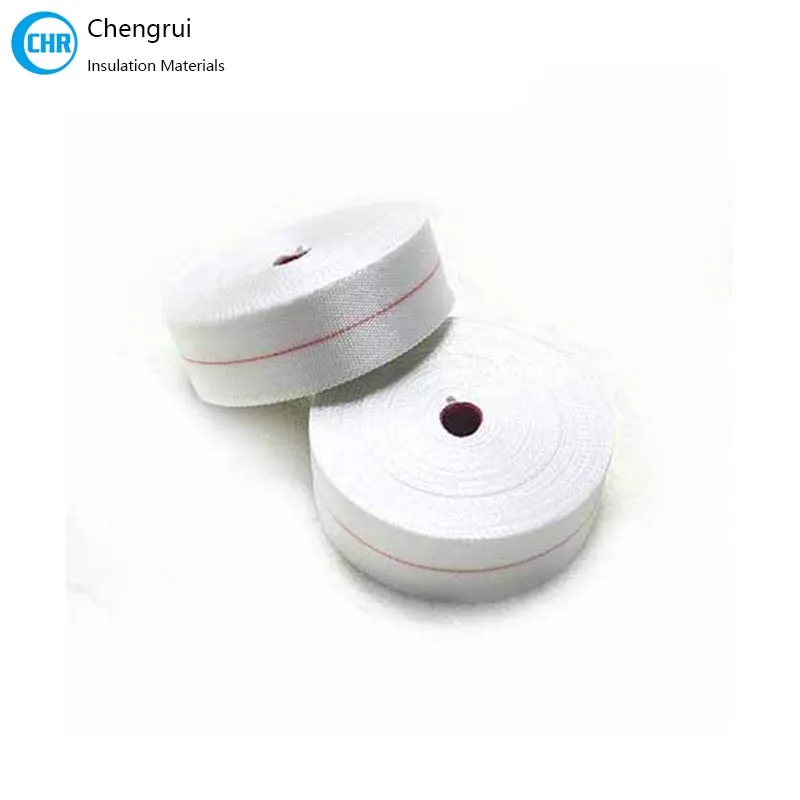

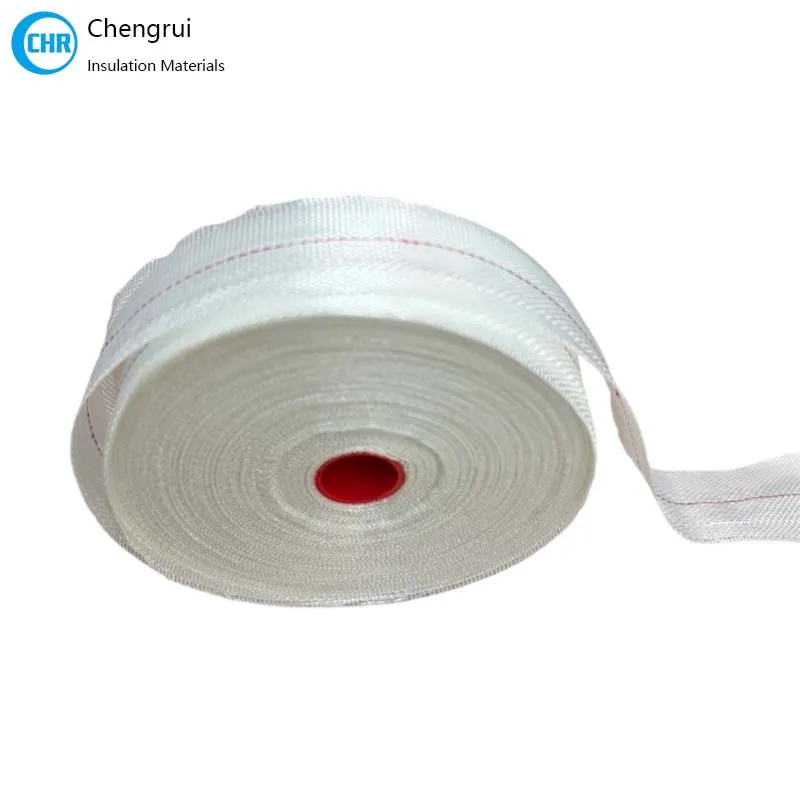

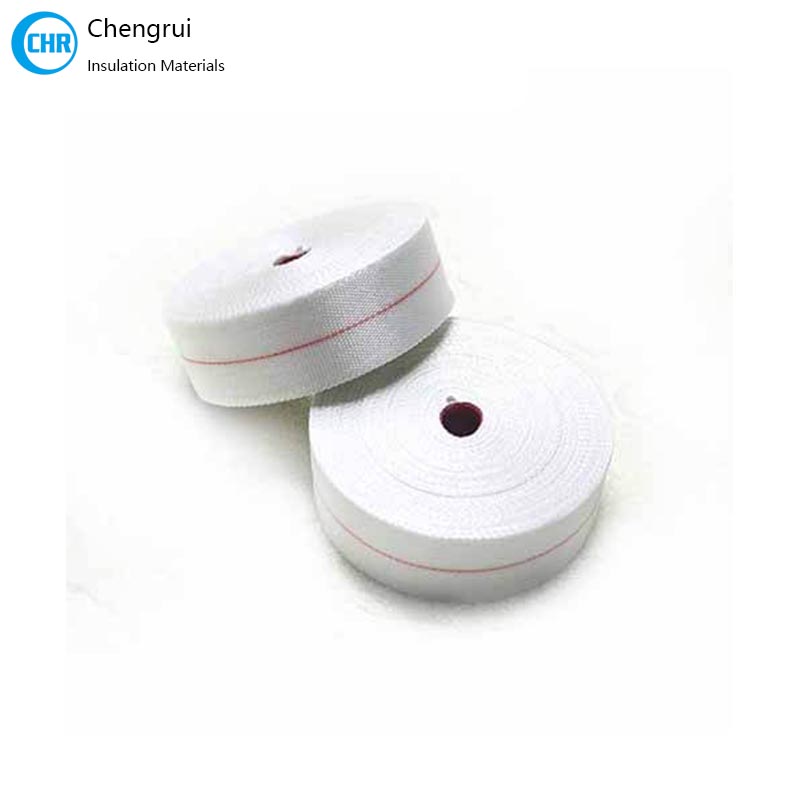

Standard Color: White( can add red or blue line in the middle)
Length: Normal package 30 or 50 meters per roll, any special package is feasible.
Application: Insulators, Electrical Winding Insulation, Winding Wire Coating Insulation, Electrical Base, Shell, Motor, Switch Baseplate
Description
Fiberglass insulation tape is woven glass-fiber tape used for winding insulation, wrapping and binding in electrical equipment. For ordering, specify whether plain or treated tape is required, together with thickness, width, roll length and the intended motor or transformer application.
Electrical, thermal and flame-performance requirements should be checked for the supplied tape construction, including any binder or coating. Confirm the exact grade and approved application; a glass-fiber base alone does not establish the rating of the finished tape or the complete insulation system.
Fiberglass insulation tape is widely used where high temperature stability and electrical safety are required, especially in electrical insulation systems exposed to continuous heat and mechanical stress.

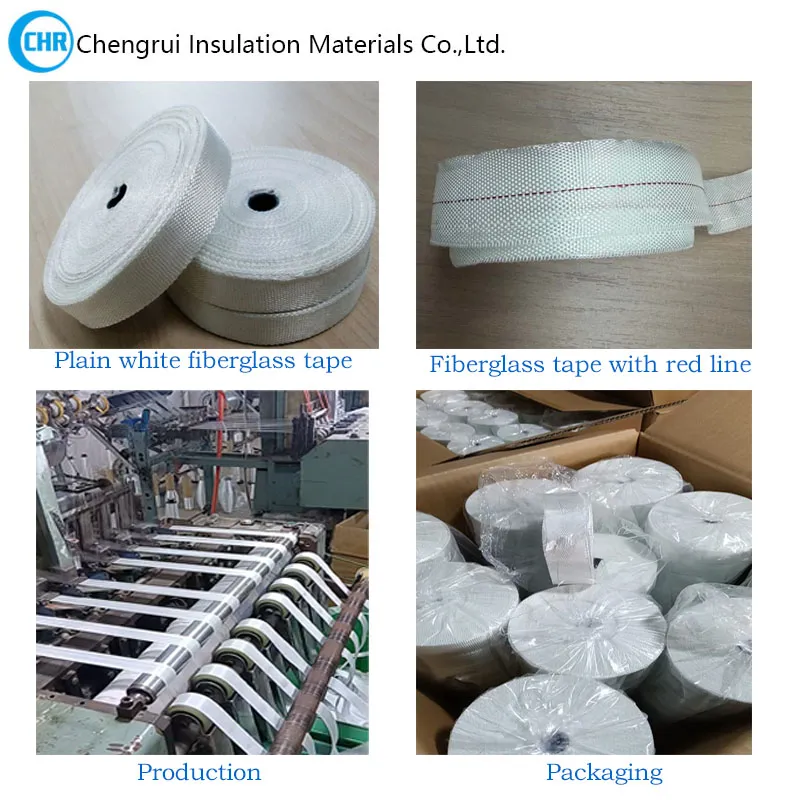

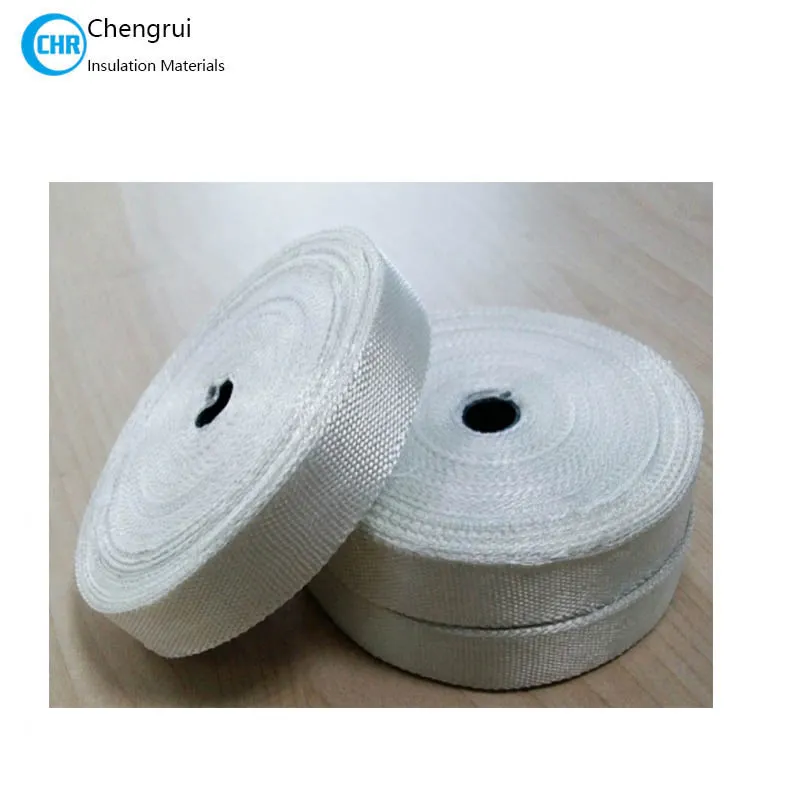

Chengrui insulation can offer plain white fiberglass tape, fiberglass tape with lines in the middle, fiberglass tape with resin etc.
Key Technical Specifications
Material: E-glass fiberglass yarn
Structure: Woven fiberglass tape
Electrical Insulation: High dielectric strength
Flame performance: Confirm the required test method and result for the selected tape, including any coating or binder.
Thickness Range: 0.1mm, 0.12mm, 0.15mm, 0.17mm
Width Range: 5 mm – 200 mm (custom sizes available)
Coating Options: Plain / Acrylic / Silicone / PTFE
Typical values shown are for industrial insulation fiberglass tape applications. Specific performance depends on coating and thickness.
Why Fiberglass Tape Is Used for Insulation
Fiberglass tape is widely selected for insulation because it combines thermal stability and electrical insulation performance in a single material.
Key insulation benefits include:
Excellent thermal insulation at high operating temperatures
Reliable electrical insulation for coils, windings, and cables
Fire resistance, suitable for safety-critical applications
Mechanical reinforcement, preventing insulation layer damage
Long service life under continuous thermal stress
Fiberglass Insulation Tape Specifications
Test content | Unit | Standard | |
Appearance | Smooth and white, not any impurity | ||
Standard roll length | M | 50 meters per roll and each roll allow one junction. | |
Tolerance | thickness | mm | ± 0.01 |
width | mm | ± 2 | |
length | m | ± 6 | |
Soluble resin content | % | ≥ 90 | |
Tensile strength | N/cm | above: 196 | |
Elongation at break | % | 7 | |
Breakdown voltage min. | KV | 1.5 | |
Standard color | white | ||
Types of Insulation Fiberglass Tape:
1. Plain Fiberglass Tape: Without coating. Main application: Coil insulation, high-temp electrical insulation
2. Acrylic Coated Fiberglass Tape: With acrylic resin. Main application: Motor winding insulation, electrical binding
3. Silicone Coated Fiberglass Tape: With silicone resin. Main application: High-temperature electrical insulation
4. PTFE Coated Fiberglass Tape: With PTFE(teflon).Main application: Harsh chemical & high-temp environments
Fiberglass Insulation Tape Applications
It is used for binding, intern, winding of electrical motor. It can be also used as wrapping and banding material for transformers, electric motors, and cables.
How to Choose the Right Insulation Fiberglass Tape
When selecting insulation fiberglass tape, consider the following factors:
Operating temperature of the application
Electrical insulation requirements
Mechanical stress and abrasion conditions
Environmental exposure (chemicals, moisture, oils)
Need for coated or uncoated tape
Plain fiberglass tape is suitable for general insulation, while coated fiberglass tapes are recommended for applications requiring enhanced durability or environmental resistance.
Frequently Asked Questions(FAQs)
Q:What is insulation fiberglass tape used for?
A: It is used for electrical and thermal insulation in motors, transformers, cables, and industrial equipment.
Q:Is fiberglass tape suitable for electrical insulation?
A:Yes. Fiberglass tape offers high dielectric strength and is widely used in electrical insulation systems.
Q:What is the difference between fiberglass tape and cloth tape?
A:Fiberglass tape offers much higher heat resistance and better insulation performance than conventional cloth tape.
Parameter
| Type | Insulation Tape | |||||
| Thickness | 0.1mm, 0.12mm, 0.15mm, 0.17mm | |||||
| Width | 20mm, 25mm, 30mm, 50mm | |||||
| Standard Color | White( can add red or blue line in the middle) | |||||
| Length | Normal package 30 or 50 meters per roll, any special package is feasible. | |||||
| Application | Insulators, Electrical Winding Insulation, Winding Wire Coating Insulation, Electrical Base, Shell, Motor, Switch Baseplate | |||||
| For more information, please contact us: [email protected] | ||||||
