Fish Paper Polyester Film Laminate 6520

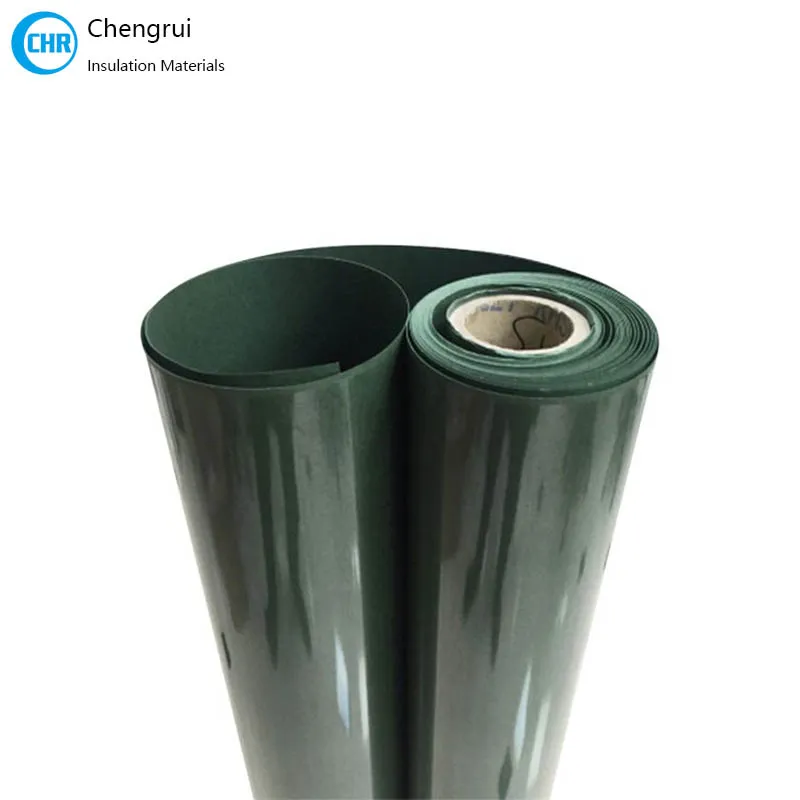

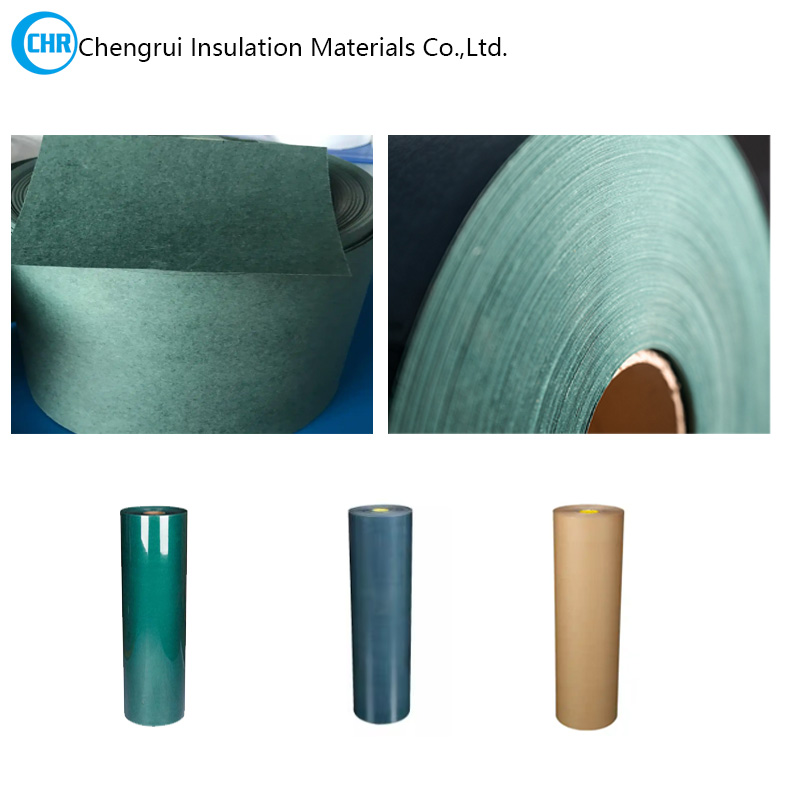

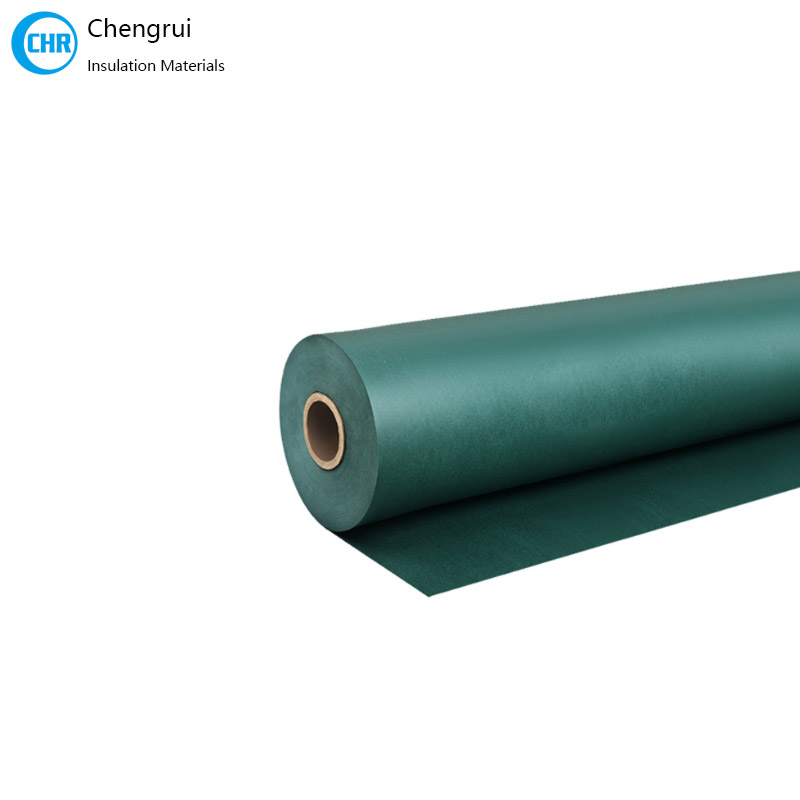

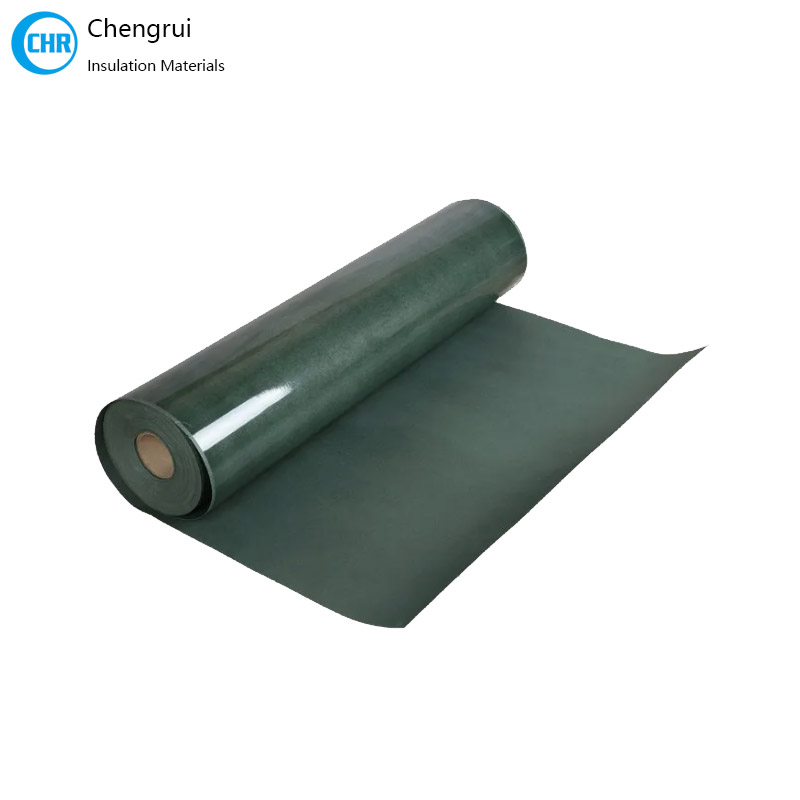

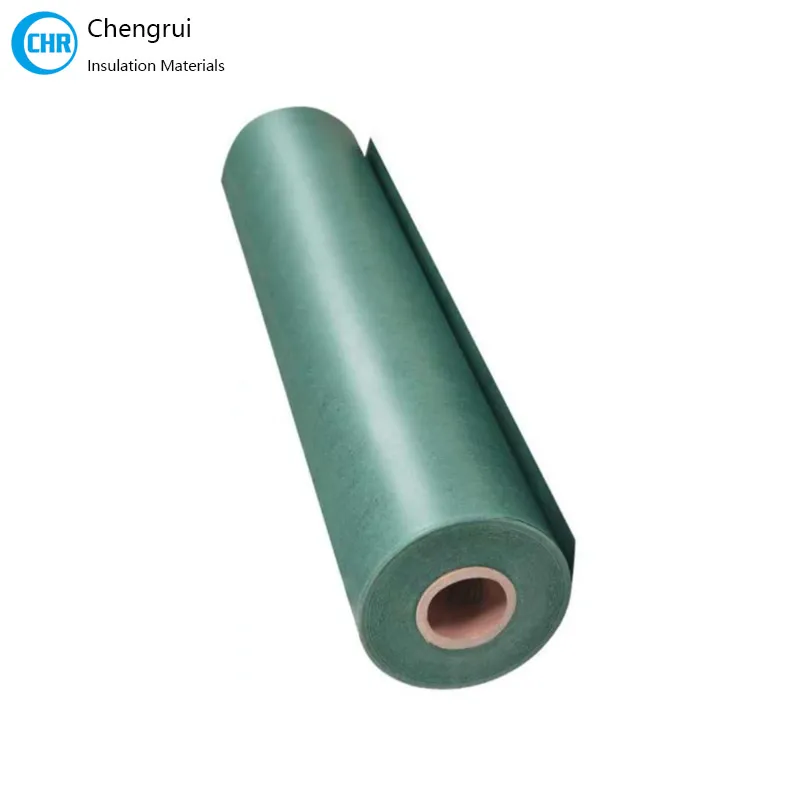

The composite insulation Paper, commonly known as Fish paper with film, is a two-layer composite material engineered for demanding electrical applications. It is manufactured through a precise and controlled lamination process. In this process, a robust layer of electrical-grade presspaper is permanently bonded to a layer of polyester film (also known as PET or Mylar).
Type: Composite insulation paper
Heat-resistance: E class 120℃
Thickness: 0.17mm, 0.20mm, 0.23mm, 0.25mm, 0.30mm, 0.35mm
Standard Width: 600mm/1000mm/1200mm (Custom widths available)
Description
This is fish paper with polyester film, electrical insulation is a flexible composite insulation material made by laminating electrical-grade presspaper with polyester film (PET/Mylar). It is commonly used as electrical fish insulation paper for slot insulation, phase insulation, liner insulation and general fish paper for insulation in motors, transformers, coils and other electrical equipment.
What Is Composite Electrical Insulation Paper?
This is a two-layer composite insulation material designed for electrical applications that require both dielectric insulation and mechanical strength.
It is produced by laminating:
one layer of electrical-grade presspaper
one layer of polyester film (PET/Mylar)
This structure combines the advantages of both materials and creates a flexible but durable insulation sheet that can be cut, punched and formed into different electrical insulation parts.
In practical use, fish paper is selected when plain insulation paper is not enough and a more stable composite insulation material is needed.
The composite insulation Paper, commonly known as Fish Paper with film or Laminated Barley paper, is a two-layer composite material engineered for demanding electrical applications. It is manufactured through a precise and controlled lamination process. In this process, a layer of electrical-grade presspaper is permanently bonded to a layer of polyester film (also known as PET or Mylar).
Properties & Advantages of PET Laminated Fish Paper:
○Excellent Dielectric Strength: The polyester film layer provides superior electrical insulation.
○High Mechanical Strength: The presspaper base offers great puncture and tear resistance.
○Good Flexibility: Easy to handle, cut, and form for complex shapes.
○Impregnation Friendly: Allows varnishes and resins to penetrate for a solid insulation system.
Common Specifications:
Heat-resistance: E class 120℃
Thickness: 0.17mm, 0.20mm, 0.23mm, 0.25mm, 0.30mm, 0.35mm
Standard Width: 600mm/1000mm/1200mm (Custom widths available)
Applications of PET Laminated Fish Paper:
The fish paper with film is widely used as insulation in:
Electric Motors & Generators: Slot liners and phase insulation.
Transformers: Layer and barrier insulation.
Coils & Solenoids: Formed coils and magnetic coils.
Electrical Repair: A go-to material for maintenance and rebuilding.
FAQ
Q1: What is fish paper electrical insulation?
A: Fish paper electrical insulation is a laminated composite insulation material made from electrical-grade presspaper and polyester film. It is used in motors, transformers, coils and electrical equipment for slot, phase and general insulation applications.
Q2: What is electrical barley paper laminate used for?
A: It is commonly used for slot insulation, phase insulation, liner insulation, transformer layer insulation and electrical repair work.
Q3: Is this laminated barley paper suitable for motor insulation?
A: Yes. This laminated barley paper is widely used in motor and generator insulation, especially for slot insulation and phase insulation.
Parameter
| Type | Insulation Paper | |||||
| Material | Mylar film | |||||
| Heat-resistance | E Class(120℃) | |||||
| Thickness | 0.1-0.35mm | |||||
| Width | 600mm/1000mm/1200mm | |||||
| For more information, please contact us: [email protected] | ||||||
Online Message
Quick Answers for You
Quick answers to your pressing questions.
Q: What thickness, width, length, and tolerance can you supply?
A: Chengrui Insulation can supply standard sizes and also customize dimensions according to customer drawings or application requirements. The tolerance depends on material type, thickness, and processing method. Before quotation, customers should confirm thickness, width, length, quantity, roll weight, or drawing dimensions.
Q: Can you process according to drawings, such as strips, punching, CNC machining, molded parts, and oil duct spacers?
A: Chengrui Insulation can provide custom processing according to drawings, not only raw insulation materials. Common processing includes strip cutting, punching, chamfering, slotting, CNC machining, and components etc.
Q: Is this material suitable for my transformer type, oil-immersed or dry-type?
A: Chengrui Insulation can offer insulation materials both for oil-immersed transformers and dry-type transformers. Common materials for oil-immersed transformers include electrical kraft paper, diamond dotted paper, crepe paper, insulation pressboard, pressboard strips, oil duct spacers, insulation cylinders, and laminated wood. They are widely used for winding insulation, interlayer insulation, end insulation, oil ducts, and support structures. For dry-type transformers requiring higher thermal performance, we normally recommend NMN, NHN, AMA, polyimide film, epoxy fiberglass sheets, etc
Q: Are you a trader or manufacturer?
A: Chengrui combines our own manufacturing capabilities (flexible laminates, insulation sleeving etc) with a qualified partner production network. This allows us to supply a broader range of electrical insulation materials while maintaining specification control, quality inspection and technical support.
Q: What technical documents can you provide?
A: Depending on the material, we can provide ISO, TDS, RoHS, REACH, SGS reports and relevant IEC or UL information for technical evaluation and supplier approval.
