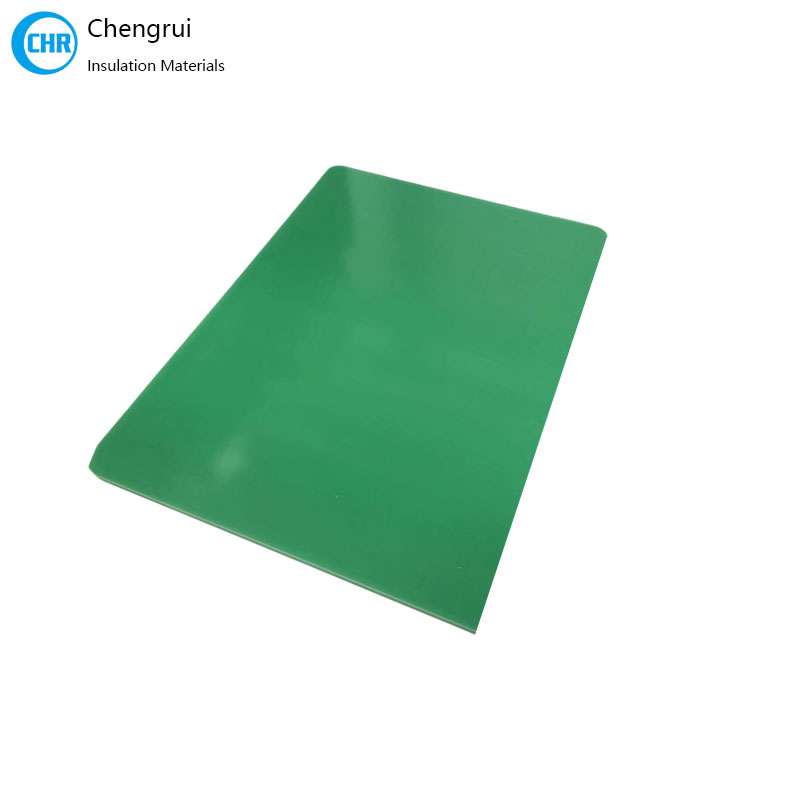

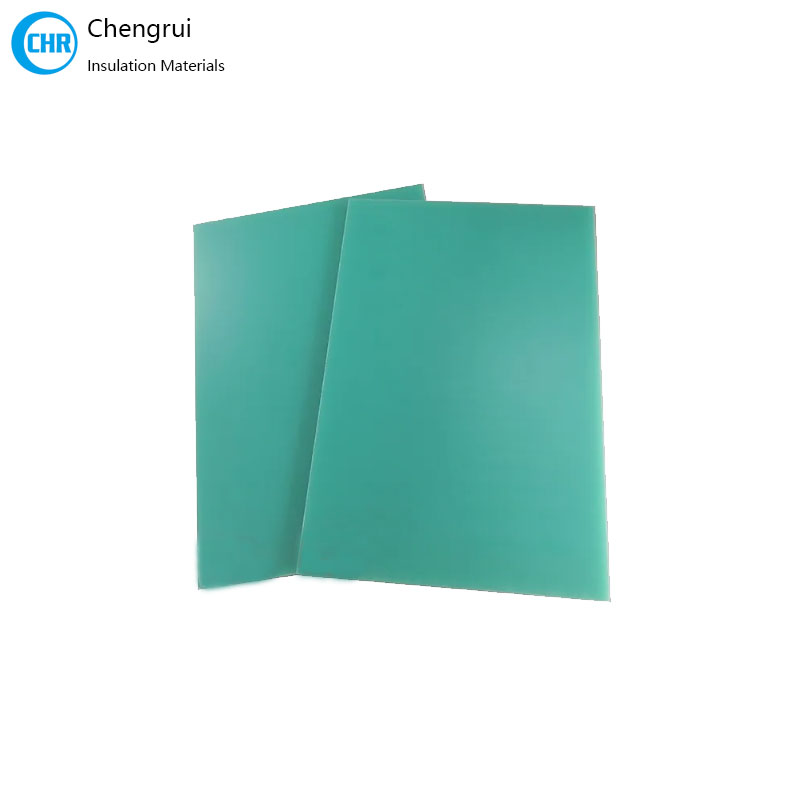

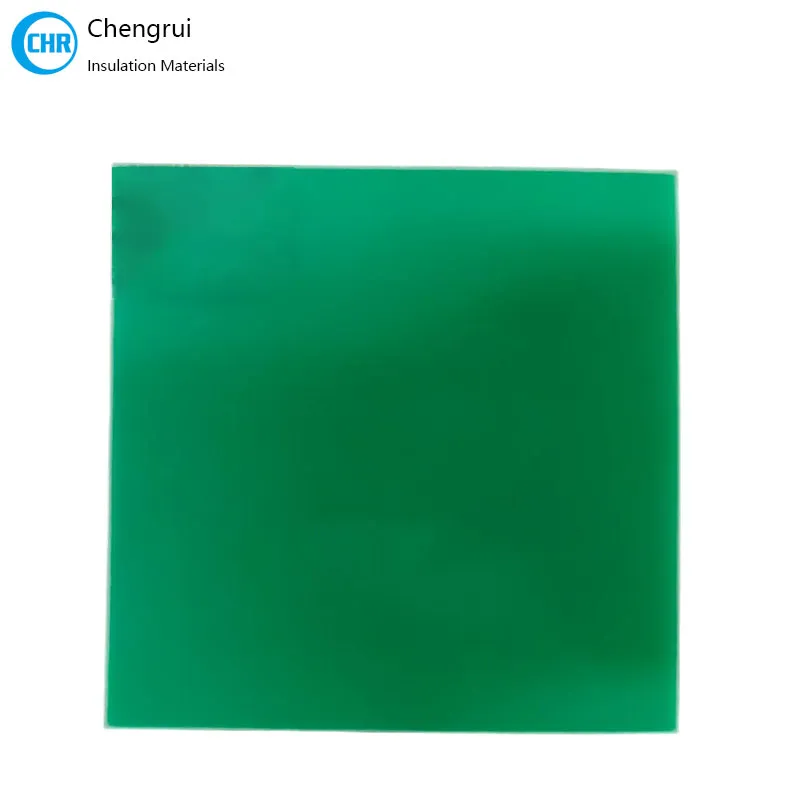

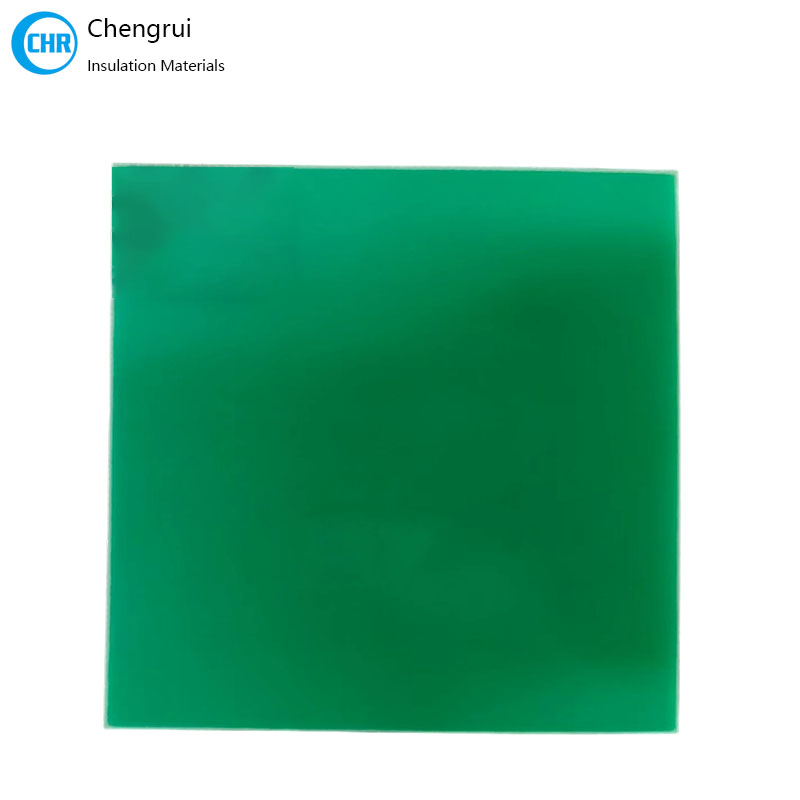

The EPGC308 Epoxy Fiberglass Board is an H-Class (180°C) heat-resistant electrical insulating laminate. It is specifically engineered for high-reliability electrical and mechanical applications under demanding conditions involving high temperature, high voltage, and harsh environments.

Material & Manufacturing

This board is produced by impregnating electronic-grade alkali-free fiberglass cloth with high Tg epoxy resin, followed by curing under heat and pressure. This construction ensures excellent mechanical strength both at room temperature and elevated temperatures, along with stable electrical properties in dry, humid, or transformer oil environments.

Key Features & Specifications

• Base Material: Epoxy Resin + 7628 Fiber Glass

• Heat-resistance: H-Class (180°C)

• Electrical Properties: Maximum withstand voltage from 20kV to 100kV, with reliable performance under humid conditions.

• Physical Characteristics: Yellow-brown in color, available in thicknesses from 0.5mm to 80mm. Standard and customized sheet sizes are supported.

• Compliance: Conforms to IEC60893-2004 and GB/T 1303.4-2009 standards.

Typical Applications of EPGC308 Epoxy Fiberglass Board:

Widely used for slot wedge insulation in H-Class traction motors and large motors, as well as for insulation components in various high-end electrical equipment. Common applications include insulators, winding insulation, switch substrates, motor housings, and other insulating structural parts.
