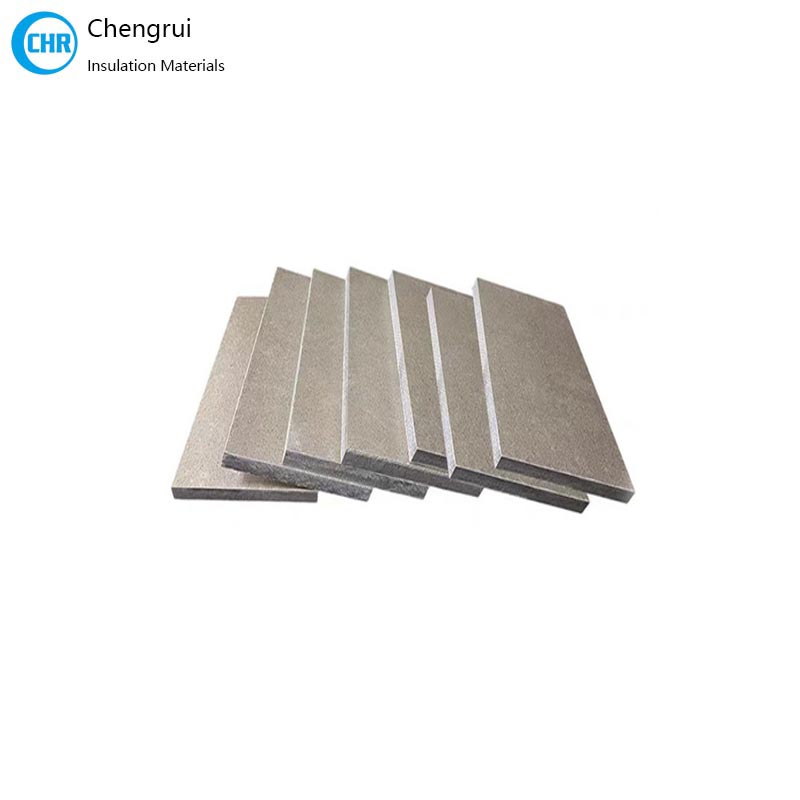

High Performance Mica Insulation Plate
High-performance thick mica insulation plates for extreme heat & insulation. Machinable, asbestos-free, ideal for steel, marine, military & industrial heating. Available in custom sizes up to 150mm thick.
Type: Mica sheet
Standard Sizes: 1000 x 600 mm, 1000 x 1200 mm
Maximum Size: 1000 x 2400 mm
Untrimmed Size: 1016 x 1220 mm
Maximum Thickness: 150 mm
Thickness Tolerance:
2 - 5 mm: ±7%
6 - 30 mm: ±5%
31 - 100 mm: ±3%
Package: Wooden case or pallet, 800-1000kgs per case/pallet
Description

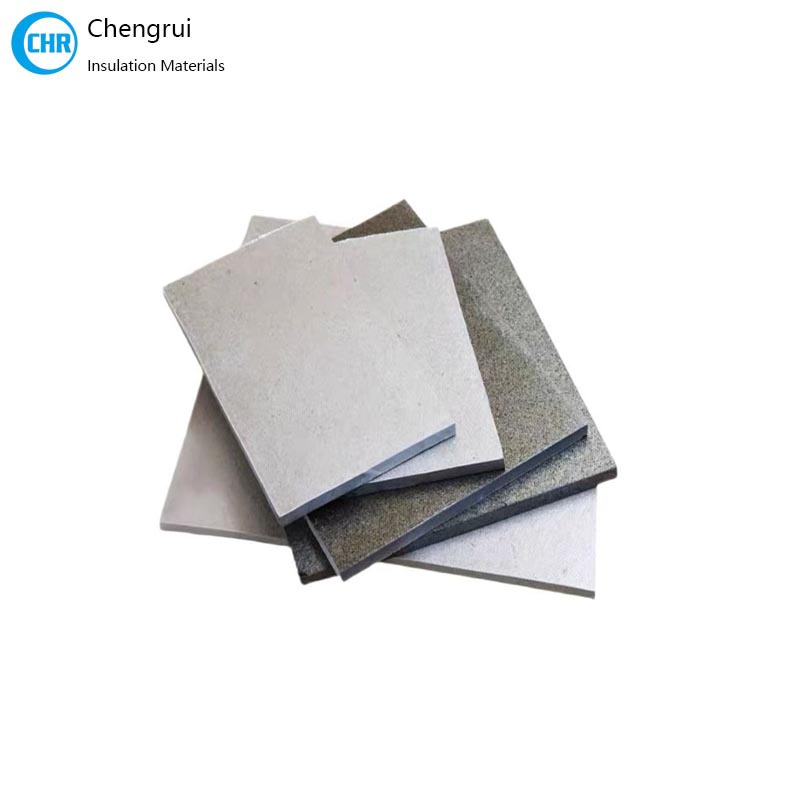

This thick mica insulation plate for high-performance electric heating equipment is a sheet-like insulating and heat-resistant material. It is manufactured using mica paper as the base material, bonded with high-temperature-resistant silicone resin, and processed through high-temperature baking and pressing.
Features of Thick high performance mica insulation sheet:
Excellent High-Temperature Resistance
Superior Electrical Properties
Good Mechanical Strength
Corrosion Resistance
Safe and Non-Toxic
Asbestos Substitute
Good Machinability
Standard Sizes: 1000 x 600 mm, 1000 x 1200 mm
Maximum Size: 1000 x 2400 mm
Untrimmed Size: 1016 x 1220 mm
Maximum Thickness: 150 mm
Thickness Tolerance:
2 - 5 mm: ±7%
6 - 30 mm: ±5%
31 - 100 mm: ±3%

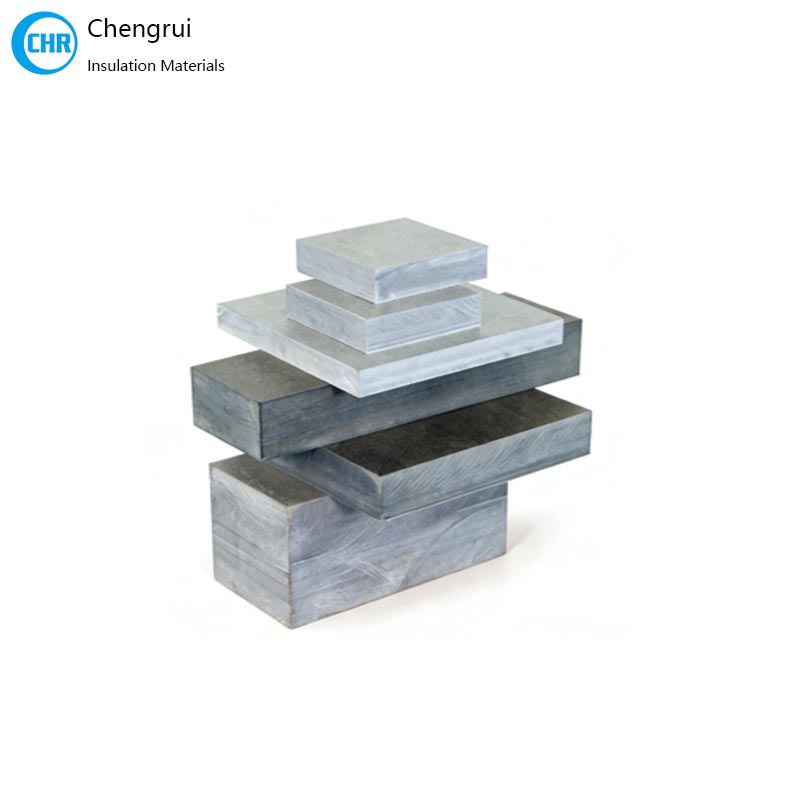

The thick insulation mica sheet can be machined into various components via turning, drilling, grinding, milling, etc., for application in industries and fields such as steel, metallurgy, petroleum, locomotives, military, and shipbuilding.

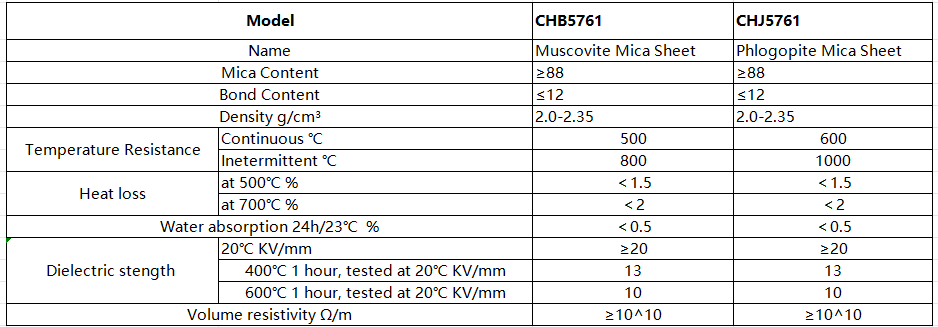

Parameter
| Type | Mica sheet | |||||
| Heat-resistance | 500-700℃ | |||||
| Thickness | 2-150mm | |||||
| Size | 1000X600mm,1000X1200mm,1000X2400mm | |||||
| For more information, please contact us: [email protected] | ||||||
