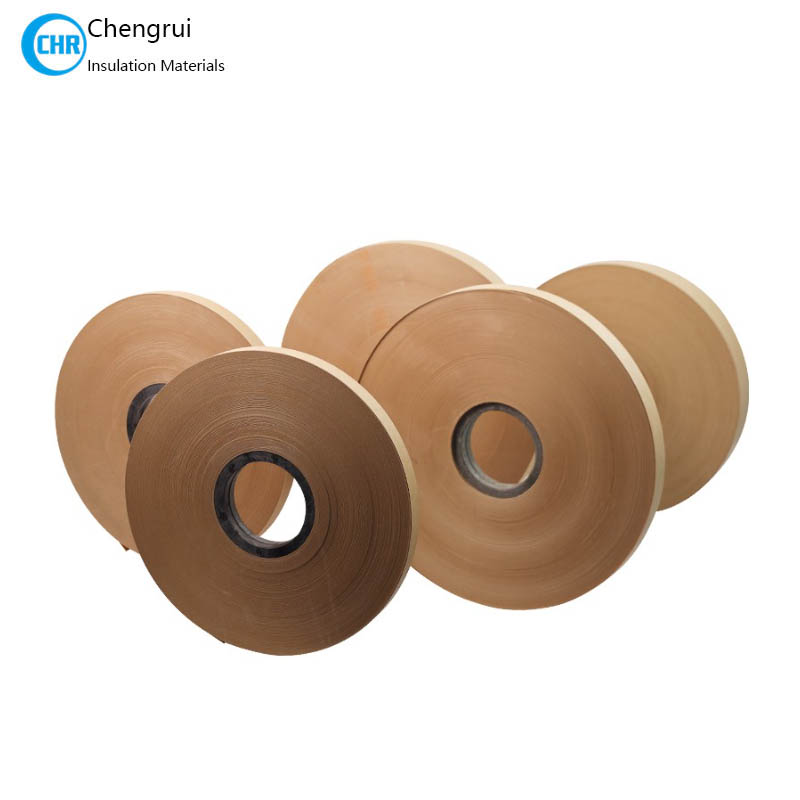

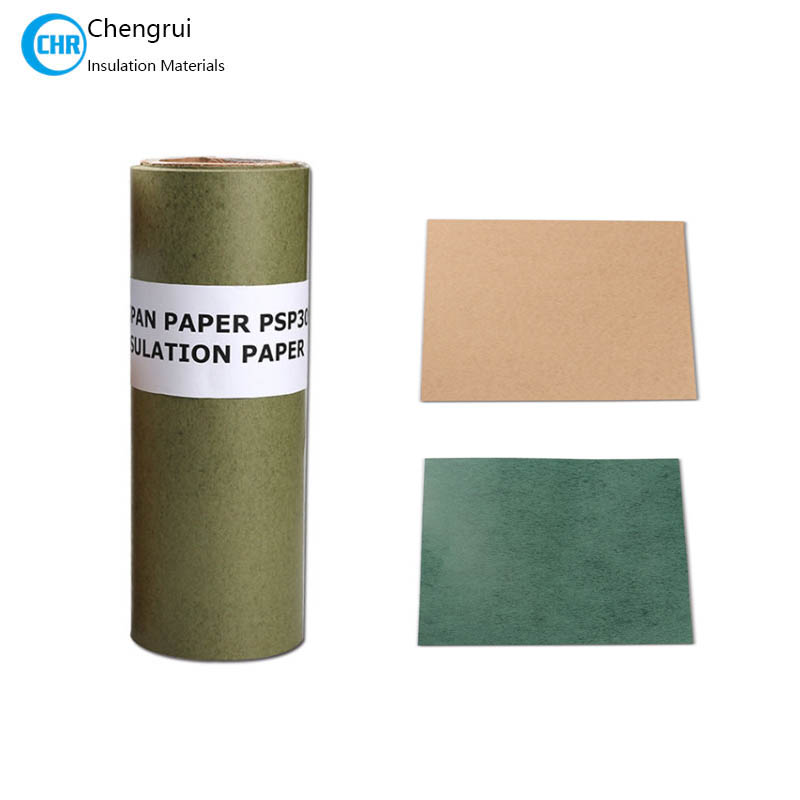

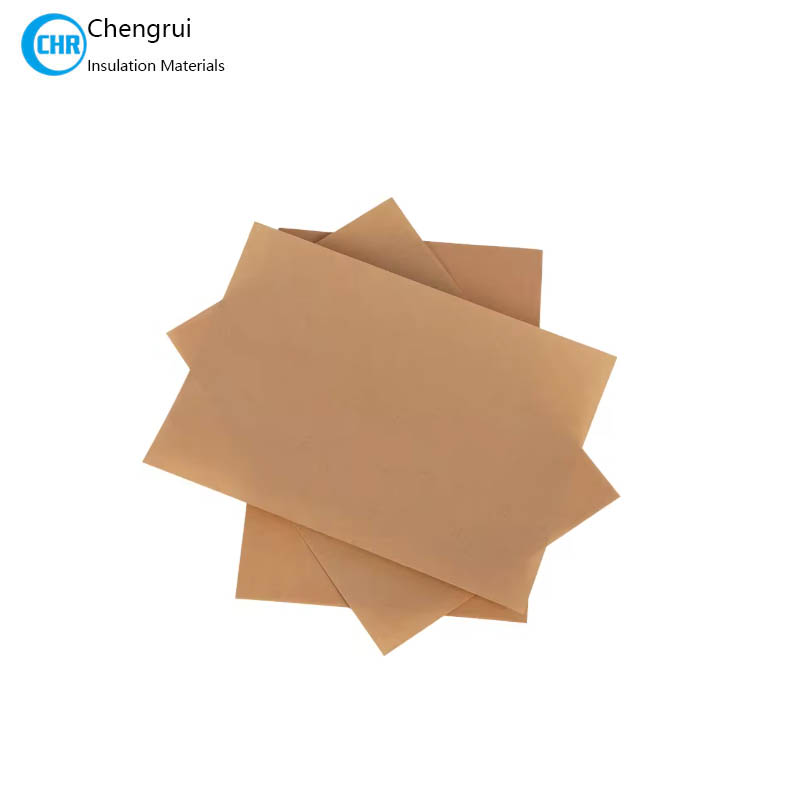

Electrical Insulation PSP 3055 & 3055 SL (Presspaper)

PSP3055 and PSP 3055 SL Presspaper are specialized product manufactured from the purest wood cellulose fibers. With A Class 105℃, particularly suited as an insulating material in electric machines, capacitors, motors, etc., and especially in oil-cooled transformers.

PSP 3055 SL is a natural-coloured, calendered presspaper made of 100 % unbleached sulphate cellulose that is free of all bonding agents, similar to the presspaper PSP 3055. In contrast to the presspaper PSP 3055, however, it has a lower density. For this reason, the capacity for impregnation with fluid dielectrics is improved, which results in shorter impregnation times, greater absorption capacity and greater electric stability after impregnation. But a certain reduction in tensile strengths should be expected.

Main Features

· Insulation class A (105 °C)

· Calendered presspaper, 100 % sulphate pulp

· Colour natural

·Good forming properties

PSP 3055: Density 1.0 - 1.2 g/cm³, Thickness 0.10-1.0mm, Conforms to IEC 60641-3-2 P.2.1B standards.
PSP 3055 SL: Density 0.9g/cm³, Thickness 0.05 - 0.50 mm, Conforms to IEC 60641-3-2 P.4.1A and P.4.1B standards.

Both PSP 3055 and PSP 3055 SL are natural-coloured, calendered presspapers manufactured from 100% unbleached sulphate cellulose. These high-purity insulation materials are specifically engineered for electrical applications, particularly in distribution transformers and capacitors. Manufactured to meet rigorous international standards, both products offer exceptional chemical purity and electrical properties, making them the preferred choice for critical insulation applications worldwide.

Choose PSP 3055 when:

• Mechanical strength is the primary requirement

• Standard insulation thicknesses (≥0.10 mm) are sufficient

• Applications involve demanding winding processes

You need maximum robustness in transformer insulation

Choose PSP 3055 SL when:

• Faster impregnation cycles are needed to increase production efficiency

• Ultra-thin insulation (down to 0.05 mm) is required

• Applications include capacitors or similar components

• Maximum electrical stability after oil impregnation is critical

You can accept slightly reduced tensile strength for improved dielectric performance
