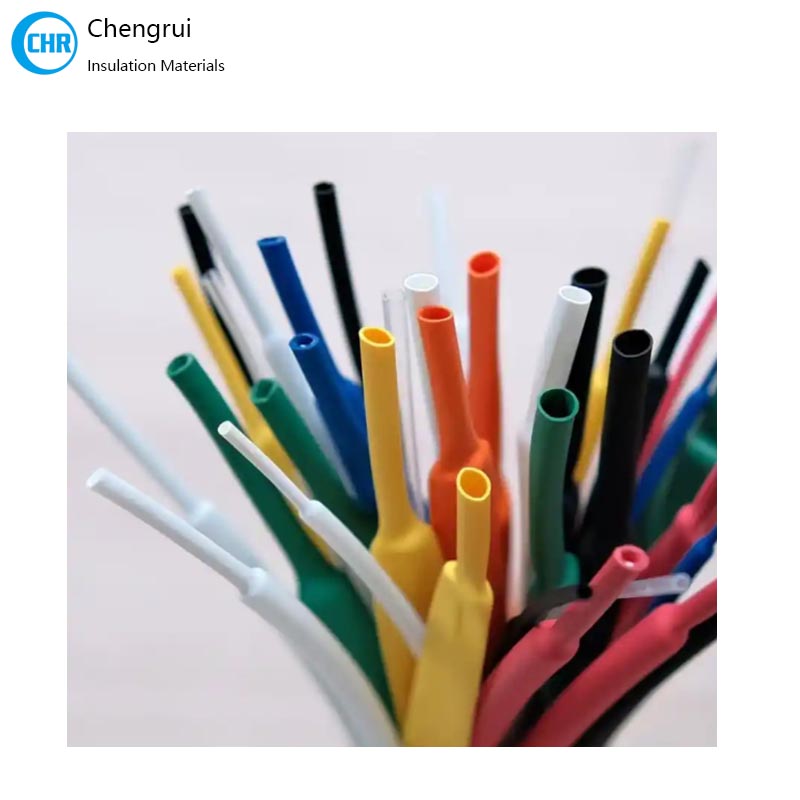

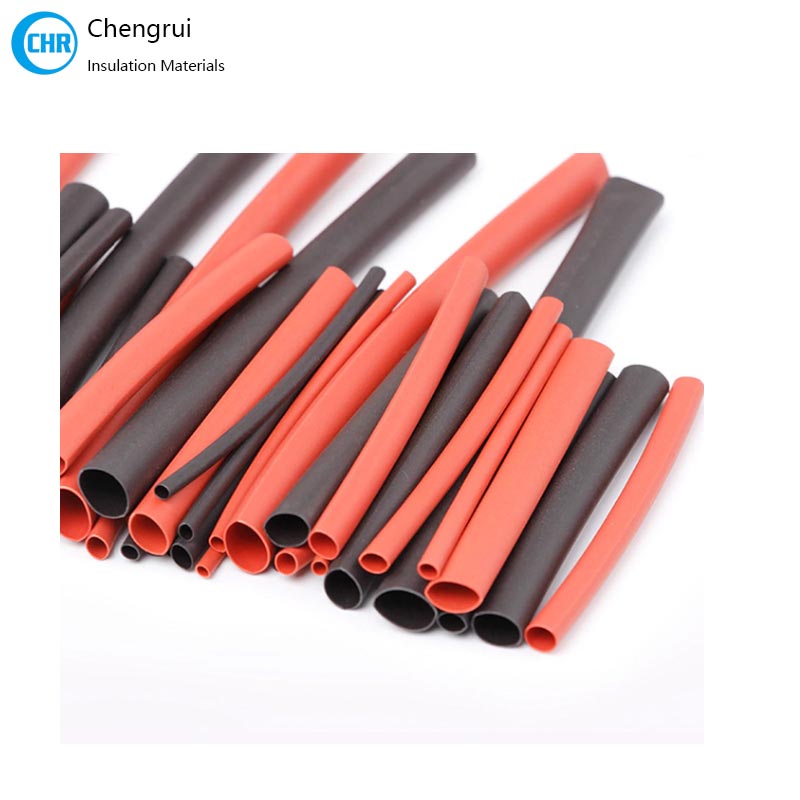

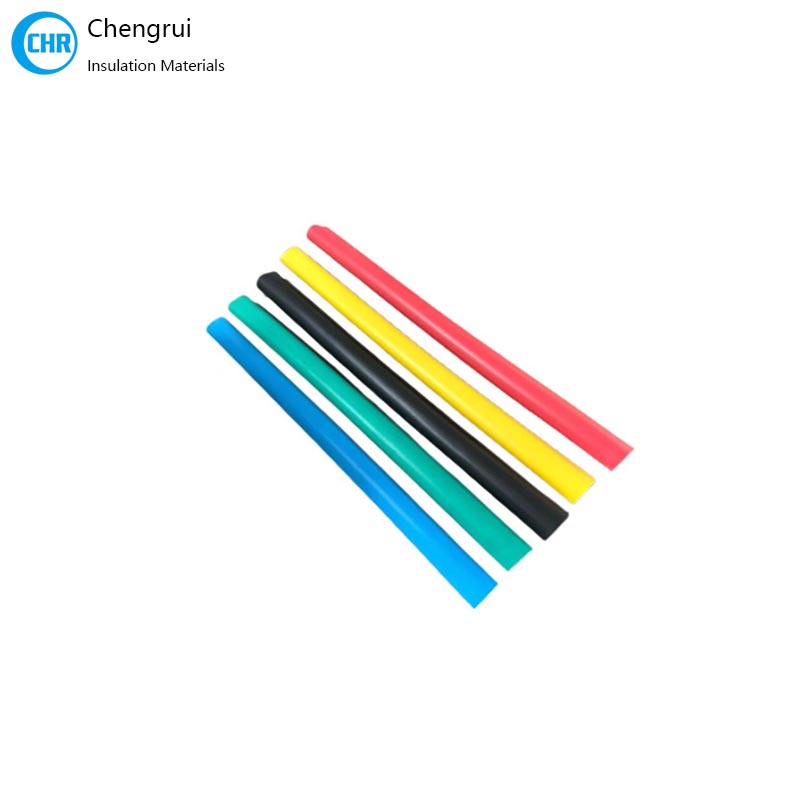

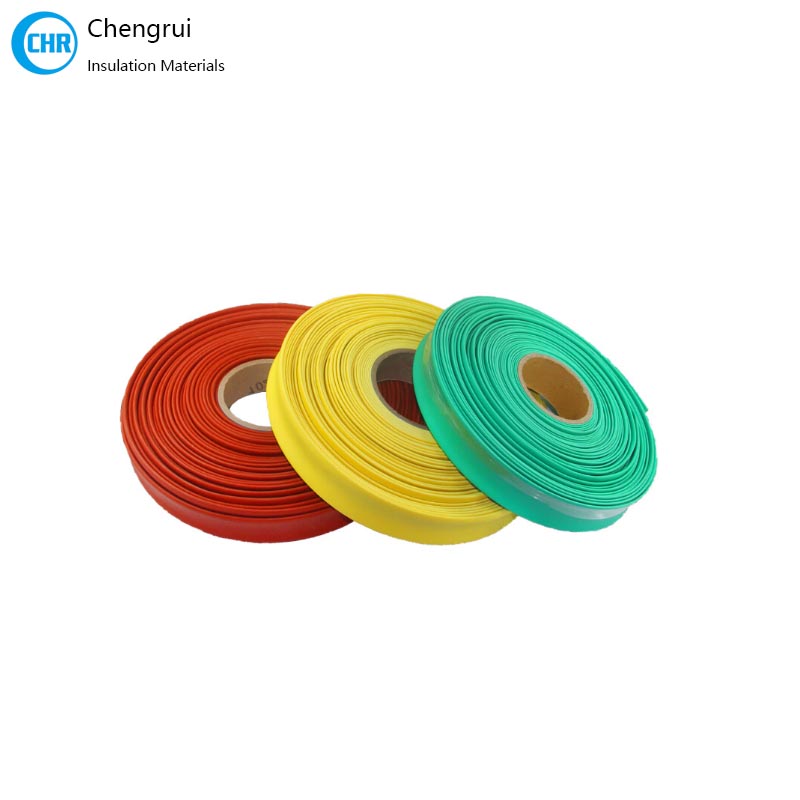

Heat Shrinkable Sleeve PE Shrink Tubes Insulation

Heat shrink tubes is an insulating sleeve made of high-quality PE material. It is resistant to aging, tough, and not easily broken, designed to provide electrical and mechanical protection for wires, cables, and other components. When heated, it shrinks into a tight, fitted shape, thus preventing short circuits and protecting conductors from moisture, dust, and abrasion.

Electrical Insulation: Its primary function is to insulate and prevent short circuits by covering exposed conductors.

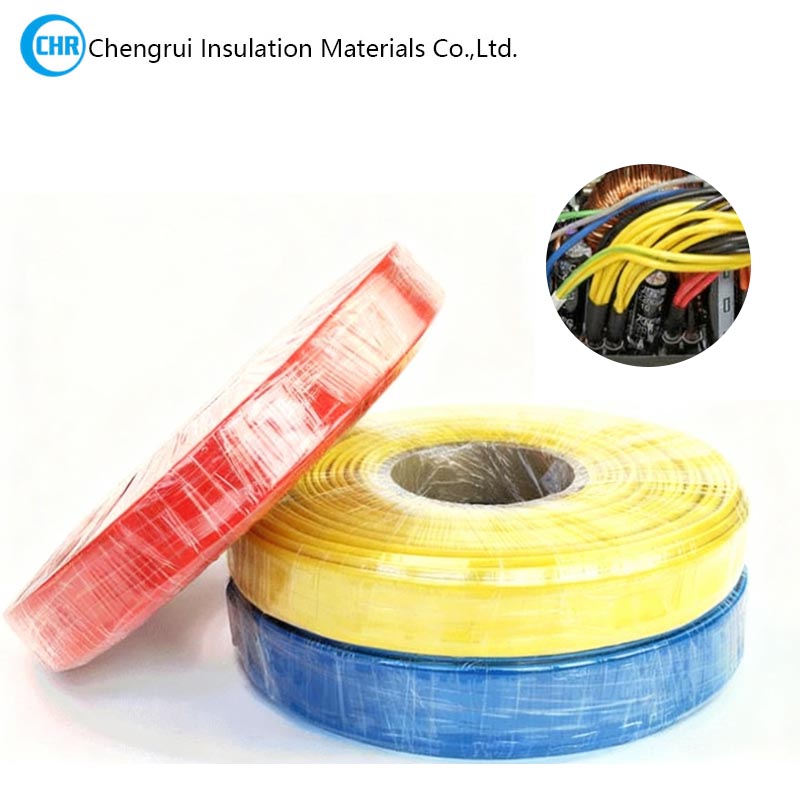

Applications: They are widely used in various fields, from low-voltage electronic equipment to industrial applications requiring high-voltage insulation.
Materials used in heat shrink tubes:

Polyolefins: Polyolefins are the most commonly used material for manufacturing heat shrink tubing. They possess excellent chemical and electrical properties, good flame retardancy, fast shrinkage, and are very durable. Polyolefin heat shrink tubing can withstand temperatures up to 125°C to 135°C and begins to shrink at 100°C. This type of heat shrink tubing is generally best suited for applications such as branding and insulation.

Adhesive-lined heat shrink tubes: Adhesive-lined heat shrink tubing consists of two layers. The outer polyolefin layer and the inner layer begin to shrink at the same temperature. The adhesive layer moves, fills gaps, and ultimately conforms to the contours of the object being wrapped. After the adhesive layer cools, the sealed object can be used as an environmental seal, effectively preventing moisture and other interference.

Other Materials

Besides the adhesive layer, other materials can be used for heat shrink tubing, including polytetrafluoroethylene (PTFE), fluorinated ethylene propylene (FEP), polyvinylidene fluoride (PVDF), elastomers, silicone rubber, fluororubber (Viton), and other specialty materials.

Heat Shrink Tubes Thickness

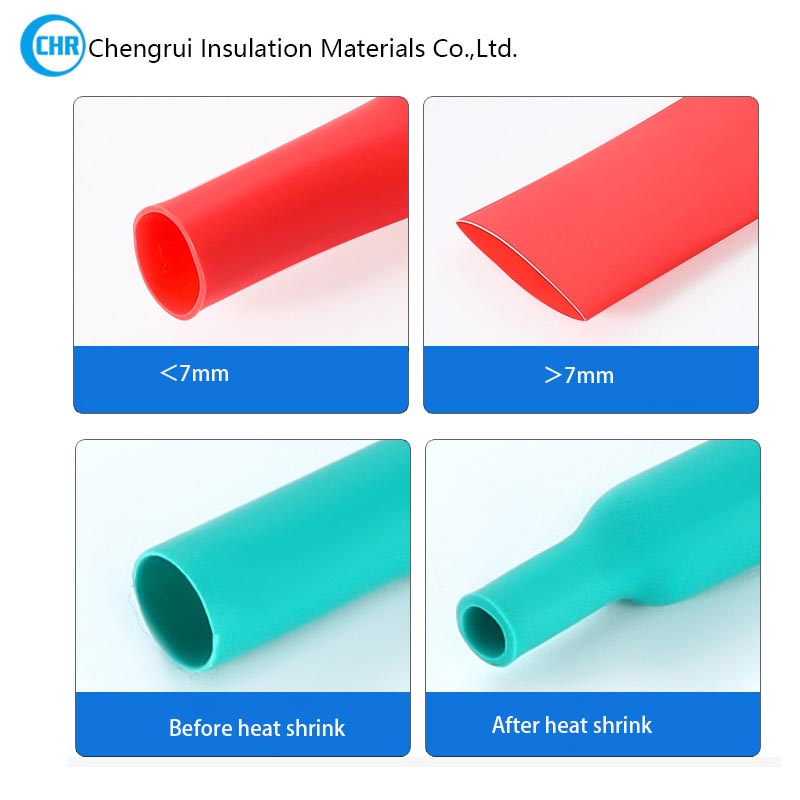

Generally, stretching reduces the thickness of an object; the more you stretch, the thinner it becomes. However, with heat shrink tubing, the opposite is true; the tubing increases in thickness as it shrinks. Please consult the heat shrink tubing datasheet to determine the optimal thickness for your application.

In addition to the above factors, you must carefully select the material, operating temperature, and shrinkage temperature. These factors determine the characteristics of the heat shrink tubing. Learn more about your application and choose the best product from a wide range of cable heat shrink tubing suitable for various high and low power applications.
