FR5 Laminated Insulation Sheet

FR5 laminated insulation sheet is a flame-retardant epoxy fiberglass laminate used in electrical insulation and structural applications where high mechanical strength, dimensional stability and reliable heat resistance are required.

It is made from epoxy resin reinforced with woven glass fiber cloth under heat and pressure. Compared with standard glass epoxy laminates, FR5 is commonly selected for applications that require better thermal performance and flame retardancy while maintaining strong electrical and mechanical properties.

In practical use, FR5 laminated insulation sheet is widely used in:

• electrical insulation parts

• transformers

• electronics

• new energy equipment

• testing boards

• medical equipment

• industrial fixtures and support structures

For buyers who need a rigid laminate that can handle both insulation duty and machined structural use, FR5 is a practical and widely accepted material choice.
Chengrui Insulation supplies FR5 laminated insulation sheets for electrical equipment manufacturers, transformer factories, new energy equipment producers, industrial processors and insulation parts distributors. We can supply FR5 sheets in standard panel sizes or custom-cut sizes, and we also support CNC machining, drilling, milling and part fabrication based on customer drawings.

What Is FR5 Laminated Insulation Sheet?

FR5 is a glass fiber reinforced epoxy insulation material. It belongs to the family of thermoset laminated materials used in the electrical and electronic industry.

Its structure is based on:

epoxy resin+ glass fiber cloth

The cross-layered fiberglass reinforcement gives the material:

higher strength

better rigidity

improved dimensional stability

stronger resistance to deformation under working conditions

FR5 vs FR4: FR5 is usually selected when a higher temperature class or stronger thermal performance is required.

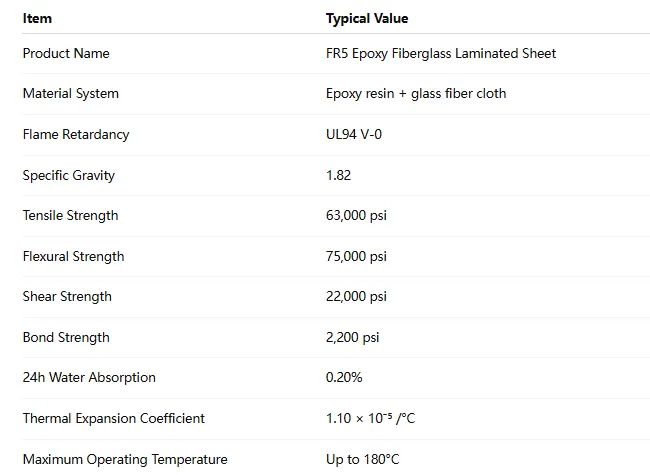

Main Features of FR5 Laminated Insulation Sheet

1. Flame Retardant

FR5 material has good flame-retardant performance and complies with UL94 V-0. This is one of the main reasons buyers select FR5 instead of general-purpose epoxy fiberglass sheets.

2. High Mechanical Strength

The fiberglass reinforcement gives the material strong structural performance and stiffness, making it suitable for both electrical insulation parts and machined industrial components.

3. Good Electrical Insulation

FR5 sheet is widely used in electrical insulation applications because it provides reliable dielectric performance in demanding equipment environments.

4. Excellent Dimensional Stability

The sheet remains flat, straight and dimensionally stable, which is important for machining, assembly and long-term use.

Available Sizes and Thickness Range

We can supply FR5 laminated insulation sheet in the following regular sizes:

1020 × 1220 mm

1220 × 2040 mm

1220 × 2440 mm

1020 × 2040 mm

Custom sizes are also available according to customer requirements.

Thickness Range: 0.1 mm to 250 mm

This wide thickness range allows FR5 to be used not only as a thin electrical insulation sheet, but also as a thicker structural board for machined industrial parts.
Available colors: Green, Natural, Yellow, Black

Why Buyers Choose FR5 Instead of Standard Laminates

Buyers usually move to FR5 laminated insulation sheet when the project needs more than basic insulation.

Typical reasons include:

the part must be flame retardant

the material must keep mechanical strength at elevated temperature

the board must stay flat and stable during machining

the customer needs low water absorption

the application combines electrical insulation and structural support

For many engineers, FR5 is not chosen just because it is “higher grade.”

It is chosen because the project needs a material that is more reliable in heat, machining and long-term service conditions.

FR5 vs FR4 vs G11

This is a common purchasing question.

FR5 vs FR4: Both are glass epoxy laminates, but FR5 is generally chosen when higher temperature resistance and stronger thermal performance are required.

FR5 vs G11: FR5 and G11 are very close in material system and general performance level. A practical difference is that FR5 is commonly positioned as a flame-retardant grade, while G11 is often discussed more from the temperature-class side.

Machining and Custom Processing Support

FR5 laminated insulation sheet is suitable for many forms of secondary processing, including:

CNC cutting

drilling

milling

grinding

shaping

polishing

We can support both raw sheet supply and machined insulation parts according to drawings or samples.

FAQ

Q1: What is FR5 laminated insulation sheet?

A: FR5 laminated insulation sheet is a flame-retardant epoxy fiberglass laminate used for electrical insulation and structural applications.

Q2: What is the difference between FR5 and FR4?

A: FR5 is generally selected when higher thermal performance and flame-retardant insulation performance are required compared with standard FR4 applications.

Q3: Is FR5 the same as G11?

A: FR5 and G11 are very close in material family and general performance, but FR5 is commonly positioned as a flame-retardant grade.

FR5 laminated insulation sheet is a practical and high-performance epoxy fiberglass laminate. For buyers who need more than a standard insulation sheet, FR5 offers a reliable balance of electrical, thermal and structural performance.
