Product Overview : Get Latest Price

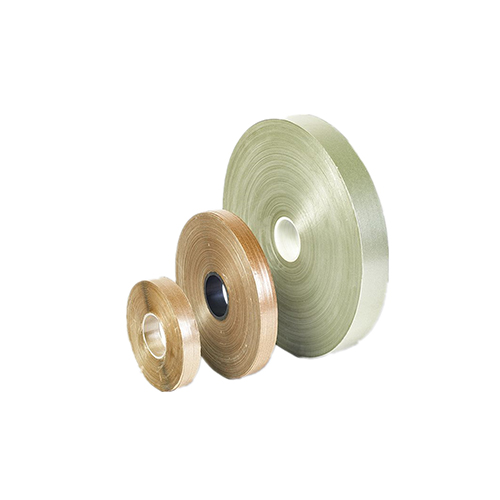

Mica tape is a kind of tape insulating material, which is made of mica paper or powder-mica paper, electronic alkali-free glass fiber cloth, impregnated with high-temperature silicone resin or TUNG-MA epoxy adhesive, and laminated, baked, and sliced.


Additional Information

Type: Mica tape

Material: Mica

Thickness: 0.08mm-0.18mm

Width: 4.5mm-1000mm

Length: 500m 1000m 2000m. Traverse wound spools optional

Standard cores: 52mm 54mm 76mm 120mm

Application: Insulators, Electrical Winding Insulation, Electrical Base, Shell, Motor, Insulating Varnish, Switch Baseplate, Household Electric Appliances and Metallurgy


Request
Callback
Yes! I am Interested
Product Price :Get Latest Price
Request
Callback

Mica Tape | Mica Glass Tape | Mica Insulation Tape Manufacturer

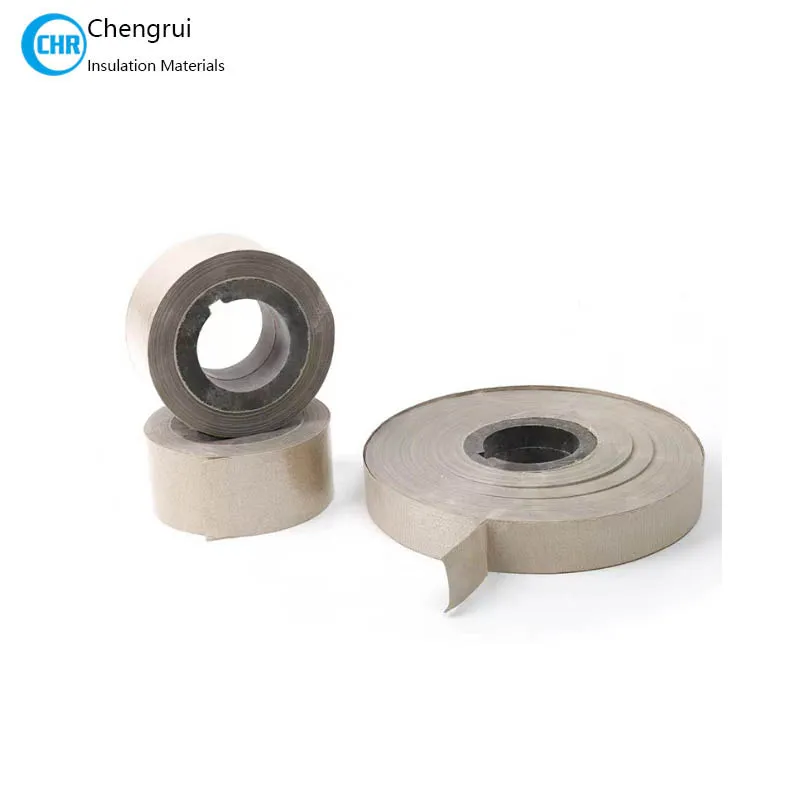

Mica Insulation Tape Introduction

Mica tape is a kind of tape insulating material, which is made of mica paper or powder-mica paper, electronic alkali-free glass fiber cloth, impregnated with high-temperature silicone resin or TUNG-MA epoxy adhesive, and laminated, baked, and sliced.


Mica Insulation Tape Specifications

Item/Thickness (mm)

0.08

0.10

0.11

0.12

0.13

0.14

0.15

Appearance

No alien material, no split, scar and hole, no broken folded

Length(m)

500/1000/2000

Thickness Tolerance (mm)

±0.015

Unite Weight (g/m2)

110±10

135±10

145±10

165±15

185±15

205±15

215±15

Mica Content (%)

>55

>60

>63

>65

>70

>70

>70

Breakdowm Voltage (KV)

>1.0

>1.1

>1.3

>1.5

>1.7

>1.8

>2.0

Tensile Strength (N/15mm)

≥150

≥160

≥180

≥200

≥200

≥200

≥200

Binder Content (%)

13±3

13±3

13±3

13±3

13±3

13±3

13±3

Fire Resistance (°C)

750°C -800°C, IEC331



Mica Insulation Tape Properties:

Mica Tape | Mica Glass Tape | Mica Insulation Tape Manufacturer



Mica Insulation Tape Applications:

Mica Tape | Mica Glass Tape | Mica Insulation Tape Manufacturer

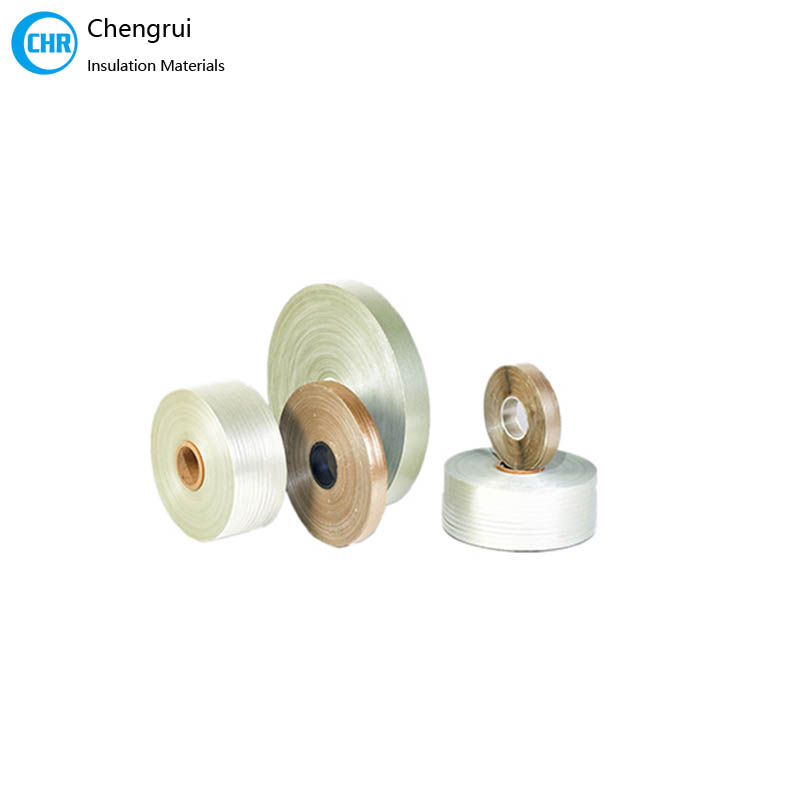

Type of Mica Tapes

1. According to the different types of mica, it can be divided into phlogopite mica tape, muscovite mica tape, calcined mica tape, and synthetic mica tape.

2. According to the different reinforcing materials, it can be divided into glass fiber reinforcing band, film reinforcing band, glass fiber + film reinforcing band (three in one zone).

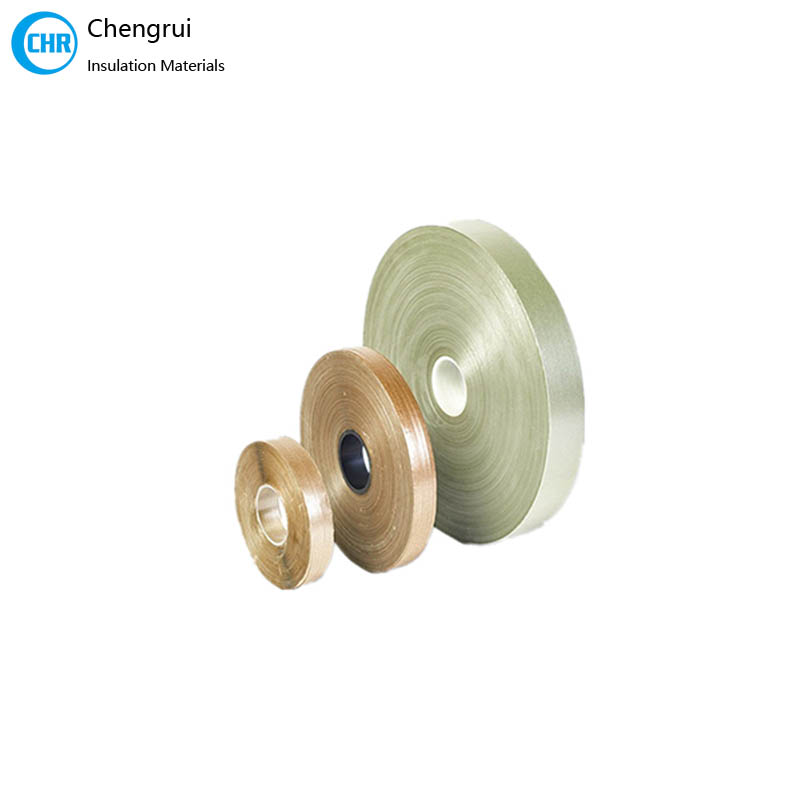

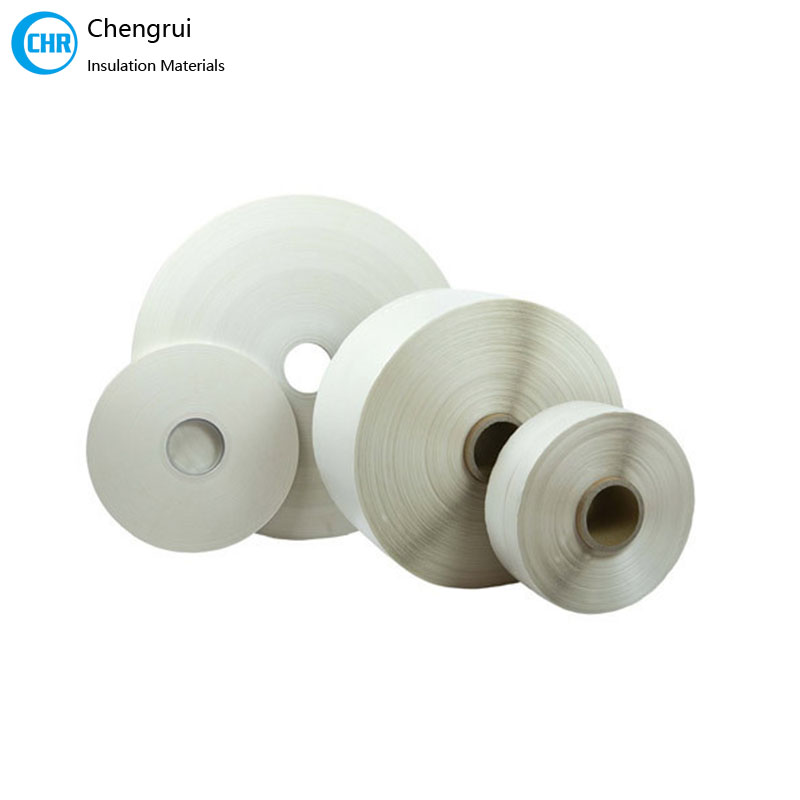

3. According to the shape of mica it can be divided into mica tape and powder-mica tape. The mica tape is widely used in special fire-resistant and flame-retardant cables. The powder-mica tape is widely used in large and medium-sized high voltage motors/alternators operating at 155°C.

4. There is also polyamide film epoxy powder-mica tape, vacuum pressure impregnation of epoxy mica tape, etc.



Storage

In a dry environment at room temperature, the storage period is 3 years.



Packaging

One pack is usually at 50kg, sealed with plastic film, and packed in a carton. The fumigation-free pallet shall be used when exporting. Each pallet contains <1000KG, or protected by a metal drum.
