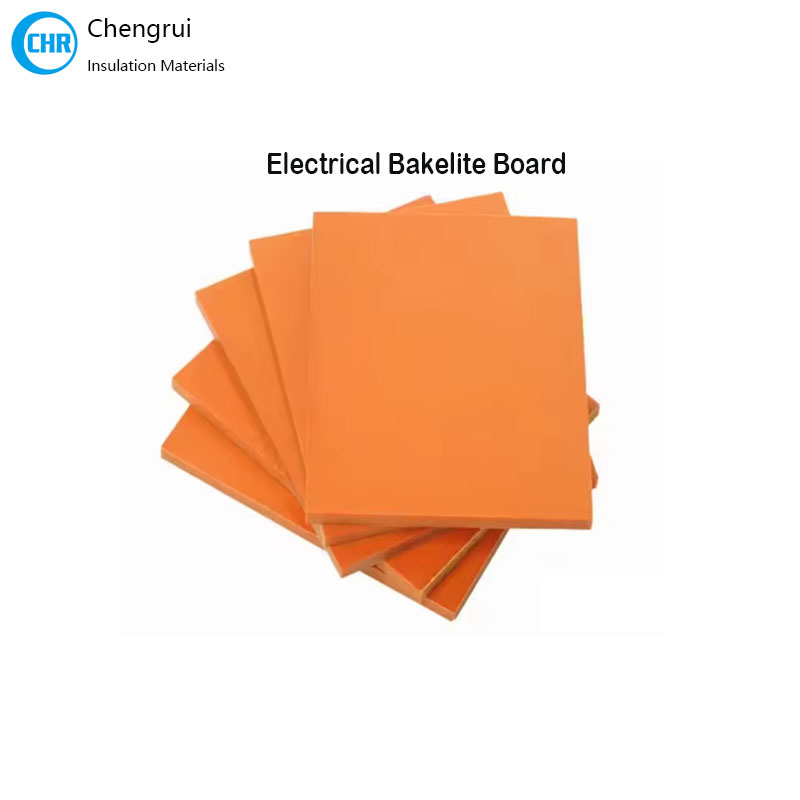

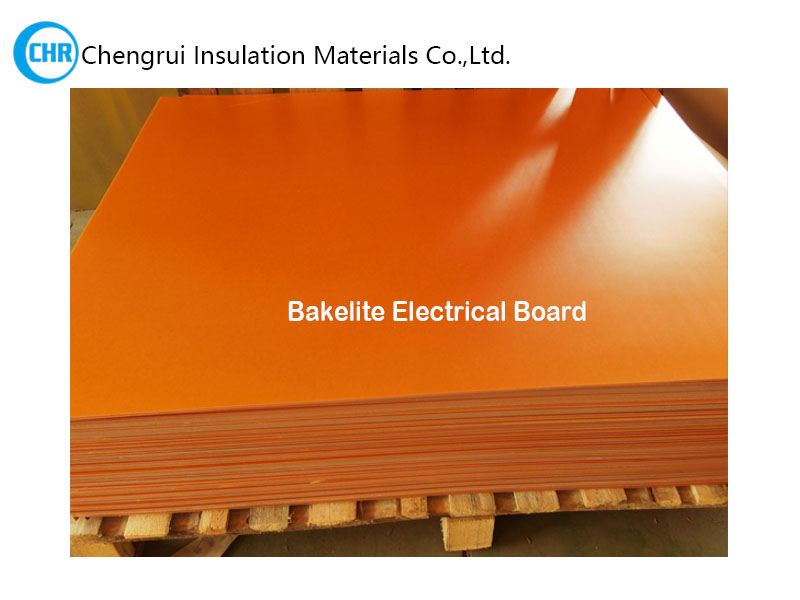

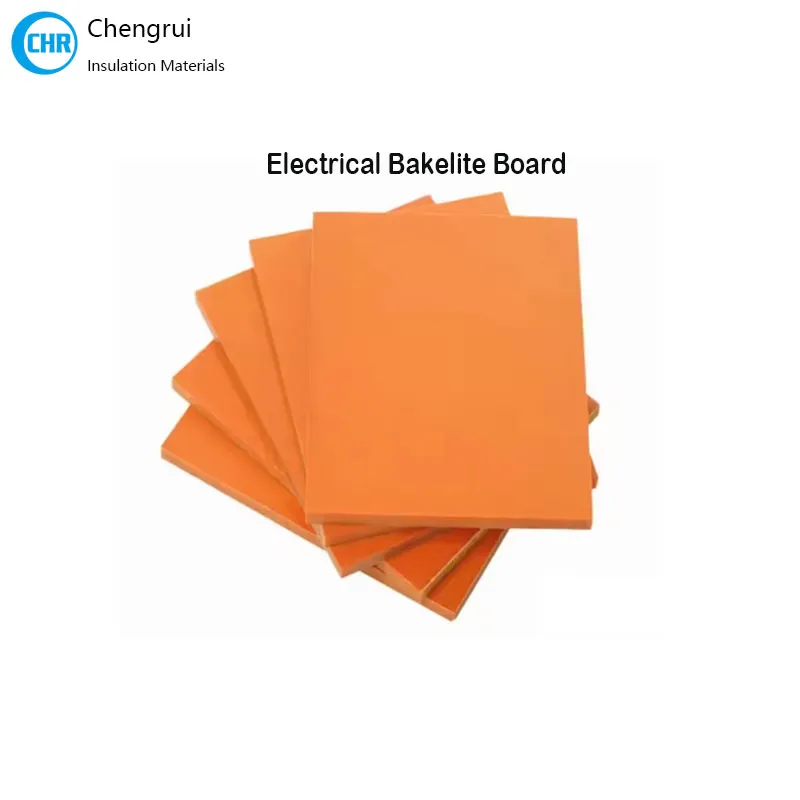

Bakelite Insulation Electrical Board

Bakelite is a generic named material based on the thermosetting phenol formaldehyde resin polyoxybenzylmethylenglycolanhydride. It was used for its nonconductive and heat-resistant properties in radio and telephone casings and electrical insulators.

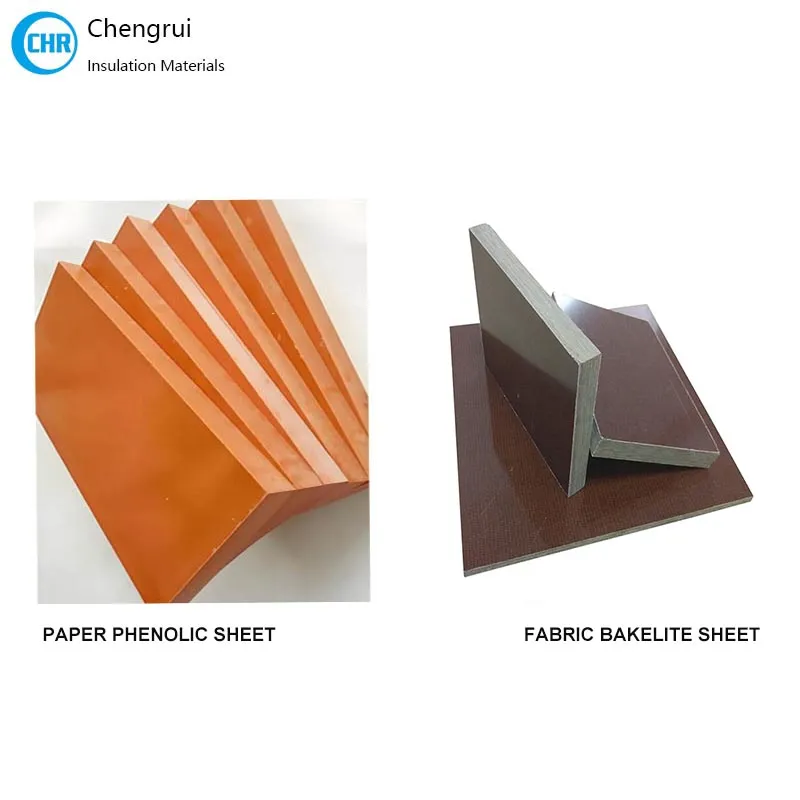

Bakelite boards are mainly classified into different types based on their reinforcing materials. Common types include paper phenolic board and cotton fabric phenolic board, which use paper and cotton fabric as the base material, respectively, giving the boards different mechanical and electrical properties.

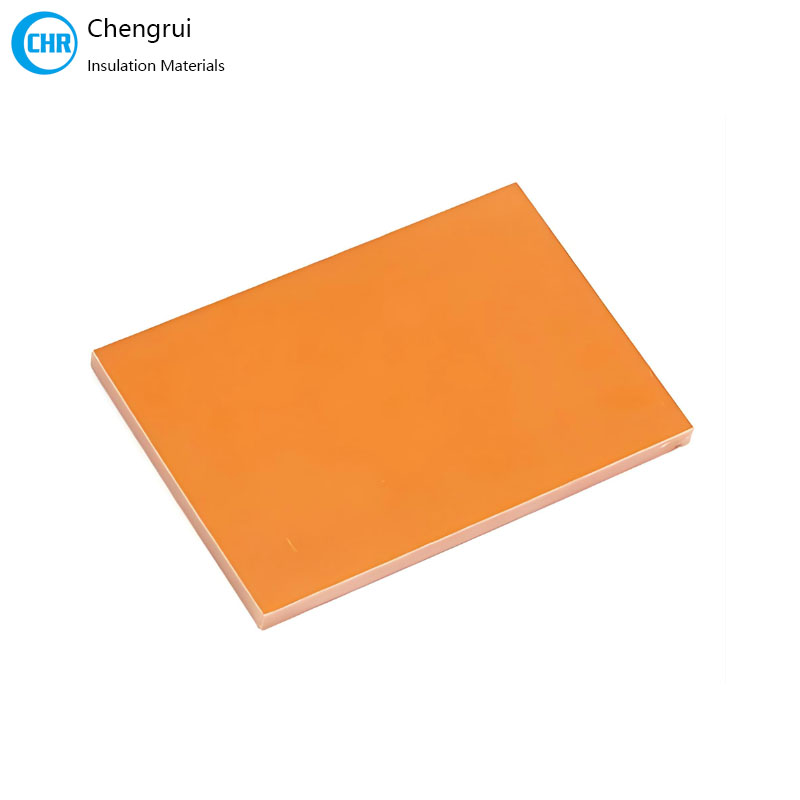

3021 Paper Phenolic Sheet:

Base material: Bleached wood pulp paper or cotton linter paper.

Characteristics: Commonly used, general-purpose, with good electrical insulation, mechanical properties, and processability, suitable for general electrical and mechanical applications.

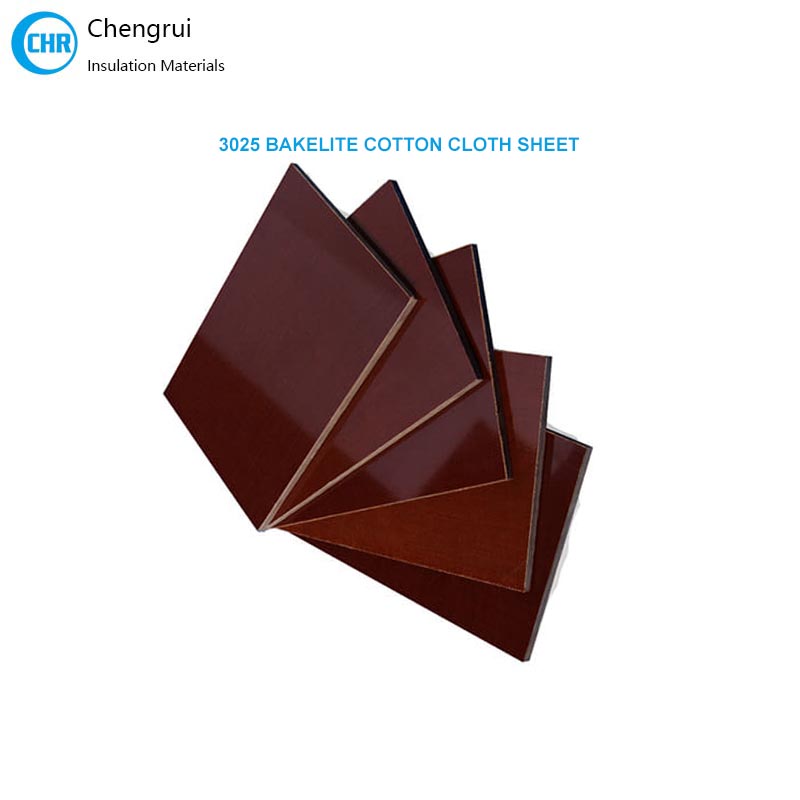

3025 Phenolic Fabric Sheet:

Base Material: Fine-woven cotton fabric or canvas.

Features: Superior mechanical strength (especially impact strength) and abrasion resistance compared to cardboard, suitable for structural components requiring higher mechanical properties.

Materials and Structure of Bakelite Insulation Board:

Process: Manufactured through impregnation, drying, and high-temperature, high-pressure lamination, resulting in a dense and uniform structure.

Typical Specifications of Electrical Bakelite Board:

Thickness: 0.5mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm, 5.0mm, 10mm, 20mm, etc. (custom sizes available upon request).

Dimensions: Standard sheet sizes are typically 1000mm x 2000mm or 1220mm x 2440mm, but custom sizes are also available.

Colors: Orange (natural color), black, red, etc.

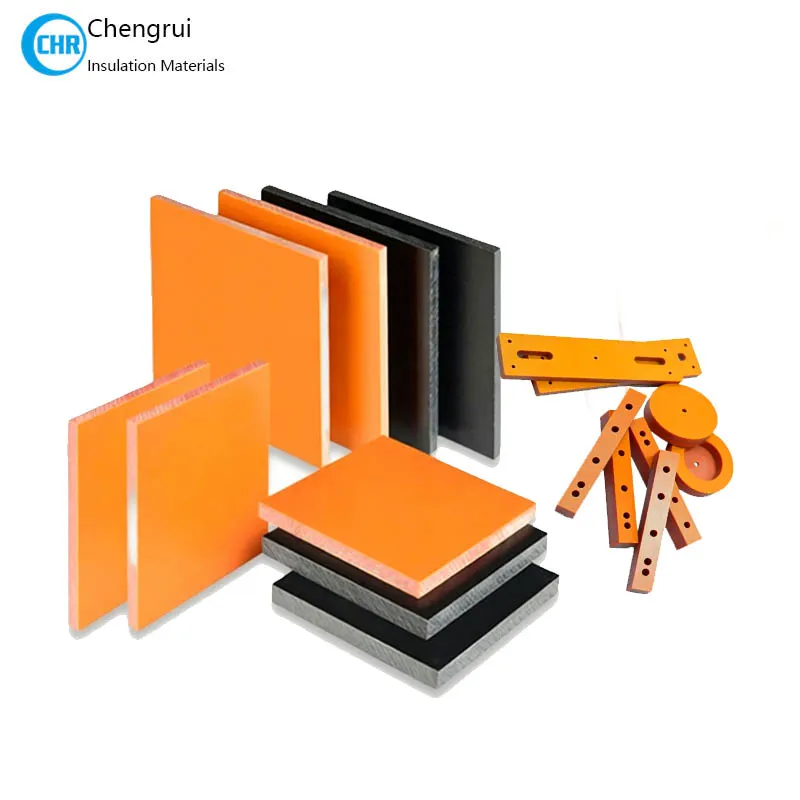

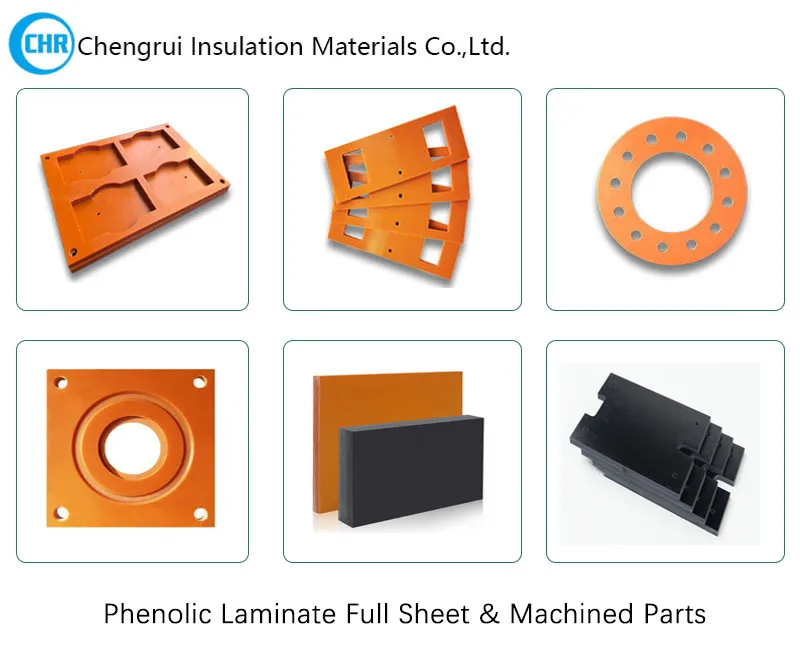

We can also make CNC machining parts.

Advantages of Bakelite Insulation Board:

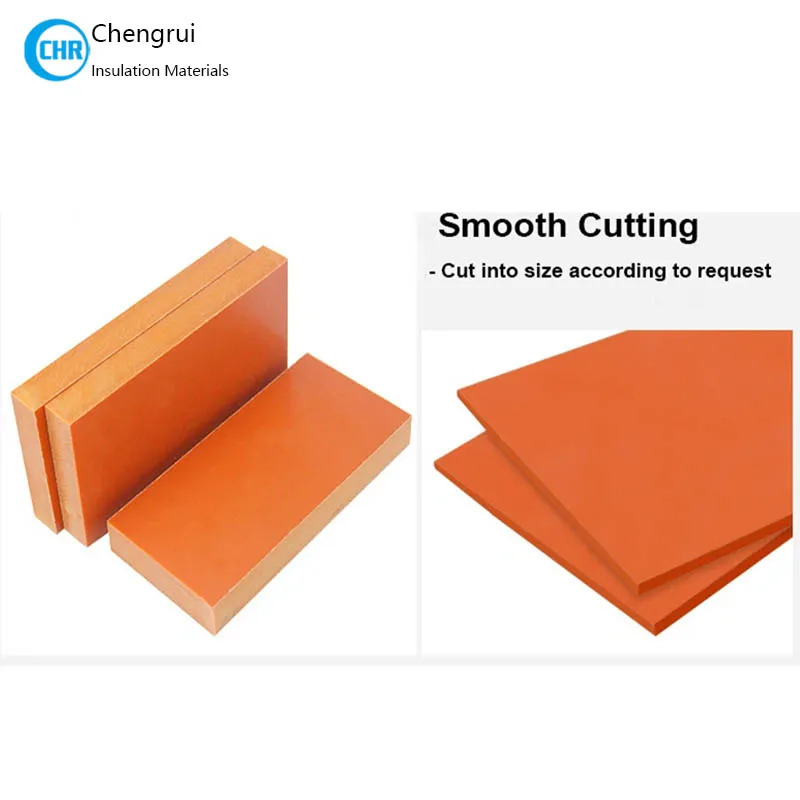

1. Excellent Machinability: Can be easily stamped, drilled, milled, turned, and sheared into various complex shapes without delamination or chipping.

2. High Mechanical Strength: Offers high rigidity, impact resistance, and compressive strength, making it suitable for structural components.

3. Good Electrical Insulation: Provides reliable dielectric strength in both dry and humid environments.

4. Excellent Moisture and Chemical Resistance: Offers good resistance to moisture, oils, and most solvents.

5. Cost-Effectiveness: Offers a very high cost-performance ratio among engineering plastics that provide comprehensive performance.

Main Application:

Bakelite insulation sheets are widely used in applications requiring a combination of insulation and structural support:

Electrical Equipment: Partitions, support plates, and arc-quenching grids in high and low voltage switchgear; transformer insulation components; contactor bases.

Motors and Generators: Slot wedges, insulating gaskets, terminal blocks.

Electronics: Fixtures, jigs, and universal circuit boards for electronic testing.

Mechanical Engineering: Gears, bearing housings, wear-resistant plates, and light-duty structural components.
