PMP Capacitor Insulation Paper is a three-layer flexible insulating material, formed by two-layer of electrical insulation capacitor paper and one-layer of polyester film with a specialized adhesive.
Type: PMP Capacitor Paper
Heat-resistance: B Class 130°
Width: 555 mm or customized
Thickness: 0.05 mm - 0.13 mm or customized
Description
PMP Capacitor Insulation Paper is a three-layer flexible insulating material, formed by two-layer of electrical insulation capacitor paper and one-layer of polyester film with a specialized adhesive.
Structure & Composition of PMP capacitor insulation paper:

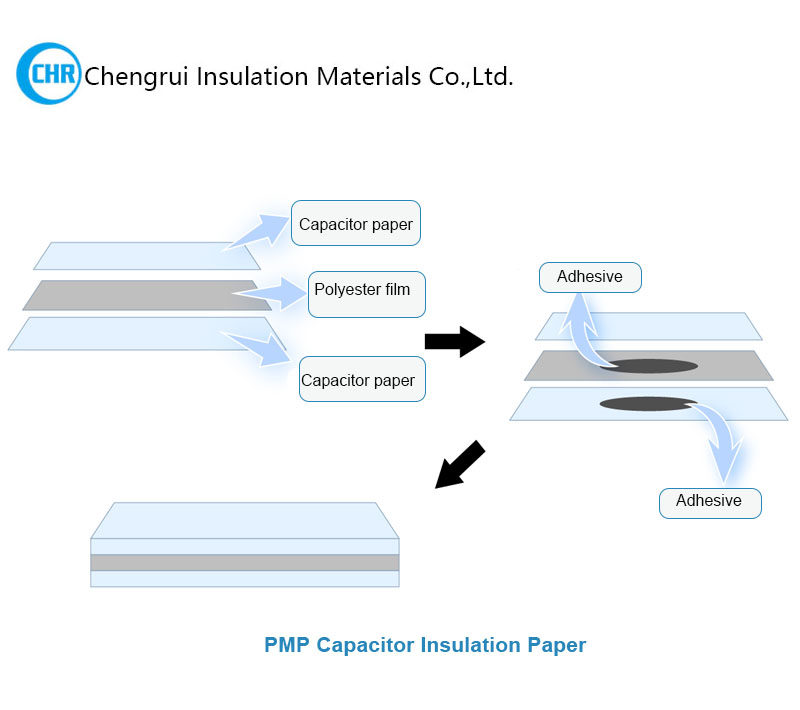

PMP paper is manufactured by calendering two outer layers of fine capacitor paper with a central core of polyester film, bonded together by a specialized adhesive. This robust construction combines the benefits of all three components into a single, unified material.
Top and bottom: Two layers of capacitor paper
Middle layer: One layer of polyester film
An adhesive bonds these three layers together and then calenders them.
The PMP capacitor insulation paper offers excellent dielectric strength and mechanical properties, including high insulation resistance, robust tensile strength, and good temperature tolerance. This material is widely used in the manufacturing of cast resin voltage transformers, electrical motors, and various other electrical equipment where reliable insulation performance is essential.
It ensures reliable electrical insulation in high-voltage environments, and offers a unique balance of durability and formability, allowing it to conform to various shapes without cracking.
Standard & Customizable: Available in standard thicknesses from 0.05mm to 0.13mm and can be customized to meet specific design requirements.
Parameter
| Type | PMP Capacitor Paper | |||||
| Heat-resistance | B Class 130° | |||||
| Thickness | 0.05 mm - 0.13 mm or customized | |||||
| Width | 555 mm or customized | |||||
