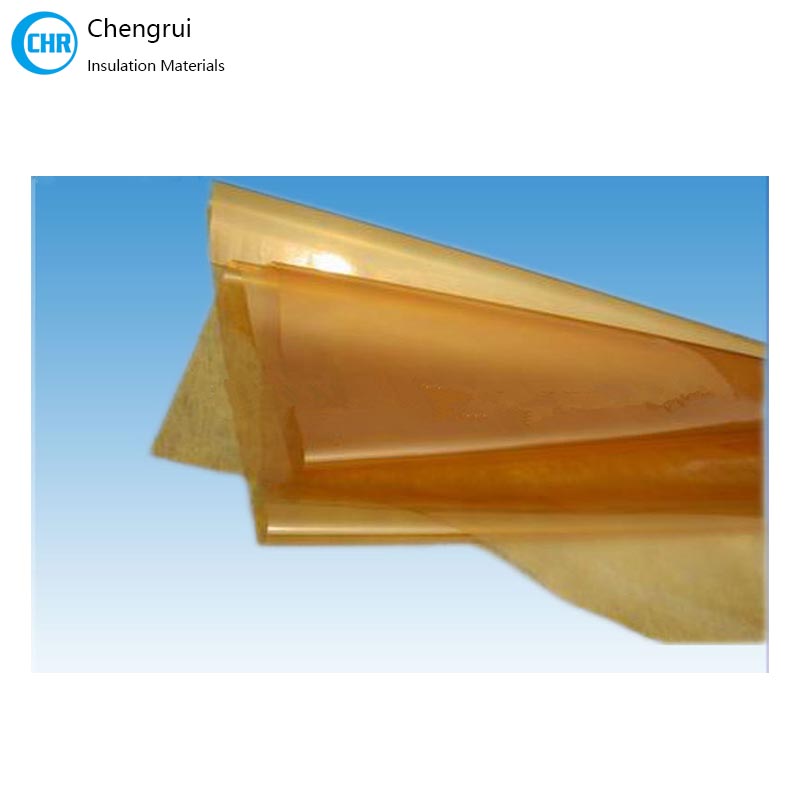

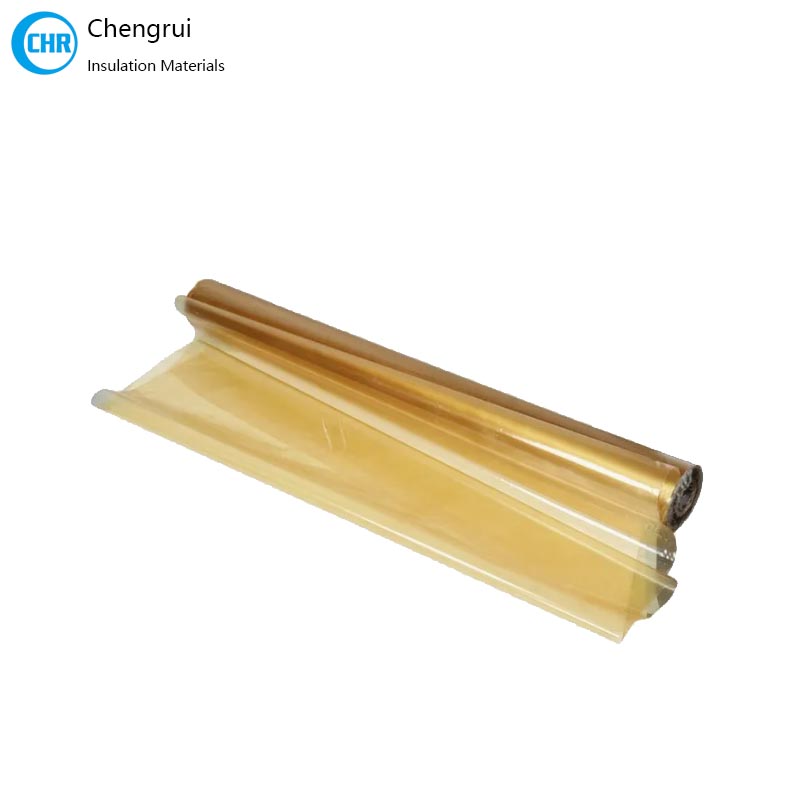

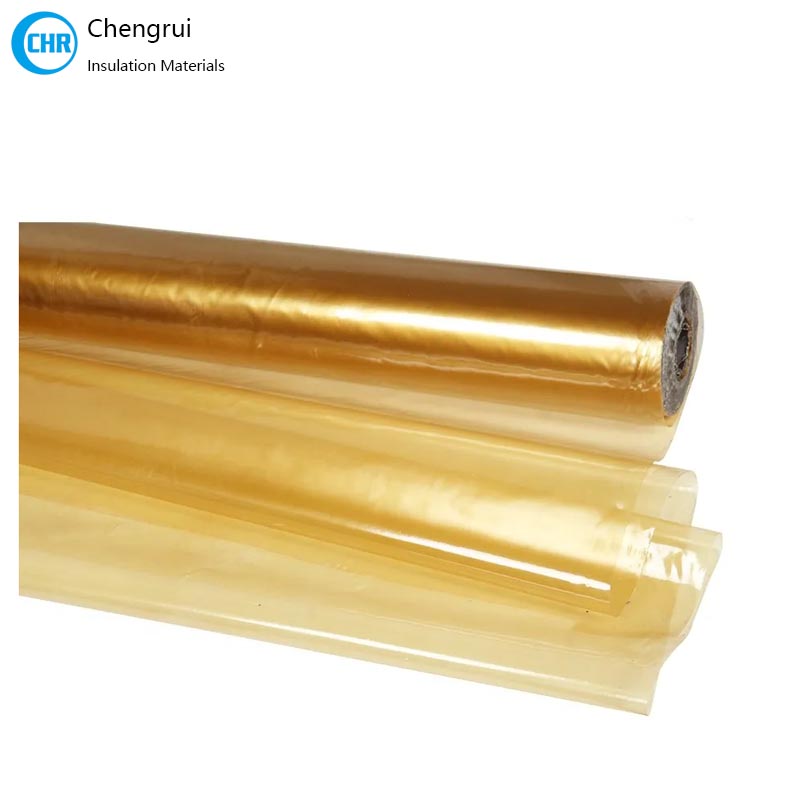

2310 Synthetic Oil Varnish Cotton Cloth

Materials and Structure

This insulation oil-varnished material uses cotton cloth as the base material, which, due to its natural softness and flexibility, can tightly conform to irregular coil shapes. Through impregnation with insulating varnish and curing, a smooth, flexible, and uniform insulation layer is formed. The cured varnish film, while maintaining the flexibility of the fabric, significantly improves dielectric properties and moisture resistance, reduces fiber shedding, and enhances the durability of the overall insulation system.

Key Performance Parameters

• Heat Resistance Rating: Class A (105°C)

• Thickness Range: 0.08 mm～0.20 mm

• Substrate: Cotton fabric

• Paint Type: Oil-modified insulating varnish

• Color: Yellow or tan

• Dielectric Strength: Approx. 2–5 kV (varies with thickness)

• Flexibility: Excellent, suitable for tight wrapping and complex coil structures

• Mechanical Strength: Meets general insulation and coil reinforcement requirements

Typical Applications

This product is suitable for various motors, transformers, electrical equipment, and other industrial assembly applications. It is particularly suitable for low- to medium-voltage insulation tasks requiring high flexibility, reliable insulation, and good formability, making it an ideal choice for electrical insulation and structural reinforcement.
