Electrical Insulation Epoxy Slot Wedges

Electrical epoxy slot wedges are rigid electrical insulation components used in motors and generators to secure winding coils inside the stator slots. Their main function is to hold the winding firmly in position, maintain slot structure stability and support reliable electrical insulation during operation.

In practical production, epoxy slot wedges are usually machined from epoxy fiberglass laminate sheets, such as:

• 3240 epoxy sheet

• FR4 epoxy fiberglass sheet

• G10 epoxy fiberglass sheet

• G11 epoxy fiberglass sheet

Because of their strong mechanical performance and reliable dielectric properties, epoxy slot wedges are widely used in motor manufacturing, generator assembly and electrical repair work.

What Are Epoxy Slot Wedges?

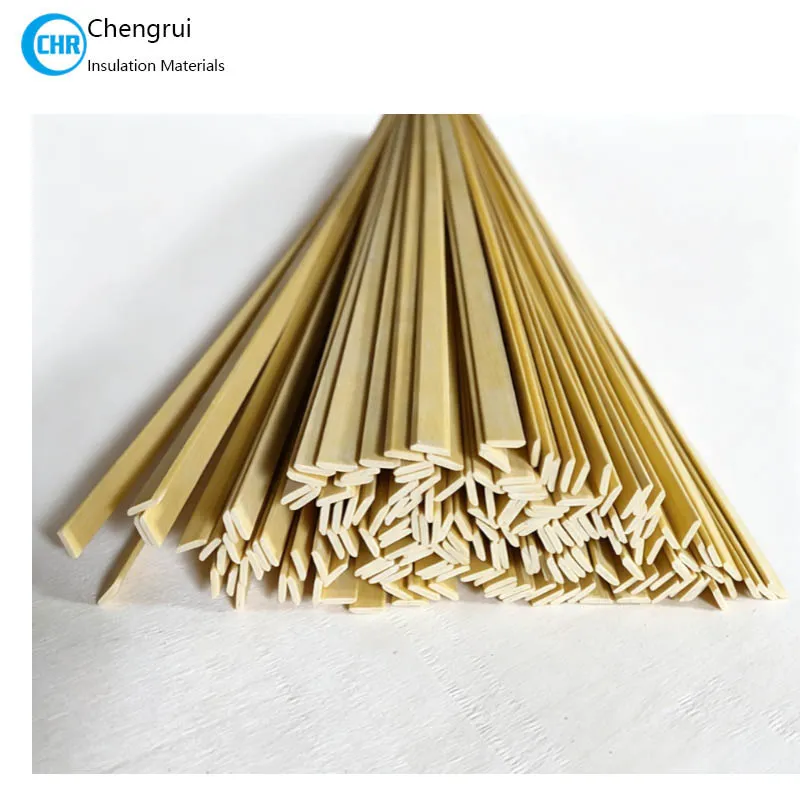

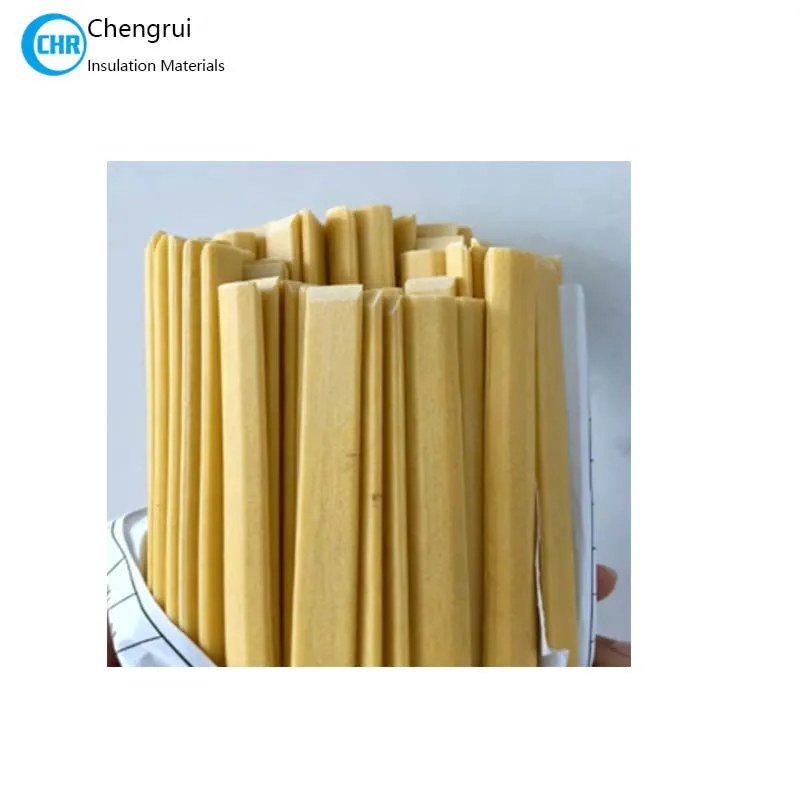

Epoxy slot wedges are long, narrow insulation strips processed into wedge form for installation in stator slots. They are used to lock and support winding conductors after the coils are inserted into the slot.

Compared with softer insulation materials, epoxy slot wedges provide:

• stronger mechanical retention

• better slot support

• higher rigidity

• stable insulation performance

• better resistance to deformation during long-term operation

For motor manufacturers, these parts are not only insulation accessories. They are structural insulation components that directly affect winding security and assembly quality.

Main Material Options

Epoxy slot wedges are generally machined from rigid epoxy laminate boards. Common material options include:

3240 Epoxy Sheet: A widely used glass cloth reinforced epoxy laminate for general electrical insulation applications.

FR4 Epoxy Fiberglass Sheet: A flame-retardant epoxy fiberglass laminate, suitable when flame resistance is required.

G10 Epoxy Fiberglass Sheet: A strong and stable glass epoxy material for electrical and mechanical insulation parts.

G11 Epoxy Fiberglass Sheet: A higher heat-resistant glass epoxy laminate used when better thermal endurance is required.

Main Functions in Motor and Generator Slots

1. Coil Retention

The wedge helps keep the winding conductors firmly inside the slot.

2. Slot Closure Support

It closes the slot opening and stabilizes the winding assembly.

3. Mechanical Protection

The wedge provides rigid support and helps reduce movement caused by vibration or magnetic force.

4. Electrical Insulation

It also functions as part of the slot insulation structure in motors and generators.

5. Assembly Stability

Consistent wedge size helps improve assembly efficiency and product consistency.

Key Features

1. High Mechanical Strength

Epoxy slot wedges are selected because they provide strong support inside the stator slot.

2. Good Electrical Insulation

The epoxy fiberglass base material offers reliable dielectric performance for electrical machines.

3. Good Dimensional Stability

The wedges keep their shape well during production, installation and service.

4. Good Machinability

They can be processed into different widths, thicknesses and profiles according to customer requirements.

Common Sizes

Common cross-section sizes include:

Thickness 3~20mm
Width: 5mm 7mm or customized

Typical standard lengths are:

1000 mm

2000 mm

Custom lengths are also available depending on slot design and production needs.

Typical Product Information

Typical Applications

Epoxy slot wedges are commonly used in:

electric motors

generators

motor stator slot structures

rewinding and repair projects

industrial motor manufacturing

generator insulation component systems

Chengrui Insulation supplies epoxy slot wedges for motor manufacturers, generator factories, rewinding workshops and insulation component distributors. We can machine slot wedges from 3240, FR4, G10 and G11 epoxy laminate sheets according to customer drawings, standard sizes or confirmed slot dimensions.

FAQ

Q1: What are epoxy slot wedges used for?

A: They are used in motors and generators to secure windings inside the stator slots and support the slot insulation structure.

Q2: What materials are epoxy slot wedges made from?

A: They are usually machined from rigid epoxy laminate sheets such as 3240, FR4, G10 or G11.

Q3: Can the wedges be customized?

A: Yes. Size, length and material grade can be customized according to drawing or slot requirement.

Q4: How do I choose between 3240, FR4, G10 and G11?

A: It depends on the motor's insulation class, flame-retardant requirement, mechanical demand and operating temperature.
