GPO-3 Sheet Applications: Where GPO3 Insulation Sheet Is Used
GPO-3 sheet is one of the most commonly used rigid insulation materials in electrical equipment.
It is not a general plastic sheet. It is a fiberglass-reinforced polyester laminate designed for electrical insulation, flame resistance, arc resistance and mechanical support. In many electrical assemblies, GPO-3 sheet works as both an insulating barrier and a structural part.
That is why it is widely used in switchgear, transformers, circuit breakers, busbar supports, electrical panels, motor components and custom machined insulation parts.
For buyers, the key question is not only “What is GPO-3 sheet?”
A more practical question is:
Where will the GPO-3 sheet be used, and what performance is required in that position?
This article explains the main applications of GPO-3 insulation sheet, how it compares with other insulation boards, and what information buyers should confirm before ordering.
For customers who need standard sheets or machined parts, Chengrui supplies GPO-3 insulation sheet in different thicknesses, standard sizes and customized processing options.

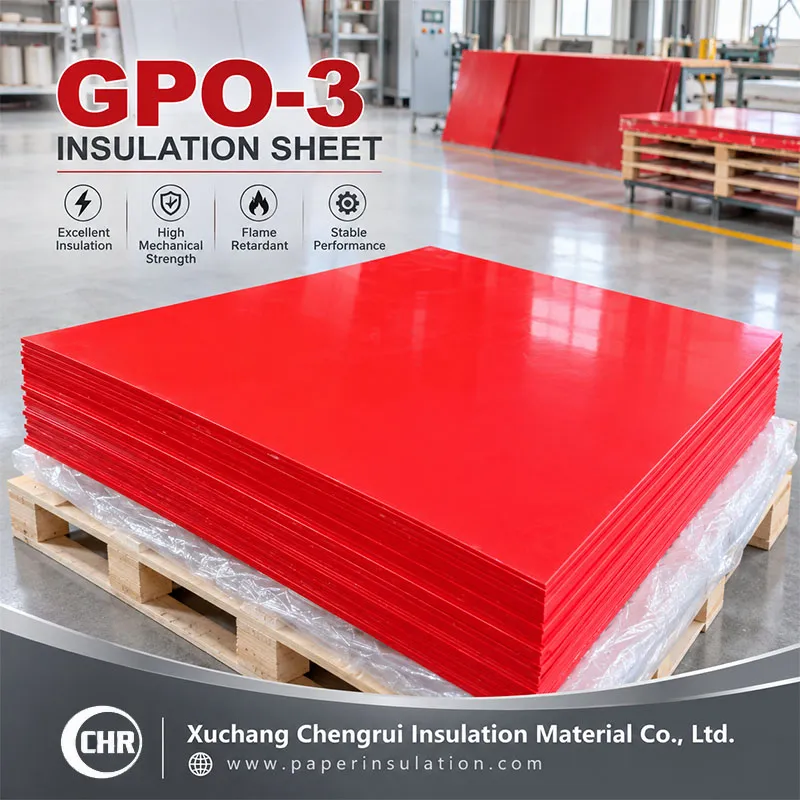

What Is GPO-3 Sheet?
GPO-3 sheet, also called GPO3 insulation sheet, GPO-3 board, GPO-3 fiberglass sheet or UPGM-203, is a rigid thermoset laminated insulation material.
It is made from glass fiber mat reinforced with unsaturated polyester resin. After impregnation and hot pressing, the material becomes a strong insulation sheet with good electrical, mechanical and thermal performance.
Common colors include white and brownish-red. The material is usually supplied in sheets, cut pieces or machined parts according to customer requirements.
Key Properties of GPO-3 Insulation Sheet
GPO-3 insulation sheet is used in electrical equipment because it combines insulation performance with structural strength.
| Property | Why It Matters |
| Electrical insulation | Helps separate conductive parts and reduce breakdown risk |
| Arc resistance | Important for switchgear, circuit breakers and electrical panels |
| Flame retardancy | Improves safety in electrical equipment structures |
| Mechanical strength | Supports busbars, barriers, plates and structural insulation parts |
| Dimensional stability | Helps machined parts keep shape and fitting accuracy |
| Heat resistance | Suitable for Class F insulation systems |
| Moisture resistance | Helps maintain stable performance in demanding environments |
| Machinability | Can be cut, drilled, punched or CNC machined |
For many buyers, GPO-3 is attractive because it is not only an insulation sheet. It can also be processed into practical parts used inside electrical equipment.
Main Applications of GPO-3 Sheet
1. GPO-3 Sheet for Switchgear
Switchgear is one of the most common application areas for GPO-3 sheet.
Inside switchgear, insulation parts must separate conductive components, support busbars and improve safety between phases. The material also needs to resist heat, electrical stress and possible arc conditions.
2. GPO-3 Sheet for Transformer Insulation Parts
GPO-3 sheet can also be used in transformer-related insulation structures, especially where rigid insulation and mechanical support are required.
In transformers, insulation parts may need to separate phases, support coil structures, protect winding ends or act as structural insulation plates. In some transformer designs, GPO-3 is selected because it combines flame resistance, dielectric strength and stable mechanical performance.
3. GPO-3 Sheet for Circuit Breakers
Circuit breakers need insulation materials that can withstand electrical stress and provide safe separation between conductive parts.
GPO-3 sheet is used in circuit breakers because of its arc resistance, flame retardancy and structural strength. It can be processed into barriers, partitions and insulating supports.
4. GPO-3 Sheet for Busbar Supports
Busbar systems require reliable insulation and mechanical support.
GPO-3 sheet can be cut or machined into busbar supports, insulating brackets, spacers and separation plates. It helps maintain electrical clearance while supporting the busbar structure.
5. GPO-3 Sheet for Electrical Panels
GPO-3 insulation sheet is widely used in electrical panels and low-voltage electrical equipment.
It can be used as a mounting plate, insulation panel, barrier, spacer or protective part. Compared with ordinary plastic sheets, GPO-3 offers better electrical insulation performance, flame resistance and dimensional stability.
6. GPO-3 Sheet for Motor and Generator Components
GPO-3 sheet can also be used in some motor and generator insulation structures.
It may be processed into parts such as slot wedges, gaskets, cover plates and other insulation components. These parts need good mechanical strength, stable thickness and reliable electrical insulation performance.
GPO-3 Sheet vs FR4 Sheet: How to Choose?
GPO-3 and FR4 sheet are both electrical insulation sheets, but they are not the same material.
GPO-3 is a glass mat reinforced unsaturated polyester laminate. FR4 is a glass cloth reinforced epoxy laminate. Both can be used for electrical insulation, but they are often selected for different reasons.
| ITEM | GPO-3 Sheet | FR4 Sheet |
| Resin System | Unsaturated polyester resin | Epoxy resin |
| Reinforcement | Glass mat | Glass cloth |
| Material Type | Polyester glass mat laminate | Epoxy glass cloth laminate |
| Thermal Class | F Class 155℃ | B Class 130℃ |
| Main Advantage | Arc resistance, flame resistance, cost-effective structural insulation | Higher mechanical strength and strong epoxy glass laminate performance |
GPO-3 Sheet vs Phenolic Sheet
Phenolic sheet is another common rigid insulation material. It is usually made from paper or cotton cloth impregnated with phenolic resin.
Compared with phenolic sheet, GPO-3 generally provides stronger performance for many electrical equipment structures, especially where flame resistance, arc resistance and glass-reinforced insulation are needed
| ITEM | GPO-3 Sheet | Phenolic Sheet |
| Base Material | Glass mat + polyester resin | Paper or cotton cloth + phenolic resin |
| Insulation Performance | Suitable for many electrical equipment structures | Suitable for general insulation and machined parts |
| Flame Resistance | Usually stronger in electrical equipment use | Depends on grade and formulation |
How to Choose the Right GPO-3 Insulation Sheet
When buying GPO-3 sheet, the material name alone is not enough.
Two customers may both ask for GPO-3 insulation sheet, but their real requirements can be completely different. One may need standard sheets for stock. Another may need CNC machined parts for switchgear. A third customer may need busbar support blocks with strict hole positions.
Common Specifications of GPO-3 Sheet
Different manufacturers may have different production ranges. The following specifications are commonly used for GPO-3 insulation sheet.
| ITEM | Common Specification |
| Product Name | GPO-3 Sheet / GPO3 Insulation Sheet |
| Also Known As | GPO-3 Board / GPO-3 Fiberglass Sheet / UPGM-203 |
| Material | Fiberglass-reinforced unsaturated polyester resin |
| Thermal Class | Class F 155℃ |
| Thickness | 1.0–100mm or customized |
| Sheet Size | 1020×1220mm, 1020×2040mm or customized |
| Color | White, brownish-red |
| Supply Form | Sheet, cut piece, machined part |
| Applications | Switchgear, transformers, circuit breakers, busbar supports, electrical panels |
Why Buy GPO-3 Sheet from Chengrui?
For electrical equipment manufacturers, sourcing GPO-3 sheet is not only about sheet price.
A reliable supplier should understand the application position, required thickness, machining method, packing requirement and export process.
Chengrui supplies GPO-3 insulation sheet for switchgear, transformers, circuit breakers, busbar supports, electrical panels and custom machined insulation parts.
Besides GPO-3 sheet, Chengrui also supplies related electrical insulation materials, including FR4, G10/ G11 sheet, phenolic laminated sheet, polyester film, DMD, NMN, NHN, transformer pressboard and other insulation components.
For customers who need GPO-3 sheet together with other electrical insulation materials, Chengrui can help reduce sourcing time and simplify communication.
FAQ
Q1: What is GPO-3 sheet?
A: GPO-3 sheet is a fiberglass-reinforced unsaturated polyester laminate used as a rigid electrical insulation material. It is commonly used in switchgear, transformers, circuit breakers, busbar supports and electrical panels.
Q2: What is GPO3 insulation sheet used for?
A: GPO3 insulation sheet is used for phase barriers, busbar supports, safety baffles, coil end insulation, circuit breaker partitions, electrical panel parts, motor components and custom machined insulation parts.
Q3: What is the difference between GPO-3 and FR4?
A: GPO-3 is a glass mat reinforced polyester laminate, while FR4 is a glass cloth reinforced epoxy laminate. GPO-3 is often selected for arc-resistant and flame-retardant electrical structural parts. FR4 is often selected when higher mechanical strength and epoxy glass laminate performance are required.
Q4: What thicknesses of GPO-3 sheet are available?
A: Common thicknesses can range from 1.0mm to 100mm, depending on production capability and order requirements. Customized thickness may also be available.
Conclusion
GPO-3 sheet is a practical rigid insulation material for electrical equipment. It is widely used in switchgear, transformers, circuit breakers, busbar supports, electrical panels, motor components and custom machined insulation parts.
Its value comes from the combination of electrical insulation, arc resistance, flame resistance, mechanical support and machinability.
When choosing GPO3 insulation sheet, buyers should not only confirm the material name. The application position, thickness, drawing, tolerance, electrical requirement and packing method are all important.
Chengrui supplies GPO-3 insulation sheet in standard sizes, customized thicknesses and machined parts for global customers. If you need GPO-3 sheet for switchgear, transformer, busbar support or custom electrical insulation parts, please visit our GPO-3 insulation sheet product page or contact Chengrui for quotation.
