Dacron Mylar Dacron Insulation Paper Complete Guide

In the electrical insulation industry, Dacron Mylar Dacron insulation paper is better known as DMD insulation paper.

It is one of the most commonly used flexible composite insulation materials in motors, generators and general electrical equipment. Buyers usually ask about it when they need a material that is stronger and more stable than ordinary insulation paper, but still practical to cut, punch and process in daily production.

The name itself explains the structure:

Dacron

Mylar

Dacron

That is why it is called Dacron Mylar Dacron, or DMD for short.

This article explains what the material is, how it is made, where it is used, and what buyers should check before ordering.

What Is Dacron Mylar Dacron Insulation Paper?

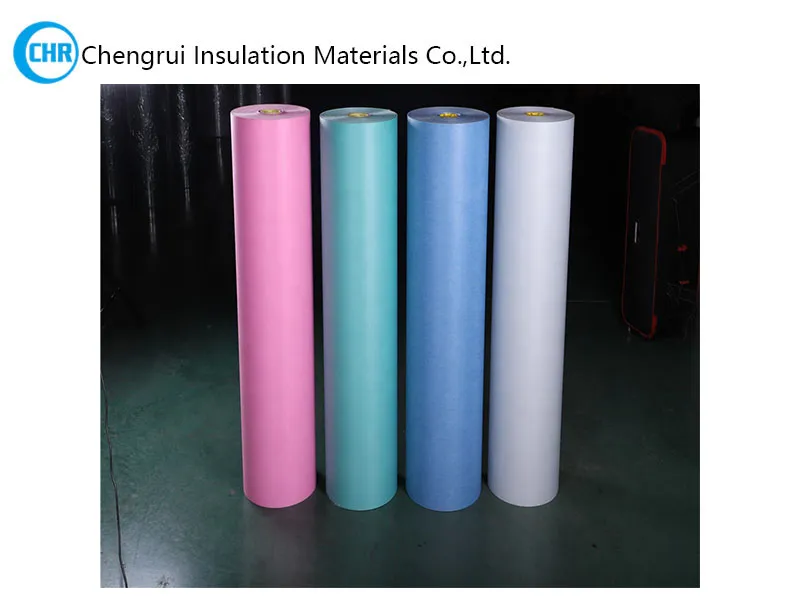

Dacron Mylar Dacron insulation paper is a three-layer flexible laminated insulation material.

Its structure is:

• outer layer: Dacron nonwoven polyester

• middle layer: Mylar polyester film

• outer layer: Dacron nonwoven polyester

In practical terms, it combines a polyester film core with soft nonwoven polyester surfaces on both sides.

This structure gives the material two important advantages:

• the Mylar film provides the main dielectric barrier

• the Dacron layers improve flexibility, toughness and handling performance

That is why DMD is widely used in electrical manufacturing. It gives better mechanical support than plain insulation paper, while still remaining easy to process.

Raw Materials and Material Structure

A proper understanding of DMD starts with the raw materials.

Dacron Layer

Dacron is a polyester nonwoven material. In DMD, it gives the surface:

• better flexibility

• better tear resistance

• better absorption of adhesive in lamination

• smoother processing in slot insulation and phase insulation

Mylar Layer

Mylar is polyester film. In DMD, it acts as the main insulating film layer and provides:

• dielectric strength

• dimensional stability

• better electrical separation

• support for consistent thickness

When these three layers are laminated together, the result is a material that is more practical than plain insulation paper in many production environments.

Main Properties of Dacron Mylar Dacron Insulation Paper

DMD remains popular because it offers a balanced set of properties.

Good Electrical Insulation: The polyester film core gives the material stable dielectric performance for many standard insulation systems.

Good Mechanical Strength: The nonwoven outer layers make the material less fragile than plain film and easier to handle during workshop processing.

Good Flexibility: DMD can be bent, folded, inserted and formed into insulation parts without the stiffness problems sometimes seen in simpler materials.

Good Processing Performance: It is suitable for cutting, punching and shaping into slot liners, phase separators and other insulation components.

Practical Cost-Performance: For many manufacturers, DMD is a cost-effective solution compared with higher-end aramid-based laminates.

Typical Uses of Dacron Mylar Dacron Insulation Paper

Motor Slot Insulation

This is one of the most common applications. DMD is widely used as slot liner material in motors.

Phase Insulation

It is also used between phases in winding systems where flexible laminated insulation is needed.

Interlayer Insulation

In some electrical assemblies, DMD is used as interlayer insulation to provide electrical separation and mechanical support.

Generator Insulation

DMD is commonly used in generators where a reliable laminated insulation material is needed for regular industrial duty.

Transformer and Coil Applications

In some transformer and coil applications, DMD is used where flexible composite insulation is preferred over plain paper.

General Electrical Equipment

It is also used in electrical apparatus, coils and fabricated insulation parts.

Thermal Class and Common Grades

Not all DMD insulation paper is the same. Buyers should always confirm the thermal class before placing an order.

Class B DMD: Usually used in systems where 130°C thermal class is sufficient.

Class F DMD: Used in higher-grade systems where 155°C performance is required.

In actual purchasing, Class F DMD is one of the most common requests for motor winding insulation because it gives better thermal performance while still staying within a practical cost range.

Dacron Mylar Dacron Insulation Paper vs Ordinary Insulation Paper

A common mistake is to think DMD is just another ordinary insulation paper.

It is not.

Ordinary insulation paper

usually single-layer

simpler structure

lower mechanical support

suitable for lighter or simpler uses

Dacron Mylar Dacron insulation paper

three-layer laminated structure

stronger mechanical support

better dimensional stability

better suited to slot, phase and formed insulation parts

DMD vs NMN: What Buyers Should Know

Customers often compare DMD with NMN composite insulation paper.

The difference is mainly in the outer layers.

DMD: polyester nonwoven / polyester film / polyester nonwoven

NMN: Nomex / polyester film / Nomex

In practical use:

DMD is often selected for mainstream industrial motor insulation where cost and processability matter

NMN is more often selected when the application needs a higher-grade laminate with aramid outer layers

How to Choose the Right DMD Insulation Paper

When choosing Dacron Mylar Dacron insulation paper, buyers should confirm the following points.

1. Actual Application

Is it for slot insulation, phase insulation, interlayer insulation or a transformer/coil application?

2. Thermal Class

Does the system require Class B or Class F?

3. Thickness

Different applications need different thicknesses depending on slot size, insulation build and mechanical requirement.

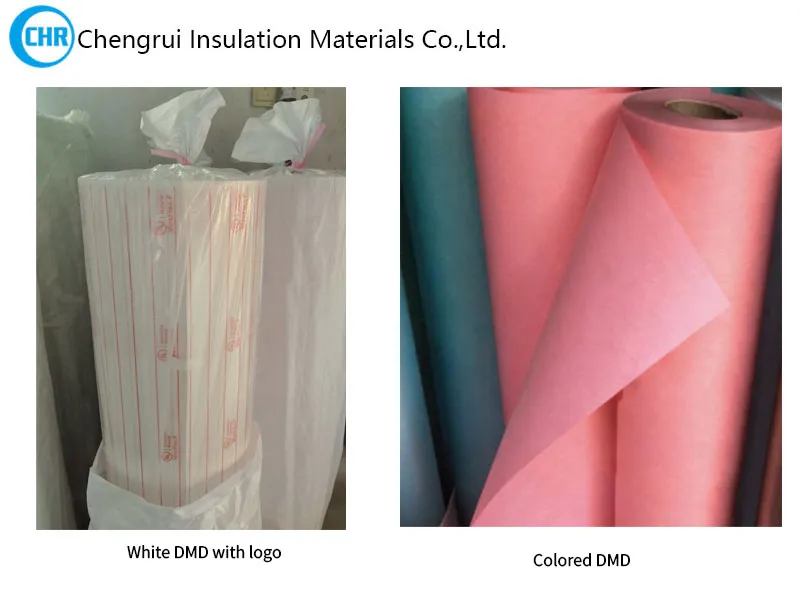

4. Supply Form

Do you need rolls, sheets or die-cut parts?

5. Production Method

If the material will be punched or formed, processing performance becomes especially important.

That is why DMD is generally more economical, while NMN is usually positioned higher in the insulation system.

FAQ

Q:What is Dacron Mylar Dacron insulation paper?

A: It is a three-layer laminated insulation material made of Dacron nonwoven polyester, Mylar polyester film and Dacron nonwoven polyester.

Q:What is DMD insulation paper used for?

A:It is mainly used for motor slot insulation, phase insulation, interlayer insulation, generator insulation and other electrical insulation applications.

Q:Is Dacron Mylar Dacron insulation paper suitable for motors?

A:Yes. It is widely used in motors, especially for slot liners and phase insulation.

Q:What is the difference between DMD and ordinary insulation paper?

A: DMD has a laminated three-layer structure, while ordinary insulation paper is usually a simpler single-layer material.

If you are looking for reliable Dacron Mylar Dacron insulation paper for motors, generators, transformers or electrical equipment, we can help you choose the right grade, thickness and supply format.
