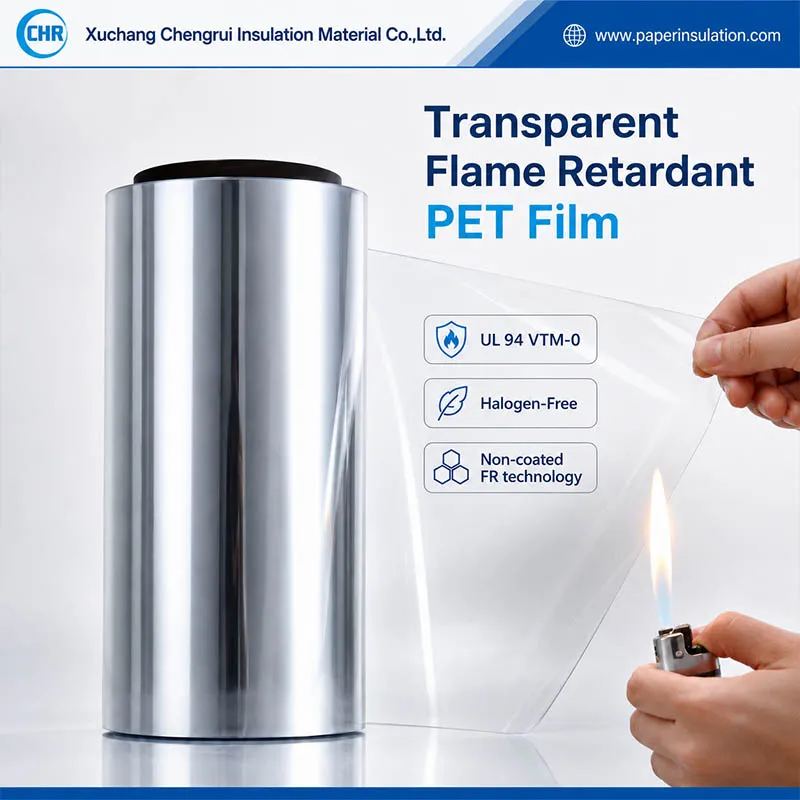

Halogen-Free Flame Retardant PET Film Industrial Applications

Flame retardant PET film is selected when a standard transparent polyester film is not safe enough for the application.

For electrical insulation, electronics, automotive protection, HVAC systems and building-related materials, buyers often need a film that provides not only transparency and mechanical strength, but also reliable flame retardant performance.

Halogen-free flame retardant PET film is designed for this purpose.

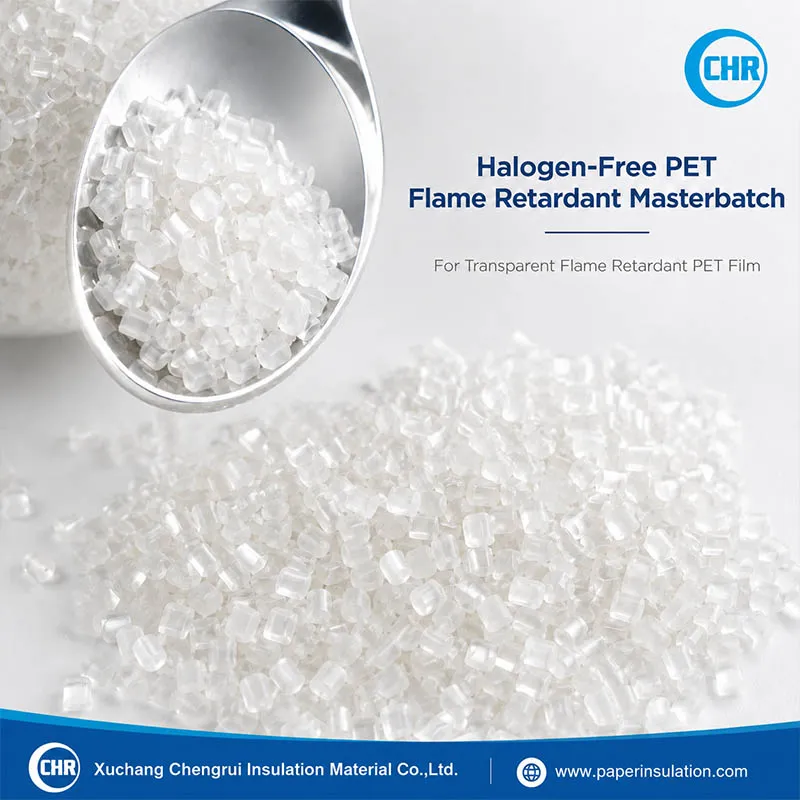

It is made by adding environmentally friendly halogen-free flame retardant masterbatch into the PET raw material before film production. This means the flame retardant performance comes from the film material itself, not from a surface coating.

For buyers, this is an important difference.

A non-coated flame retardant PET film can provide stable flame retardant performance while keeping the advantages of PET film, including transparency, dimensional stability, mechanical strength and good processing performance.

For product specifications, available thickness and roll supply, you can visit our product page: UL 94 VTM-0 flame retardant PET film.

What Makes This PET Film Different?

Many PET films look similar from the outside.

A standard transparent PET film and a flame retardant PET film may both be clear, flexible and easy to process. However, their performance in fire-related applications is different.

The key difference is the material formulation.

This flame retardant PET film is produced with halogen-free flame retardant masterbatch during film manufacturing. It is not a coated flame retardant film.

That means:

• the flame retardant additive is inside the PET material;

• the surface remains clear and smooth;

• the film keeps good transparency;

• there is no extra flame retardant coating layer;

• the material can be used for coating, laminating, printing and converting.

This structure makes it suitable for applications where both fire safety and clear appearance are required.

Key Technical Specifications

The following data is based on common flame retardant transparent PET film specifications.

Final specifications should be confirmed according to the customer's application, thickness, width, flame retardant requirement and processing method.

UL 94 VTM-0 Flame Retardant Performance

For thin plastic films, UL 94 VTM-0 is an important flame retardant rating.

A PET film with UL 94 VTM-0 flame retardant performance is designed to reduce flame spread and support self-extinguishing behavior under specified test conditions.

This is one of the biggest differences between flame retardant PET film and ordinary transparent PET film.

In applications involving electrical components, insulation layers, electronic protection films or flame-retardant packaging materials, this rating can help reduce fire risk and improve product safety.

When buyers compare different PET films, they should not only ask for thickness and transparency. They should also confirm:

• flame retardant grade;

• halogen-free requirement;

• whether the film is coated or internally flame retardant;

• test report availability;

• application temperature and processing method.

Main Advantages of Transparent Flame Retardant PET Film

1. High Flame Retardant Performance

The film is designed to reach UL 94 VTM-0 flame retardant performance.

It is suitable for applications where ordinary PET film cannot meet flame safety requirements.

2. Halogen-Free and Environmentally Friendly

The film uses halogen-free flame retardant technology.

This makes it more suitable for electronics, electrical insulation and export-oriented industrial applications with environmental requirements.

3. High Transparency and Low Haze

With light transmittance of ≥88% and haze of ≤3%, the film keeps a clear and transparent appearance.

It can be used in applications where visual inspection, surface appearance or optical clarity is important.

4. Smooth Surface Quality

The film has good flatness and surface appearance.

It is designed to avoid common surface problems such as crystal points, precipitation and orange peel texture.

Applications of Halogen-Free Flame Retardant PET Film

1. Electrical and Electronic Insulation: Transparent flame retardant PET film can be used as an insulation layer in electronic products and electrical components. It provides electrical insulation while adding flame retardant safety.
2.  Packaging Protective Layers: For packaging materials that require flame retardant protection, PET film can be used as a protective layer.

3. Automotive Protective Films: Transparent flame retardant PET film can be used in protective film and insulation-related automotive applications.
4. HVAC and Insulation Barrier Applications: Flame retardant PET film can be used as a protective barrier over insulation materials such as glass wool or rock wool.
5. 5G, Fiber Optic and Industrial Film Applications: The film can also be used in 5G network fiber wrapping, printing, advertising films, decorative films, screen protection and other industrial applications where flame retardant performance is required.

FAQ

Q1: Is flame retardant PET film the same as ordinary PET film?

A: No. Ordinary PET film has good transparency and mechanical strength, but it does not provide the same flame retardant performance. Flame retardant PET film is modified with halogen-free flame retardant masterbatch to achieve UL 94 VTM-0 performance.

Q2: Is this flame retardant PET film coated?

A: No. This film is an internal additive type flame retardant PET film. The flame retardant masterbatch is added into the PET raw material before film production. It is not a surface-coated flame retardant film.

Q3: What is the flame retardant grade of this PET film?

A: The flame retardant grade is UL 94 VTM-0.

Halogen-free flame retardant PET film is a practical material for applications that require transparency, flame retardant performance, environmental safety and reliable processing performance.

Compared with ordinary PET film, it provides UL 94 VTM-0 flame retardant performance while maintaining the original advantages of PET, including mechanical strength, chemical stability and clear appearance.

Chengrui supplies transparent flame retardant PET film in different thicknesses, widths, roll lengths and customized colors according to customer requirements.

For more product details, please visit our product page: transparent flame retardant PET film.
