DPC Paper Chinese Supplier for Global Transformer Projects
In the competitive landscape of transformer manufacturing, the role of a DPC Paper Chinese supplier has evolved from providing low-cost alternatives to delivering high-performance, precision-engineered insulation solutions. In the electrical insulation industry, DPC paper (Double Paper Covered paper) is identical to what is widely known as insulation cable kraft paper. with different specifications like 10no 14no 16no etc. They refer to the exact same high-purity material optimized for conductor wrapping and cable insulation.As a professional exporter based in Xuchang, Henan—China's premier electrical insulation hub—Chengrui Insulation specializes in the large-scale supply of DPC paper to major transformer factories in Bangladesh, Southeast Asia, Middle East and South America.
Technical Specifications
A world-class electrical insulation material supplier must provide consistent physical and chemical parameters. Our DPC paper is manufactured from 100% unbleached sulfate wood pulp, ensuring optimal long-fiber structural binding without any corrosive chemical residues.
| Technical Parameter | Standard Range (Low Density) | Standard Range (Medium Density) | Standard Range (High Density) |
| Apparent Density | 0.75 to 0.85 g/cm³ | 0.9 to 1.05 g/cm³ | 1.10 to 1.25 g/cm³ |
| Moisture Content | ≤ 8.0% | ≤ 8.0% | ≤ 7.0% |
| Tensile Strength (MD) | ≥ 75 N/15mm | ≥ 95 N/15mm | ≥ 110 N/15mm |
| Conductivity of Aqueous Extract | ≤4.0mS/m | ≤4.0mS/m | ≤4.0mS/m |
What Exactly is DPC Paper for Transformers?

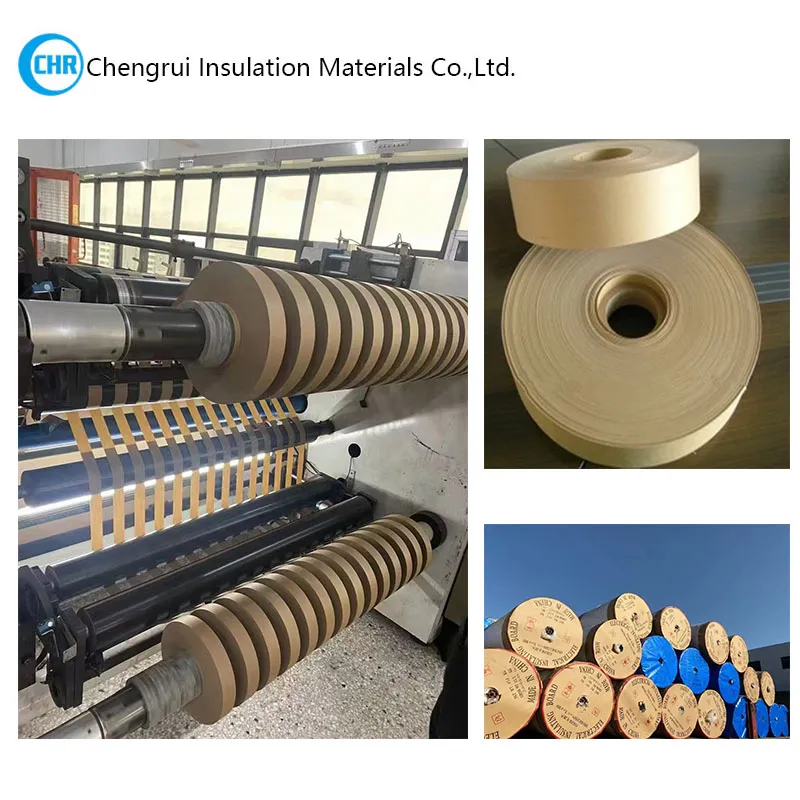

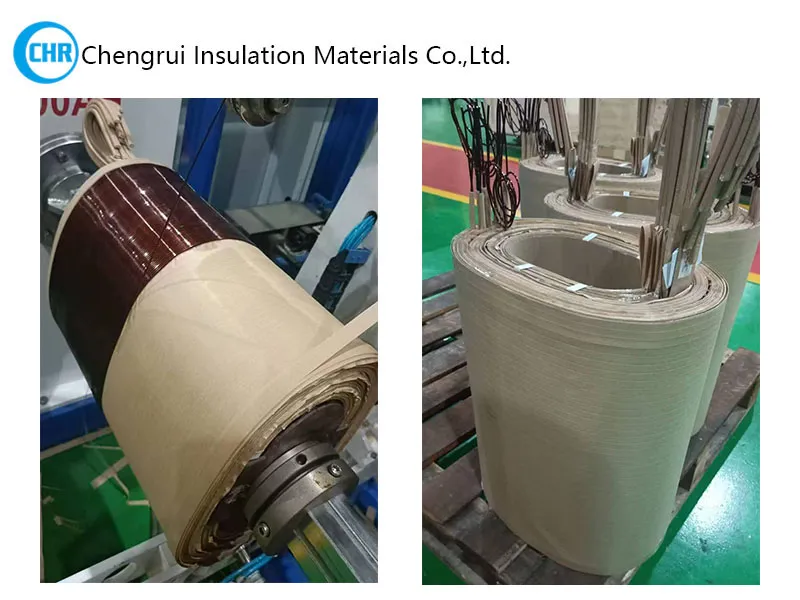

DPC paper/ Insulation cable kraft paper is a specialized Electrical Grade Kraft Paper made from 100% unbleached sulfate wood pulp. It is characterized by its high chemical purity, exceptional mechanical strength, and superior oil absorption capabilities.When used in transformer windings, it is slit into narrow tapes and wrapped in multiple layers (Double Paper Covered) around the conductor to provide:
Dielectric Strength: Preventing electrical breakdown between winding turns.
Thermal Stability: Maintaining integrity under continuous operating temperatures 105℃ for standard kraft.
Mechanical Protection: Withstanding the physical stress during the high-speed winding process.
Why Chinese Supplier for DPC Paper
1. Compliance with International Standards
A top-tier DPC Paper Chinese supplier operates under strict adherence to IEC 60554 standards. This ensures that the paper is made from 100% unbleached sulfate wood pulp, maintaining the low ash content and neutral pH required to prevent chemical degradation within transformer oil.
2. Strategic Cost-Performance Ratio
Compared to traditional European brands like Weidmann or DuPont, Chinese suppliers offer a superior cost-performance ratio for large-scale B2B projects. This allows manufacturers in Mexico, Brazil, and Chile to maintain high-quality insulation standards while optimizing their raw material budgets for large government tenders.
3. Logistical Expertise for Tropical Climates
Shipping to regions like Indonesia, Vietnam, or Bangladesh presents significant moisture risks. As an experienced exporter, we utilize multi-layer, vacuum-sealed packaging to protect every 20ft container shipment from humidity and sea-salt corrosion during transit.
Beyond Paper: A Full-Spectrum Insulation Partner
Working with a specialized DPC Paper Chinese supplier like Chengrui means access to a comprehensive portfolio of transformer insulation materials:
Diamond Dotted Paper (DDP): For bonding and oil passage.
Insulation Pressboard: For heavy-duty structural support.
Crepe Paper Tubes: For flexible winding insulation.
DMD & NMN Flexible Laminates: For motor and dry-type transformer applications.
FAQ: Sourcing DPC Paper from China
Q: What is the standard MOQ for DPC Paper?
A: To provide the most competitive wholesale pricing and ensure shipping safety, our standard MOQ is 500~1000kg. This scale is ideal for large-scale transformer factories looking to stabilize their supply chain.
Q: How do you handle sample requests?
A: We provide free A4-sized test samples for verified businesses. For specific slit widths and larger sample quantities, we typically charge a nominal $50$ sample fee, which can be credited back upon your first container order.
Q: Can you customize densities for specific voltage requirements?
A: Yes. As a technical-focused supplier, we can adjust the grammage and density of the base kraft paper to meet specific dielectric strength requirements for high-voltage projects in the Middle East and ASEAN regions.
Partner with Chengrui Insulation Today
Elevate your transformer manufacturing with the reliability of a leading DPC Paper Chinese supplier. Our team in Xuchang is ready to provide the technical documentation and wholesale quotations your procurement team needs for your next 20ft container shipment.
Official Website: www.paperinsulation.com
Regional Focus: Serving Bangladesh, Southeast Asia, Middle East and Latin America.
Product Expertise: DPC Paper, DDP, Thermally
