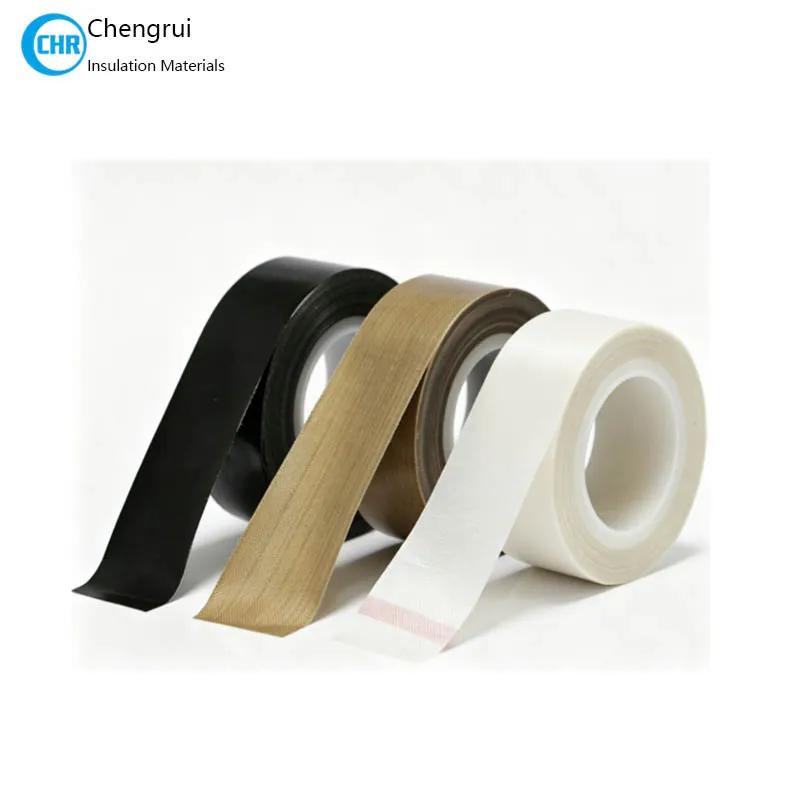

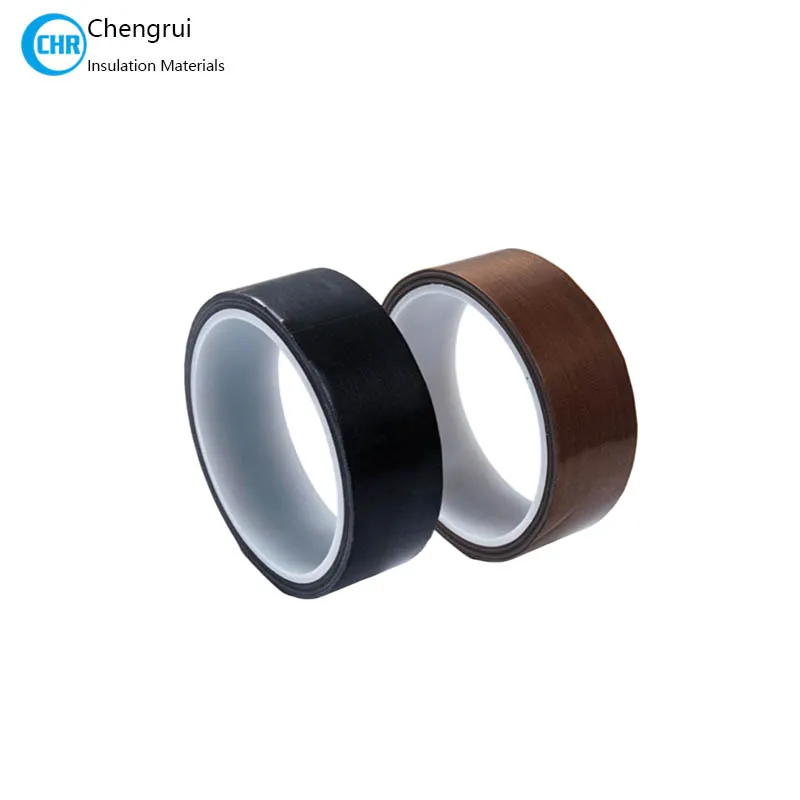

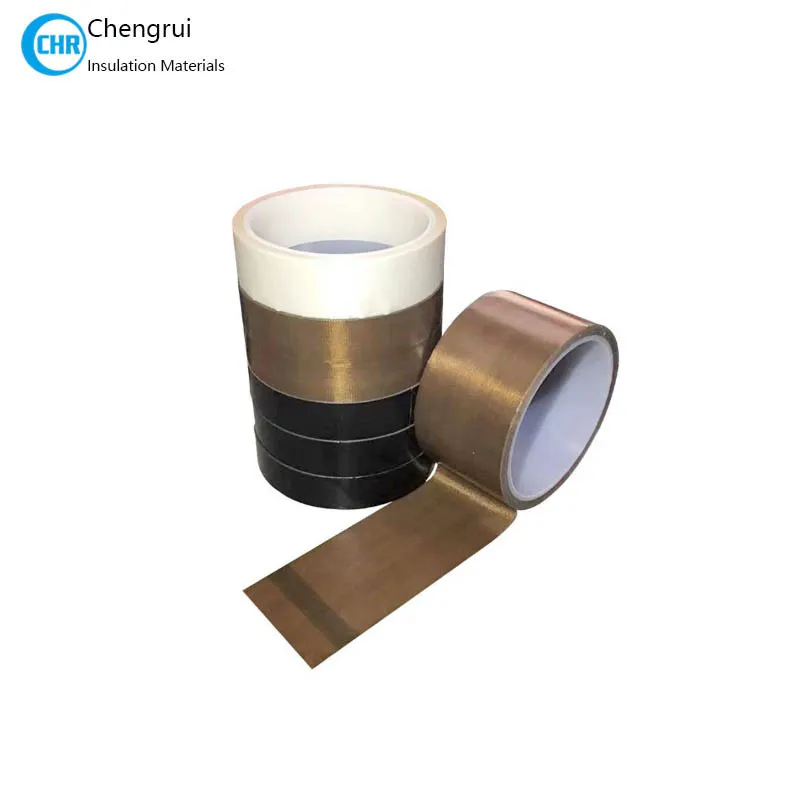

PTFE Coated Fiberglass Adhesive Tape

PTFE Coated Fiberglass Adhesive Tape

PTFE coated fiberglass adhesive tape is a high-temperature insulation and release tape made from fiberglass fabric coated with PTFE and backed with pressure-sensitive silicone adhesive.

It combines three important functions in one material:

• the strength of fiberglass fabric

• the non-stick surface of PTFE

• the easy installation of adhesive backing

This tape is widely used in heat sealing machines, packaging equipment, plastic film sealing, electrical insulation, composite processing and industrial surface protection.

Compared with ordinary fiberglass adhesive tape, PTFE coated fiberglass adhesive tape has a smoother surface, better non-stick performance and stronger resistance to heat, chemicals and molten plastic adhesion.

What Is PTFE Coated Fiberglass Adhesive Tape?

PTFE coated fiberglass adhesive tape is produced by coating woven fiberglass cloth with PTFE resin, then applying silicone pressure-sensitive adhesive on one side.

The fiberglass cloth provides dimensional stability and tensile strength.

The PTFE coating provides a low-friction, non-stick and chemical-resistant surface.

The silicone adhesive allows the tape to be applied easily to metal surfaces, machine parts, rollers, heating bars and sealing jaws.

A release liner is usually added to protect the adhesive before use.

Product Structure

PTFE coated fiberglass adhesive tape usually has the following structure:

Fiberglass Fabric +  PTFE Coating + Silicone Adhesive

Main Features:
1. High Temperature Resistance: PTFE coated fiberglass adhesive tape can work under high-temperature conditions(Up to 260°C). It is commonly used around heating bars, sealing jaws and other heated equipment surfaces.
2. Strong Fiberglass Reinforcement: The fiberglass fabric base gives the tape better strength than pure PTFE film tape. It provides better tensile strength and better dimensional stability.
3. Silicone Adhesive for High-Temperature Use : The adhesive layer is usually silicone pressure-sensitive adhesive. It also provides good adhesion to metal surfaces and can be removed more easily in many industrial applications.

Applications of PTFE Fiberglass Tape:

PTFE coated fiberglass adhesive tape is used in many high-temperature and non-stick applications.

1. Heat Sealing Machines: The tape is applied to sealing bars, heating plates or sealing jaws to prevent plastic film from sticking to the metal surface.

2. Packaging Equipment:  PTFE fiberglass adhesive tape is used for bag sealing machines, continuous sealing machines, vacuum packaging machines,shrink packaging equipment etc

3. Plastic Film and Laminating Machines:  The tape can be used where plastic film, adhesive film or composite materials pass over heated or friction surfaces.

4. Electrical Insulation: Can be used as wire insulation protection, electrical parts wrapping, heat-resistant insulation surfaces

Typical Specifications

PTFE Coated Fiberglass Tape vs Pure PTFE Tape
PTFE coated fiberglass adhesive tape is also different from pure PTFE adhesive tape.
Pure PTFE tape base material is PTFE film.
PTFE Coated Fiberglass Tape base material is Fiberglass fabric coated with PTFE.

FAQ

Q1: What is PTFE coated fiberglass adhesive tape used for?

A: PTFE coated fiberglass adhesive tape is mainly used for heat sealing machines, packaging equipment, non-stick surface protection, electrical insulation and high-temperature industrial applications.

Q2: What is the base material of PTFE fiberglass tape?

A: The base material is woven fiberglass fabric coated with PTFE resin.

Q3: What adhesive is used on PTFE coated fiberglass adhesive tape?

A: It usually uses silicone pressure-sensitive adhesive because silicone adhesive can withstand higher temperatures.

Chengrui Insulation supplies PTFE coated fiberglass adhesive tape for industrial insulation, heat sealing, packaging and high-temperature surface protection applications.
Our team can help customers choose the suitable tape thickness, width and adhesive structure according to working temperature, machine surface and application requirement.
