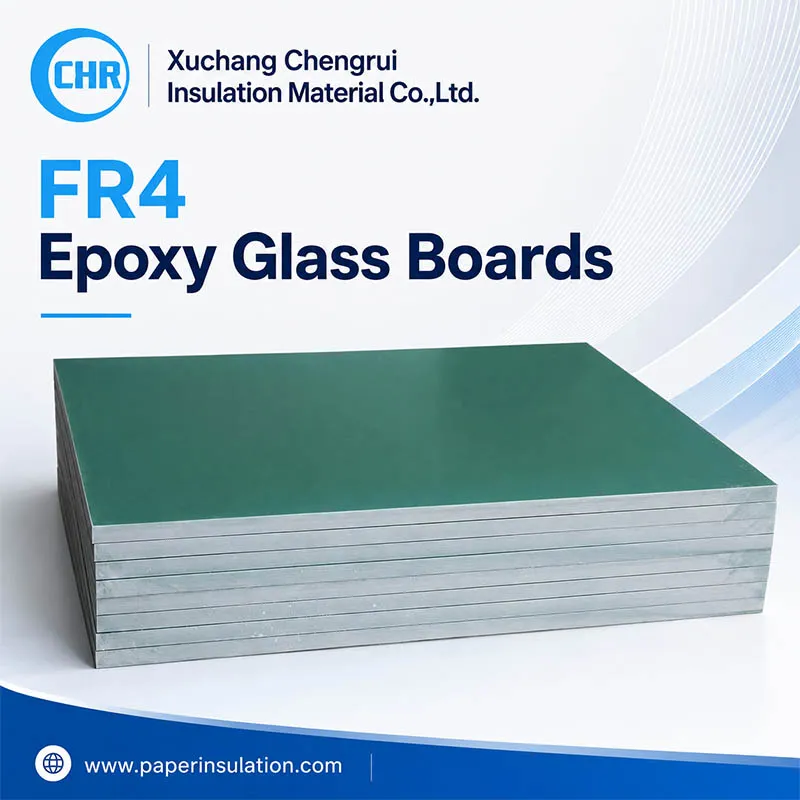

FR4 Epoxy Glass Boards for Transformer Manufacturers in UAE

A transformer-related electrical equipment customer from the UAE contacted Chengrui for FR4 epoxy glass boards used in transformer support applications.

During the discussion, the main thicknesses requested were 10mm, 12mm and 16mm FR4 boards. These thicknesses are commonly used for support plates, terminal boards, spacers, insulation pads and custom machined parts where the material must remain stable after cutting, drilling or CNC machining.

For this type of project, the key point is not only the FR4 sheet price. The buyer also needs to confirm the exact application, board thickness, hole position, machining tolerance, edge finish, packing method and delivery arrangement to the UAE.

Customer Background

The customer is based in the UAE and works with transformer-related electrical equipment and insulation components.

In their regular projects, they use rigid insulation materials for transformer support structures, terminal connection parts, spacers and mounting insulation pieces. Some parts are simple rectangular plates, while others need drilling, slotting or machining according to drawings.

Before confirming the order, the customer wanted to check whether Chengrui could support:

FR4 epoxy glass boards: 10mm 12mm 16mm

Product Supplied

FR4 epoxy glass board is different from flexible transformer insulation paper. It is a rigid laminated insulation material used where electrical insulation and mechanical strength are required at the same time.

FR4 vs Phenolic Board for Transformer Support Parts
The customer also needed to understand when FR4 should be used instead of phenolic board.

Phenolic board is still a practical choice for many lower-cost insulation parts.

FR4 is more suitable when the part needs better mechanical strength, moisture resistance, flame-retardant performance and dimensional stability.

FR4 vs G10 and G11

FR4, G10 and G11 are all epoxy glass laminated sheets, but they are not exactly the same.

For many transformer support applications in the UAE, FR4 is a practical material because it combines flame retardancy, insulation performance, mechanical strength and processability.

If the application requires higher temperature resistance, G11 may also be considered.

Customer Evaluation

After receiving the FR4 boards and parts, the customer mainly checked the material from a practical assembly point of view.

The key points were:

whether the thickness matched the requirement;

whether the board surface was clean and flat;

whether the cut edges were acceptable;

whether the drilled holes matched the drawing;

whether the parts could be installed smoothly;

whether the packing protected the material during shipment.

For transformer support applications, customer feedback is usually based on whether the parts can be used smoothly in production or maintenance work.

In this project, the customer continued discussing future FR4 requirements with Chengrui, including different thicknesses and possible machined insulation parts for similar transformer and electrical equipment applications.

Related Products

Chengrui also supplies related laminated insulation materials and transformer insulation parts, including:

These materials can be selected according to electrical insulation, mechanical strength, heat resistance, moisture resistance, flame-retardant requirement and machining needs.

Conclusion

This UAE case shows how FR4 epoxy glass boards can be used by transformer manufacturers and electrical equipment customers for rigid insulation support parts.

The customer needed FR4 insulation boards for support plates, terminal boards, spacers, insulation pads and machined components. Chengrui supported the project by confirming thickness, application position, machining requirements, quality points and export packing.

For UAE transformer manufacturers, repair workshops and electrical equipment suppliers, FR4 is a practical choice when the insulation part needs mechanical strength, flame retardancy, moisture resistance and stable machining performance.

Chengrui supplies FR4 epoxy glass boards, G10/G11, 3240 sheets and custom machined insulation parts for transformer and electrical equipment applications.
